| Storage Specifications | |
|---|---|
| Application | Client PCs, Game Consoles |
| Capacity | 2,000GB (1GB = 1 Billion bytes by IDEMA) |
| Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
| Dimension (WxHxD) | 80 x 22 x 2.3 mm |
| Weight | Max 9.0g |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung 2GB Low Power DDR4 SDRAM |
| Random Read (QD32) | Up to 1,400,000 IOPS |
| Random Write (QD32) | Up to 1,550,000 IOPS |
| Random Read (QD1) | Up to 22,000 IOPS |
| Random Write (QD1) | Up to 80,000 IOPS |

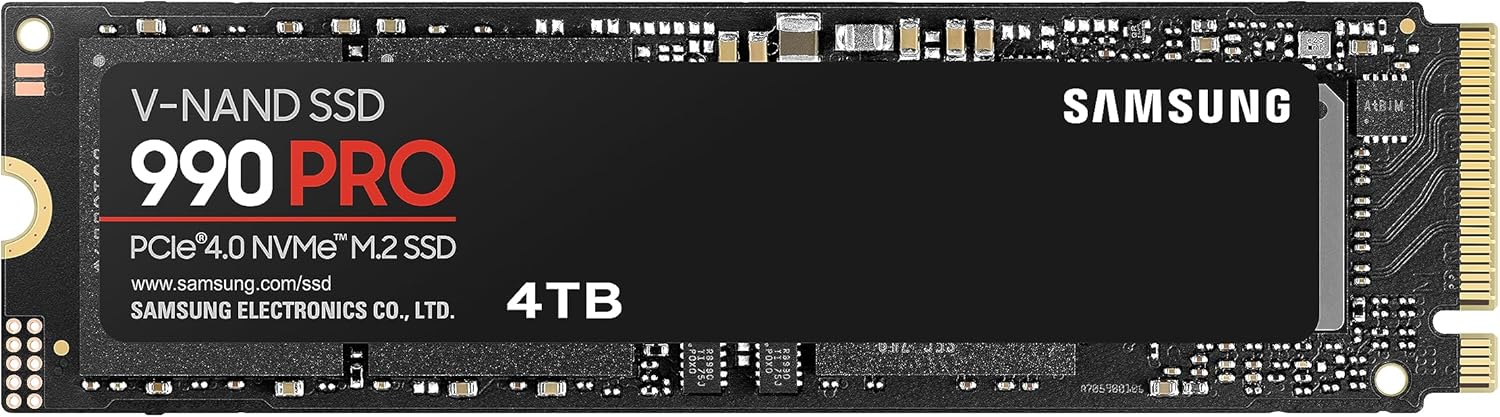

| Product Type | 990 PRO |

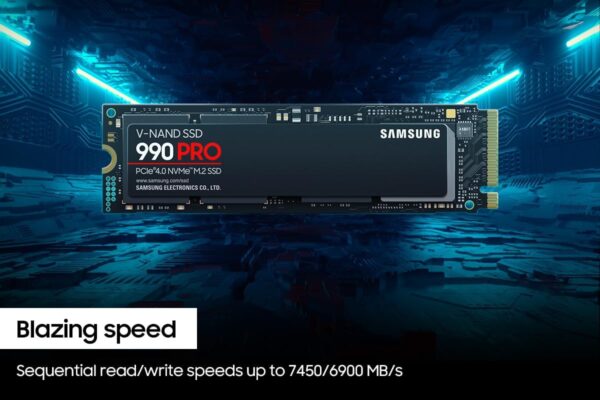

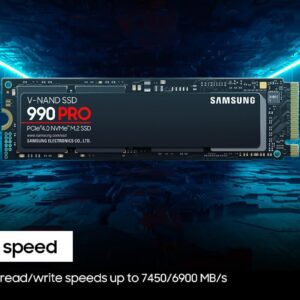

| Sequential Read Speed | Up to 7,450 MB/s |
| Sequential Write Speed | Up to 6,900 MB/s |
| Cache Memory | Samsung 2GB Low Power DDR4 SDRAM |
| Trim Support | Supported |
| S.M.A.R.T. Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| WWN Support | Not supported |
| Device Sleep Mode | Yes |
| Average Power Consumption | 5.5 W (Avg), 8.5 W (Max, Burst) |
| Power Consumption (Idle) | Max. 55 mW |
| Reliability (MTBF) | 1.5 Million Hours |
| Operating Temperature | 0 – 70 ℃ |
| Shock Resistance | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | M.2 (2280) |
| Software | Magician Software for SSD management |
| Encryption Support | AES 256-bit, TCG/Opal, IEEE1667 |
| Allowable Voltage | 3.3 V ± 5% |
| Warranty | 3 Years |
