GIGABYTE B850I AORUS PRO: AM5, AMD B850, DDR5 8600+(OC), PCIe 5.0, Dual M.2, 2.5GbE LAN, Wi-Fi 7 ITX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | GIGABYTE |
| Category | AORUS PRO Series ITX Motherboard (Performance Gaming) |
| Model | B850I AORUS PRO (rev. 1.0) |
| Form Factor | Mini-ITX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ Series Processors (9000 / 8000 / 7000 Series) |
| Memory Support | 2 x DDR5 UDIMM slots, Max. 96GB Supports DDR5 OC up to 8600 MT/s Dual Channel Memory Architecture, Supports AMD EXPO™ Memory Modules |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, with PCIe UD Slot for enhanced durability) |
| Storage Support | Total 2 x M.2 slots: 1 x Front PCIe 5.0 x4 M.2 Slot (type 2280/2260) – CPU connected 1 x Back PCIe 4.0 x4 M.2 Slot (type 2280/2260) – Chipset connected 2 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

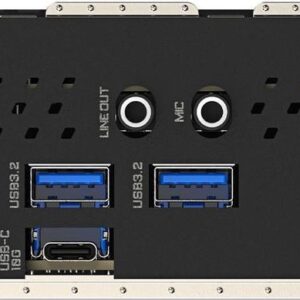

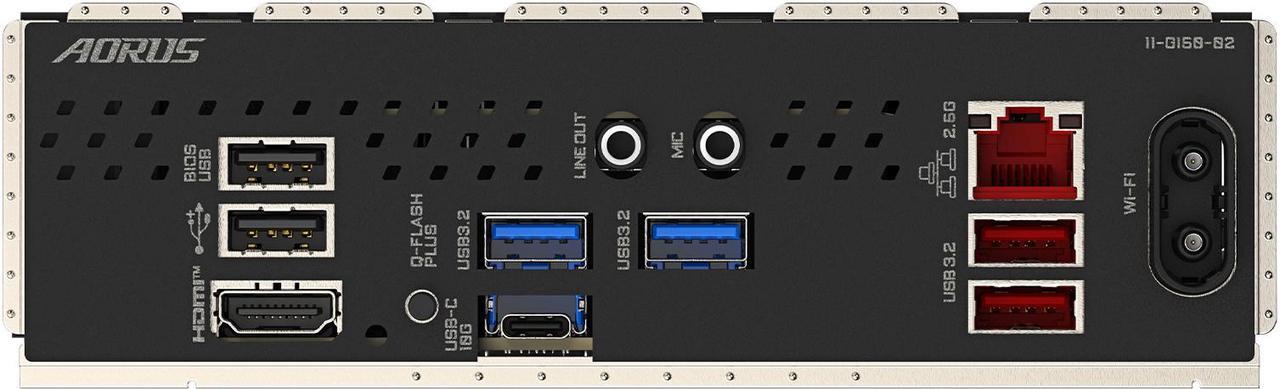

| USB Ports (Rear I/O) | 1 x USB4 (USB 3.2 Gen 2×2 compatible) Type-C® port (supports up to 40Gb/s) 2 x USB 3.2 Gen 2 Type-A ports (10Gbps) 2 x USB 3.2 Gen 1 Type-A ports (5Gbps) 2 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB Type-C® header (USB 3.2 Gen 2×2, 20Gbps) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 5Gbps ports) 1 x USB 2.0/1.1 header (supports 2 additional USB 2.0/1.1 ports) |
| Network | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wi-Fi 7 (802.11be) Solution with Directional Ultra-high gain Antenna Bluetooth® v5.4 *Wi-Fi 7 and Bluetooth 5.4 features require Windows 11 version 24H2. |
| Audio | Realtek® ALC1220 Codec 7.1-Channel High Definition Audio, High-End Audio Capacitors |
| Power Delivery | 8+2+1 Digital VRM Design |
| Cooling Features | VRM Thermal Armor Advanced, 5 W/mk Thermal Pads Integrated I/O Shield heatsink, M.2 Thermal Guard Ext. Smart Fan 6 (Multiple fan headers with intelligent control) |
| Special Features | X3D Turbo Mode, D5 Bionic Corsa Technology WIFI EZ-Plug, M.2 EZ-Latch Plus, M.2 EZ-Latch Click EZ-Latch Un-Install Angle, PCIe EZ-Latch Plus EZ-Debug Zone, Debug LEDs, Q-Flash Plus RGB FUSION, Direct Touch Heatpipe |
| Display Output | 1 x HDMI™ port (Supports max. 4K@60Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit (Assumed) |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Clips, User Manual, Quick Installation Guide.. |

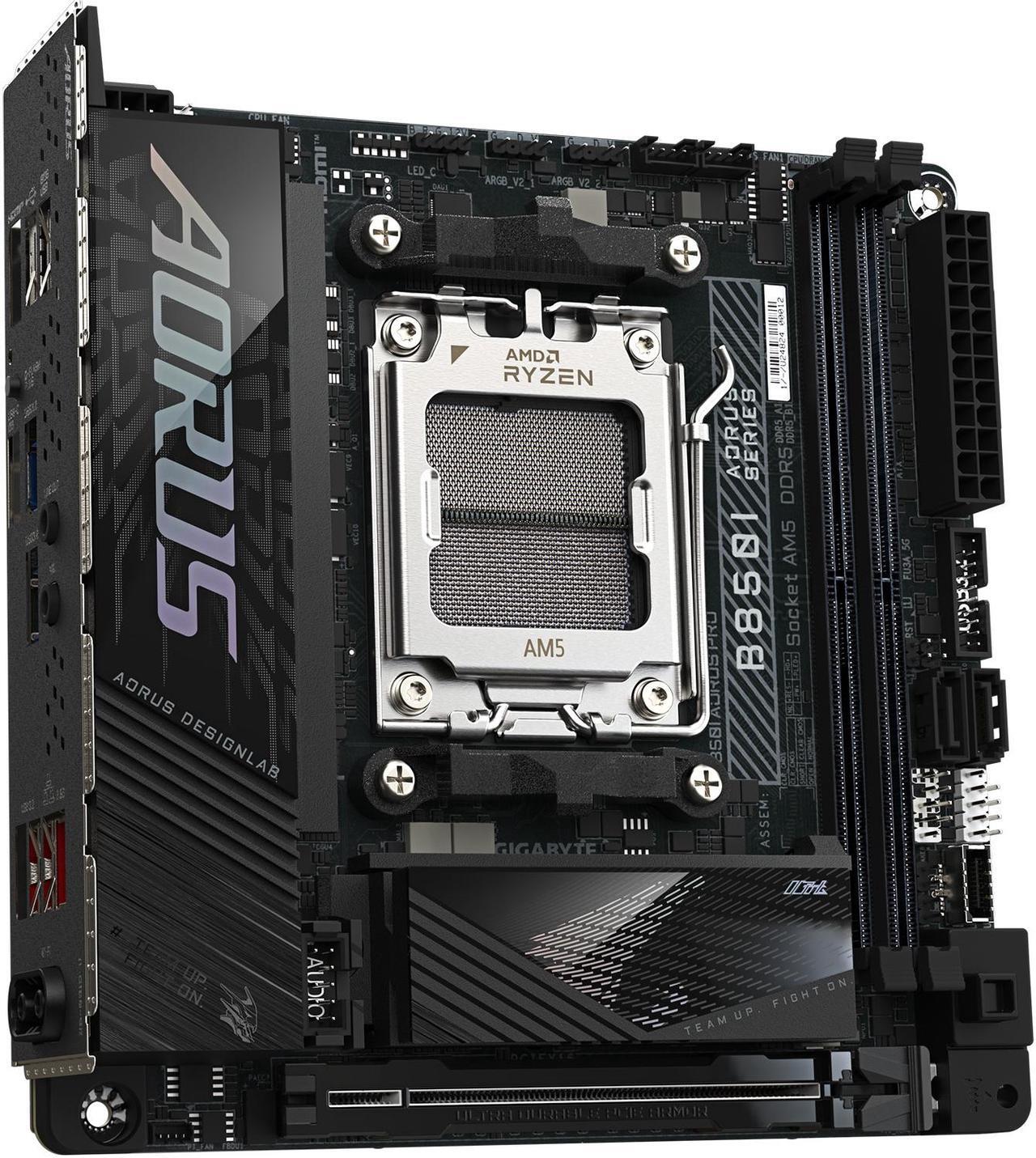

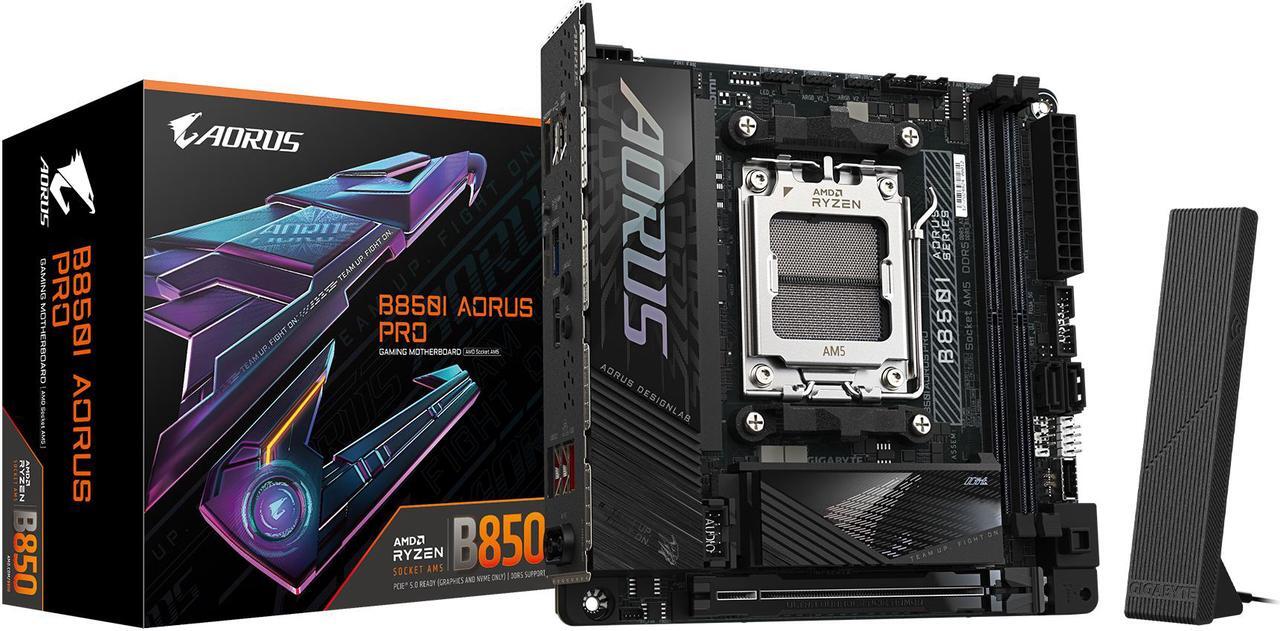

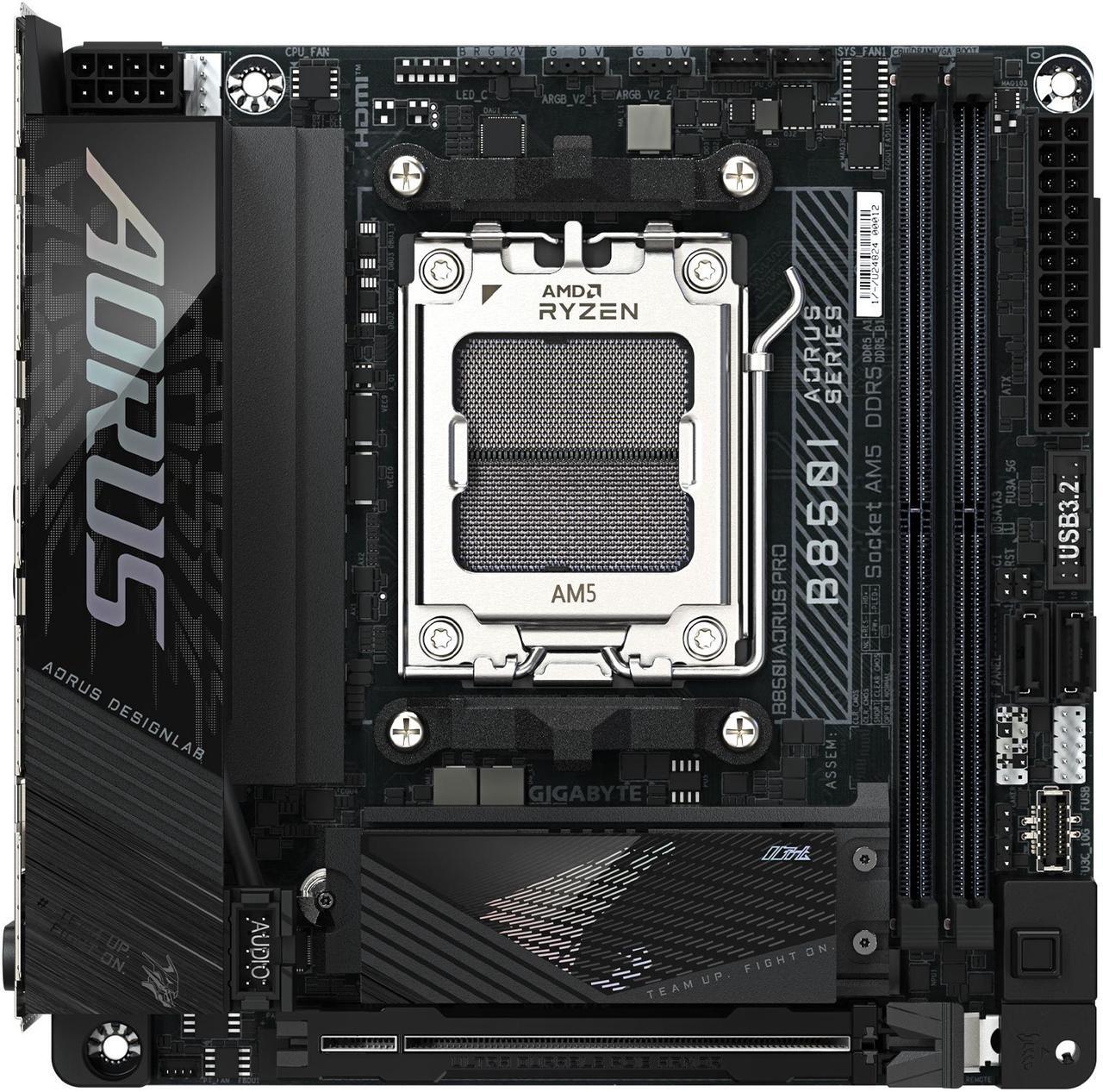

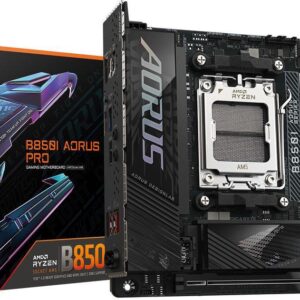

| The **GIGABYTE B850I AORUS PRO (rev. 1.0)** is a high-performance Mini-ITX motherboard designed for compact gaming builds and small form factor PCs. Leveraging the **AMD B850 chipset** for **AM5 socket** processors, it offers robust support for AMD Ryzen™ Series Processors.
Despite its small size, this board features an impressive **8+2+1 Digital VRM Design** for stable power delivery, supporting **DDR5 memory with overclocked speeds up to 8600 MT/s**. It boasts a single **PCIe 5.0 x16 slot** with enhanced durability (PCIe UD Slot) for the latest graphics cards. Storage includes **two M.2 slots** – one front PCIe 5.0 x4 and one back PCIe 4.0 x4 – providing ample high-speed NVMe options, along with two SATA 6Gb/s ports. Connectivity is top-tier with a **2.5GbE LAN controller** for fast wired networking and integrated **Wi-Fi 7** with a directional high-gain antenna for cutting-edge wireless performance, complete with Bluetooth 5.4. The rear I/O is packed with a **USB4 Type-C® port (supporting up to 40Gb/s)**, along with multiple USB 3.2 Gen 2 and Gen 1 ports. User-friendly features like EZ-Latch Plus and EZ-Latch Click simplify component installation, making the B850I AORUS PRO an excellent choice for a powerful, compact system without compromise. |
|
