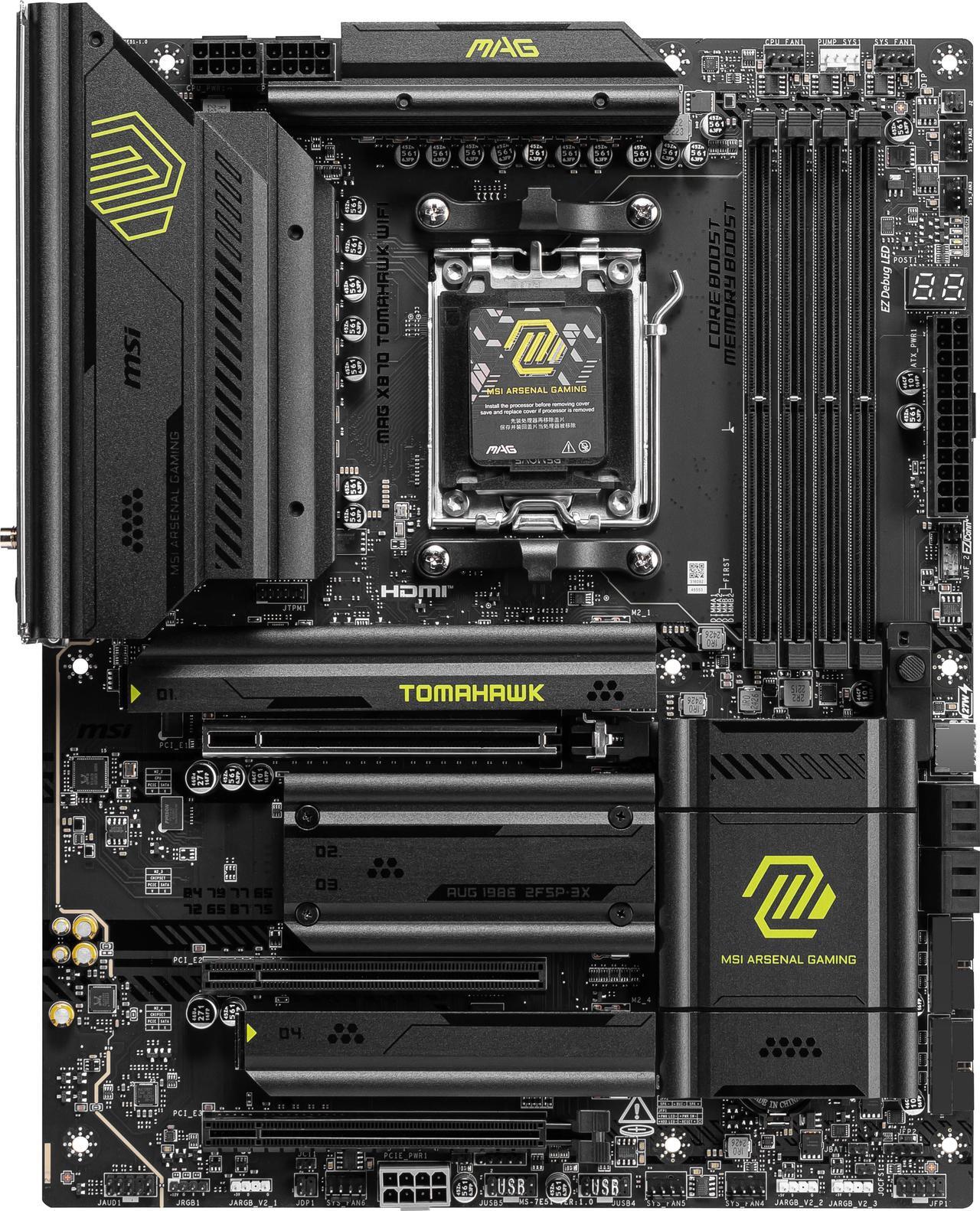

MSI MAG X870 TOMAHAWK WIFI – AM5 ATX Motherboard for Ryzen, with PCIe 5.0, Wi-Fi 7 & 5GbE LAN
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | MSI |
| Category | Motherboard |
| Model | MAG X870 TOMAHAWK WIFI |
| Form Factor | ATX |
| Chipset | AMD X870 |
| Technical Specifications | |
| CPU Socket | AM5 |
| Memory Support | DDR5 up to 8400+ MHz (OC) |
| Max Memory Capacity | 256 GB |
| Memory Slots | 4× DIMM, Dual Channel |
| Expansion Slots | 1× PCIe 5.0 x16 (from CPU), 1× PCIe 4.0 x4 (from Chipset), 1× PCIe 3.0 x1 (from Chipset) |
| Storage Support | 4× SATA 6Gb/s, 4× M.2 (2× PCIe 5.0 from CPU, 2× PCIe 4.0 from Chipset) |
| RAID Support | RAID 0/1/10 for SATA & M.2 NVMe |

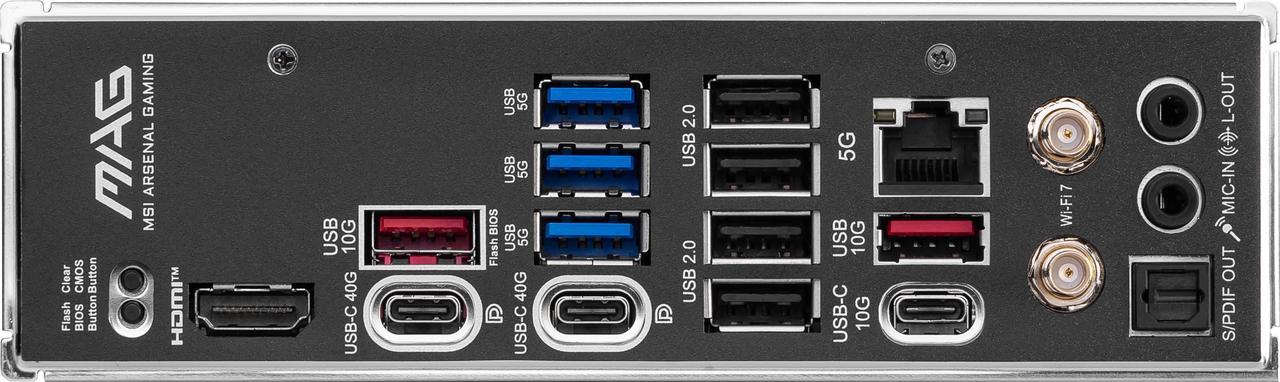

| USB Ports | Dual USB4 Type-C (40Gbps), USB-C 3.2 Gen 2×2 (Front), USB 3.2 Gen2/Gen1, USB 2.0 |
| Network | Realtek 5GbE LAN, Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC4080 Codec, 7.1-Channel HD Audio |
| Power Phases | 14+2+1 Duet Rail Power System (80A SPS) |
| Cooling Features | Extended Heatsink Design, Double-sided M.2 Shield Frozr (for Gen5 M.2), 8-layer PCB |
| Display Output | 1× HDMI 2.1, 2× Type-C DisplayPort (via USB4) |
| RGB Lighting | ARGB + RGB headers, Mystic Light |
| Operating System Support | Windows 11 64-bit |

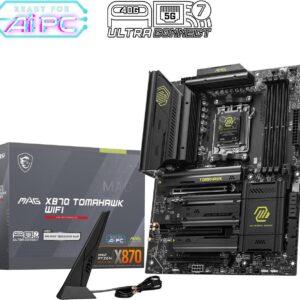

| Bundled Accessories | Wi-Fi Antenna, EZ M.2 Clip II, EZ PCIe Release, SATA Cables |
The MSI MAG X870 TOMAHAWK WIFI is a robust ATX motherboard for the AM5 platform, engineered to support AMD Ryzen 9000, 8000, and 7000 Series desktop processors. It provides a strong foundation for gaming and productivity with its 14+2+1 Duet Rail Power System featuring 80A Smart Power Stages, ensuring stable power delivery for demanding components.
This motherboard prioritizes essential high-speed features, including one **PCIe 5.0 x16 slot** for the graphics card and **two PCIe 5.0 M.2 slots** for the fastest NVMe SSDs, complemented by two PCIe 4.0 M.2 slots. Connectivity is excellent with onboard **5GbE LAN** and the latest **Wi-Fi 7** technology, providing lightning-fast and stable wired and wireless networking. Dual **USB4 Type-C ports** offer versatile high-bandwidth connections for external devices and display output. The X870 TOMAHAWK WIFI strikes a balance between performance, features, and value, making it a solid choice for a modern AMD build.
