ASRock Z790 PRO RS WiFi: ATX Motherboard for Intel 12th/13th/14th Gen CPUs with DDR5, 4x M.2 Slots (1x PCIe 4.0), PCIe 5.0 x16, USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Dragon 2.5GbE LAN
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | Pro RS Series ATX Motherboard |
| Model | Z790 PRO RS WiFi |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Chipset | Intel® Z790 Express Chipset |
| Technical Specifications | |
| CPU Socket | LGA 1700 for Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors |
| Memory Support | 4 x DIMM slots, Max. 128GB, DDR5 Supports up to 7200+(OC) MHz Dual Channel Memory Architecture, Intel® Extreme Memory Profile (XMP) 3.0 |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, with Steel Slot Gen5) 1 x PCIe 4.0 x16 slot (from Chipset, supports x4 mode) 2 x PCIe 3.0 x1 slots (from Chipset) |
| Storage Support | Total 4 x M.2 slots: 1 x Hyper M.2 (PCIe 4.0 x4, type 2280) – CPU connected 3 x Hyper M.2 (PCIe 4.0 x4, type 2280) – Chipset connected 8 x SATA 6Gb/s ports Supports RAID 0, 1, 5, 10 for NVMe and SATA storage devices |

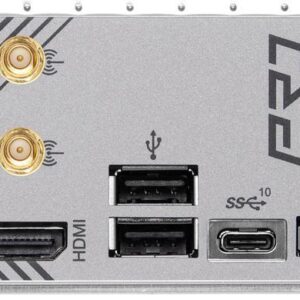

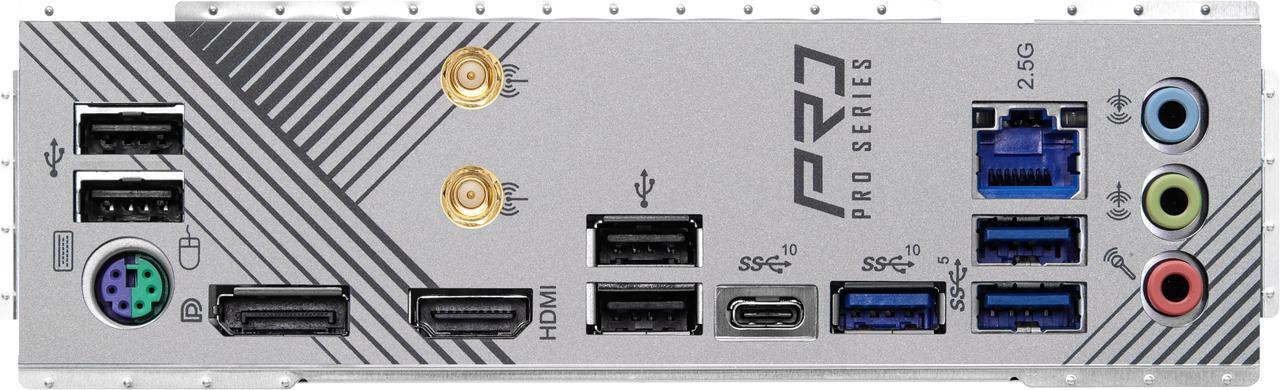

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2×2 Type-C® port (20Gbps) 1 x USB 3.2 Gen 2 Type-A port (10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 2 x USB 2.0/1.1 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2×2 Type-C® header (20Gbps) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | 1 x Dragon RTL8125BG 2.5GbE LAN chip Intel® Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax) 2×2 with MU-MIMO (2.4/5/6GHz tri-band) Bluetooth® v5.2 |
| Audio | Realtek® ALC897 Audio Codec 7.1-Channel High Definition Audio Nahimic Audio Supports S/PDIF Out |
| Power Delivery | 16+1+1 Power Phase Design Dr.MOS for VCore+GT 8-pin + 4-pin ATX 12V power connectors |
| Cooling Features | Large Aluminum Alloy Heatsinks Full Coverage M.2 Heatsink Multiple Temperature Sensors FANtastic Tuning & Auto Detect Fan |
| Special Features | ASRock Steel Slot Gen5 (for PCIe 5.0 x16 slot) ASRock Auto Driver Installer Flashback BIOS Button Polychrome RGB Pre-installed I/O Shield |
| Display Output | 1 x HDMI™ port (Supports max. 4096×2160@60Hz) 1 x DisplayPort™ 1.4 (Supports max. 5120×2880@120Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |

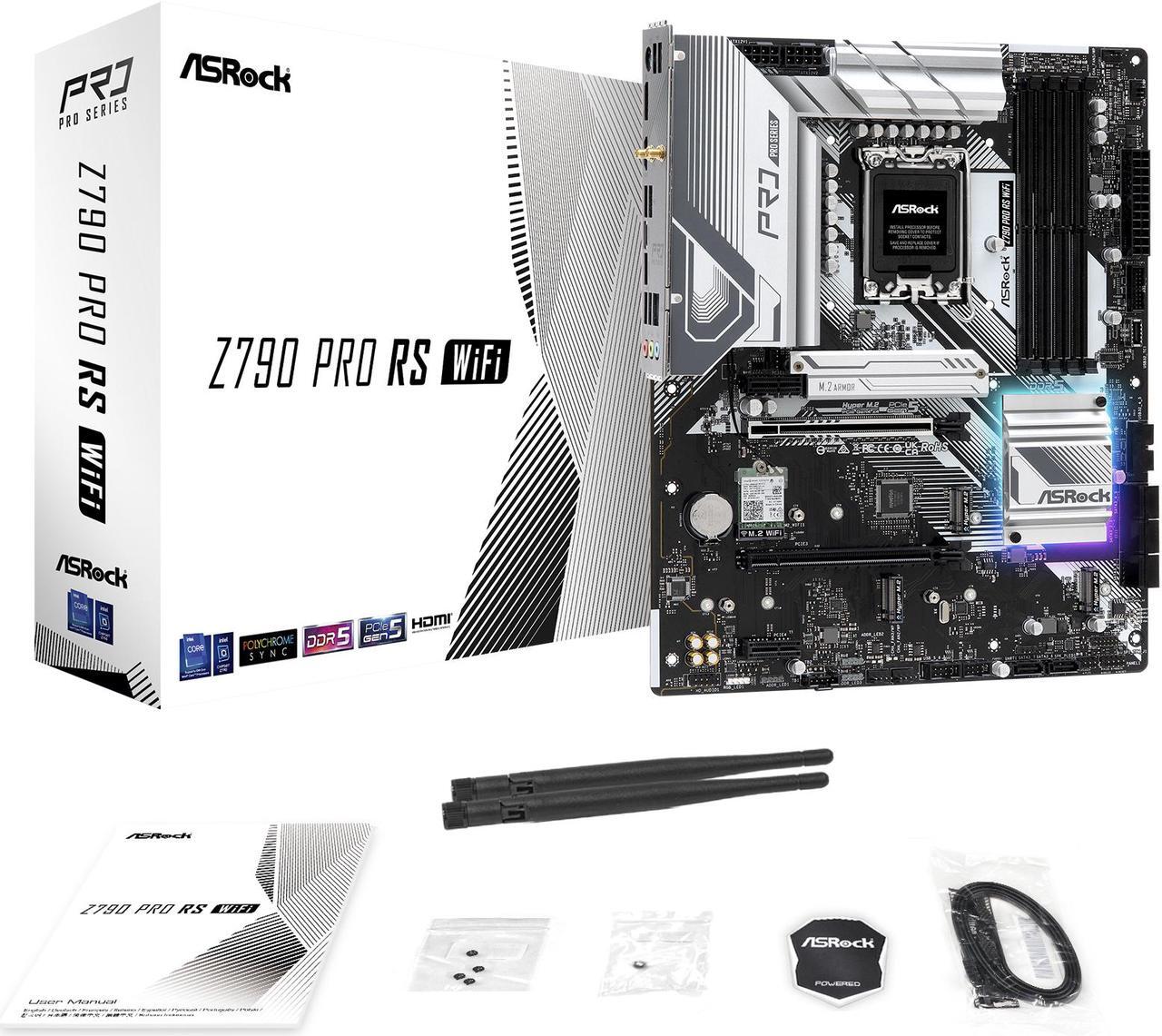

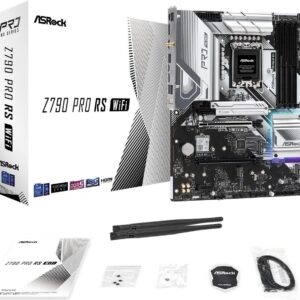

| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws, Software CD, Documentation. (Contents may vary by region). |

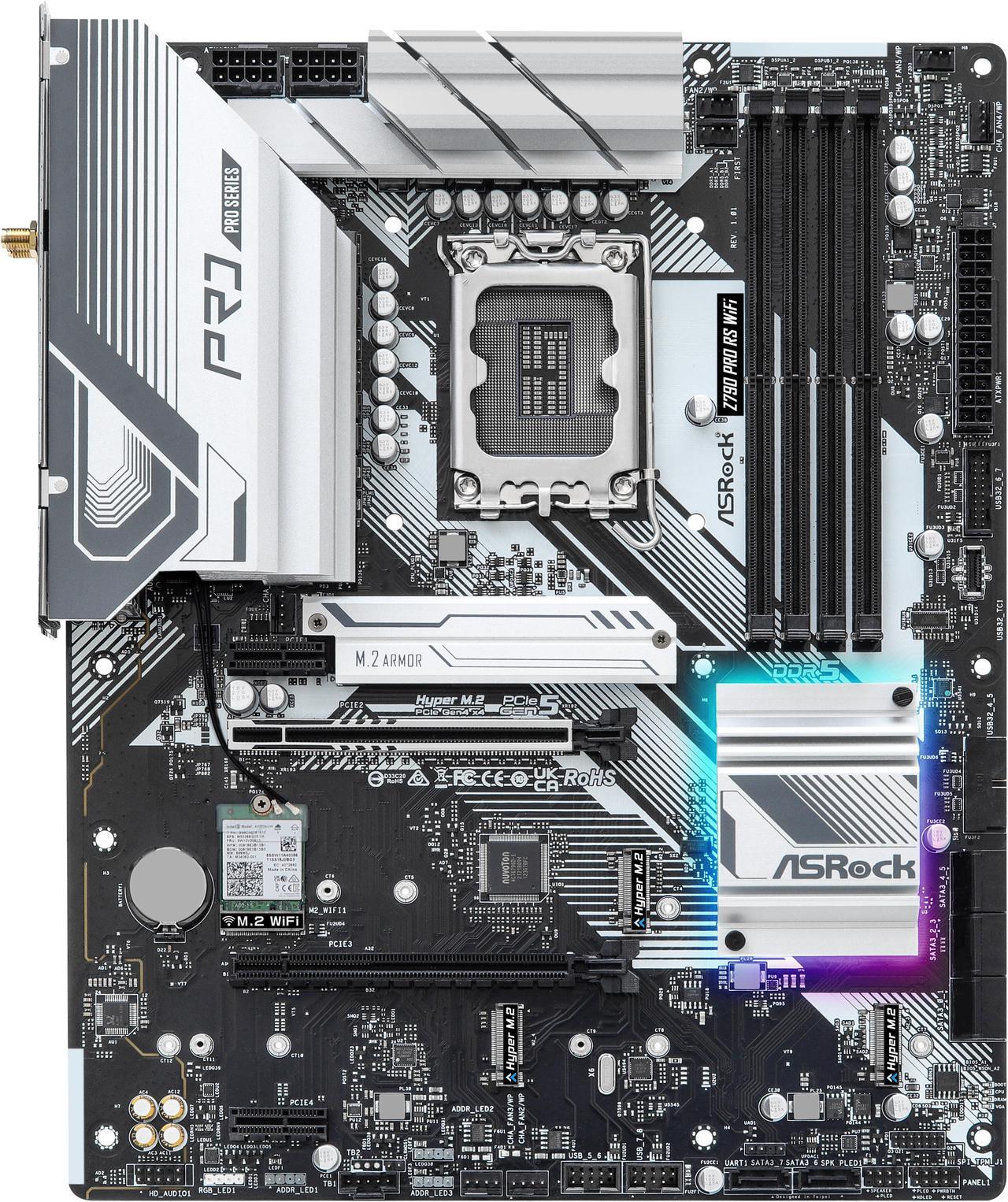

| The **ASRock Z790 PRO RS WiFi** is an ATX motherboard designed to offer a solid balance of performance, features, and value for Intel’s 12th, 13th, and 14th generation Core processors. Built on the **Intel Z790 chipset** and featuring the **LGA 1700 socket**, it provides a reliable foundation for gaming and productivity.
It features a robust **16+1+1 Power Phase Design with Dr.MOS**, ensuring stable and efficient power delivery for demanding CPUs and sustained performance. Memory support includes **DDR5 RAM up to 7200MHz (OC)** across four DIMM slots, providing ample bandwidth for modern applications and games. For expansion, it offers a **PCIe 5.0 x16 slot** with ASRock’s reinforced Steel Slot Gen5 for next-gen graphics cards, alongside additional PCIe 4.0 and PCIe 3.0 slots. Storage capabilities include **four M.2 slots**, all supporting PCIe 4.0 x4 speeds, alongside eight SATA 6Gb/s ports for extensive storage configurations. Connectivity is comprehensive with a **Dragon RTL8125BG 2.5GbE LAN** for high-speed wired networking and **Intel Wi-Fi 6E AX211** for tri-band wireless connectivity and Bluetooth 5.2. The board also incorporates features like Flashback BIOS for convenient updates, Nahimic Audio for immersive sound, and Polychrome RGB for customizable lighting, making it a well-rounded choice for a modern PC build. |
|
