| Power Supply Specifications | |
|---|---|

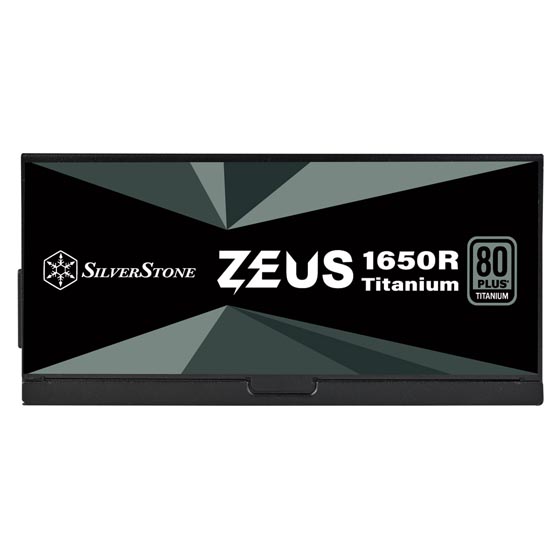

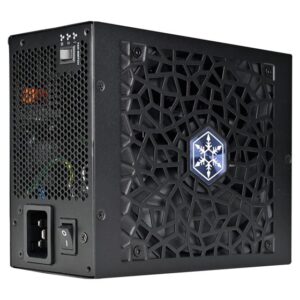

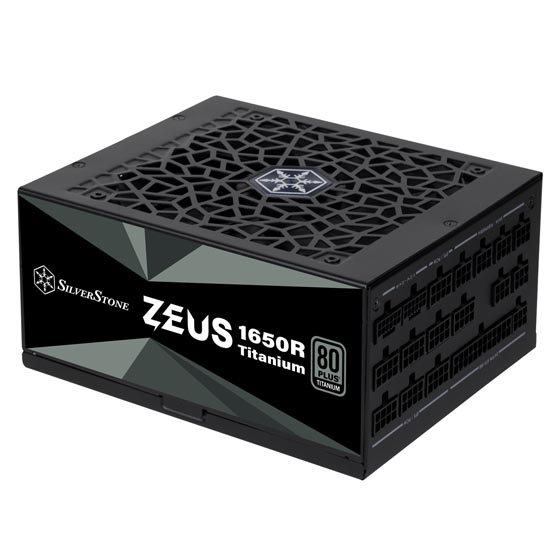

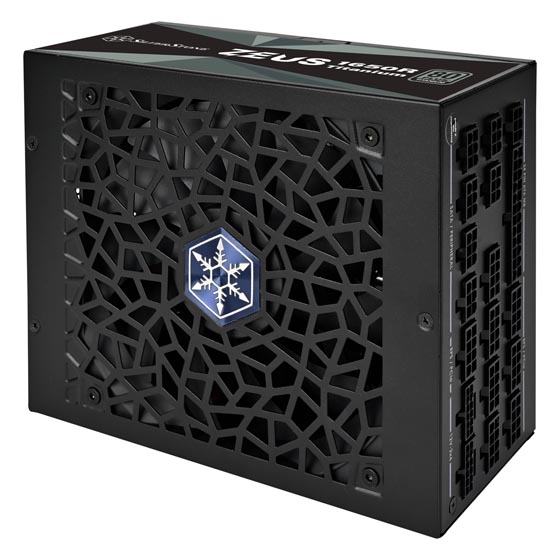

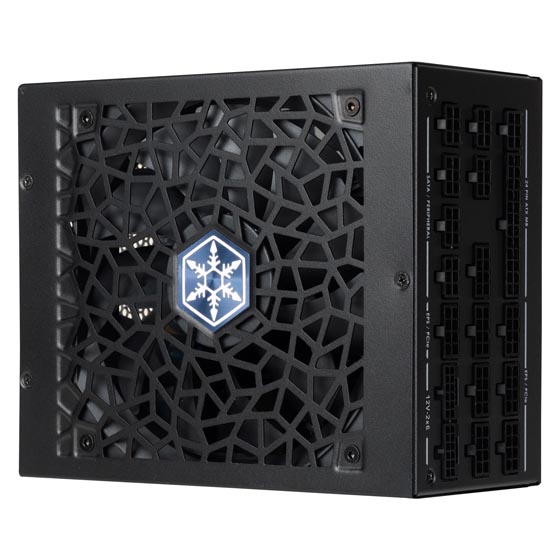

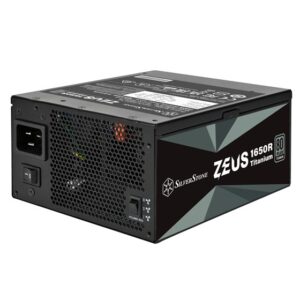

| Model | SilverStone ZEUS 1650R Titanium |
| Wattage | 1650 W |
| 80 PLUS Certification | Titanium |
| Form Factor | ATX (PS2) |
| Dimensions | 150mm (W) x 86mm (H) x 180mm (D) |

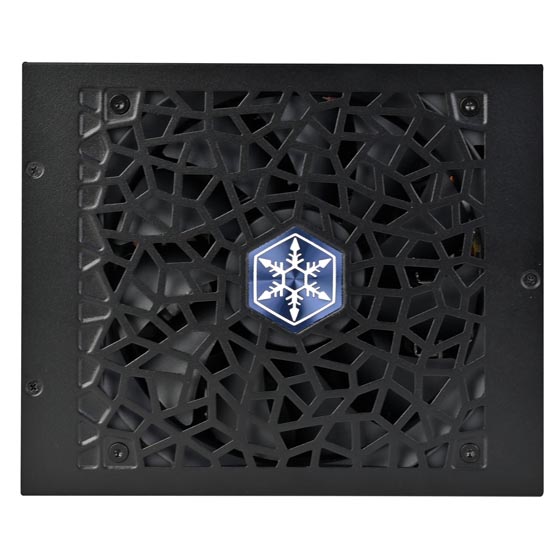

| Fan Size | 135 mm |

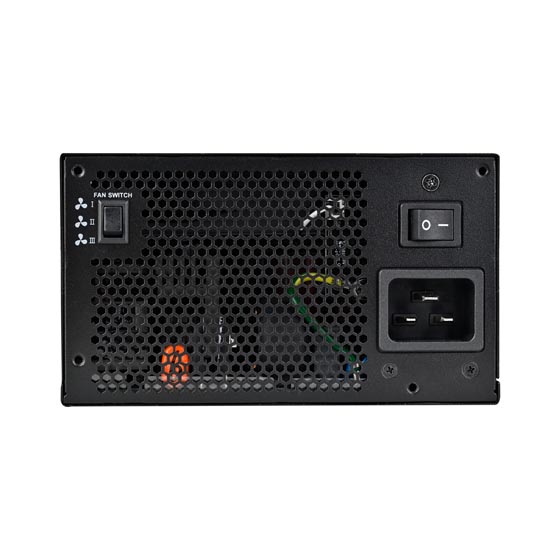

| Fan Type | Silent FDB with 3-mode switch |
| Modularity | Fully Modular |
| Capacitors | All Japanese electrolytic capacitors |
| Efficiency | ≥91% < 93% |
| Power Density | 710.6 W/L |
| Operating Temperature | 0°C ~ 50°C |
| MTBF | 100,000 hours |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Protection Features | OCP / OPP / OTP / OVP / SCP / UVP |

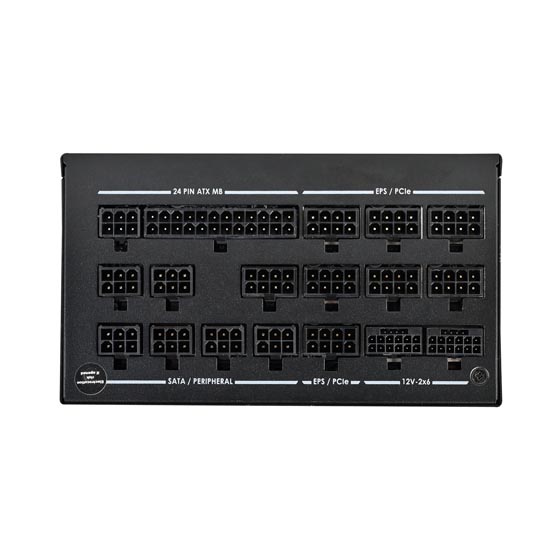

| Connectors |
1 × 24/20-Pin Motherboard 2 × 8/4-Pin EPS/ATX 12V 3 × 12+4-Pin 12V-2×6 12 × 8/6-Pin PCIe 16 × SATA 6 × 4-Pin Peripheral |
| Noise Level | 18 dBA minimum |
| Color | Black (lead-free paint) |
| Weight | 3.87 kg |
| Warranty | 3 Years |
