| Power Supply Specifications | |
|---|---|

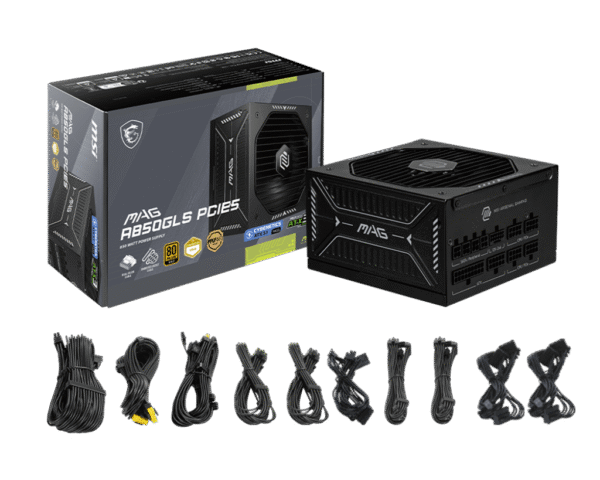

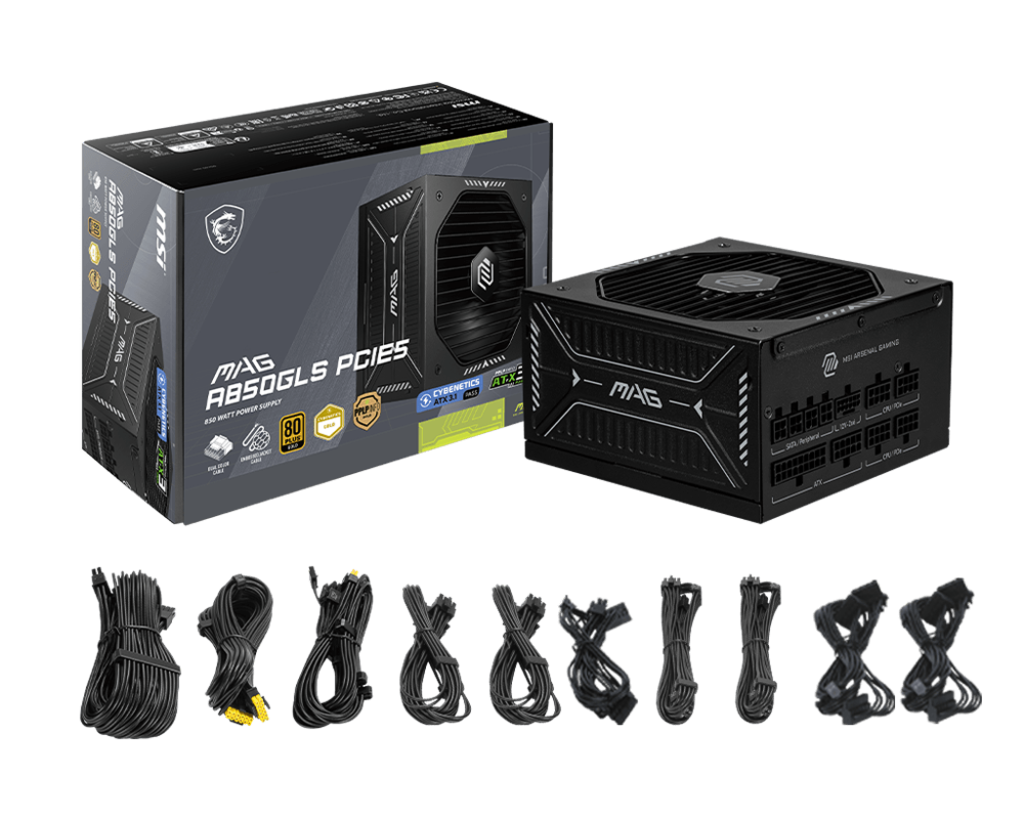

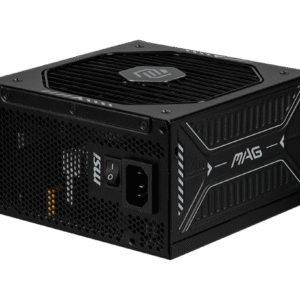

| Model | MSI MAG A850GLS / A1000GLS PCIE5 |
| PSU Wattage | 850W / 1000W |
| Efficiency | 80 PLUS Gold (up to 90%) |
| Form Factor | ATX |
| Dimensions | 150 x 150 x 86 mm |
| Modular | Yes (Fully Modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 47-63 Hz |
| Power Excursion | 2200W (up to 220% of rated power for 100μs) |
| Protection Features | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |

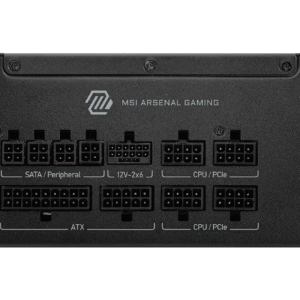

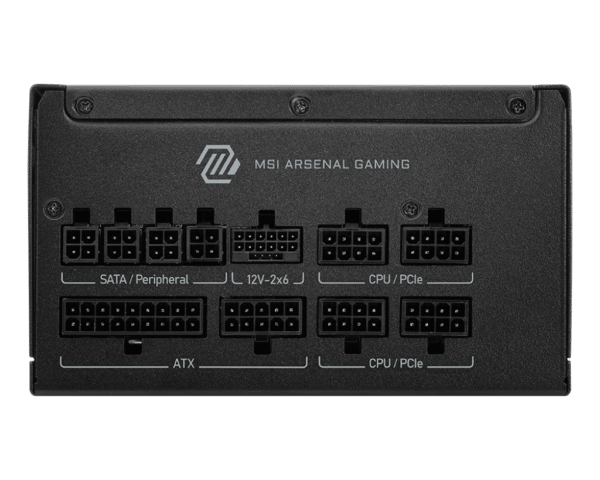

| ATX Connector | 1 × 24-pin |
| EPS Connectors | 2 × (4+4 pin) |
| PCI-E 5.1 Connector | 1 × (16 pin, 600W) |
| PCI-E Connectors | 4 × (6+2 pin) |
| SATA Connectors | 11 × (15 pin) |
| Peripheral Connectors | 4 × (4 pin) |
| FDD Connector | 1 × (4 pin) |
| Warranty | 3 Years |
