MSI B840 GAMING PLUS WIFI AM5 AMD B840 SATA 6Gb/s 2.5G Network Wi-Fi 7 DDR5 Dual M.2 Connectors ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | MSI |
| Category | Gaming ATX Motherboard |
| Model | B840 GAMING PLUS WIFI |
| Form Factor | ATX |
| Chipset | AMD B840 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Memory Support | 4 x DDR5 UDIMM slots, Max. 256GB Supports DDR5 7000+(OC) / 5600 JEDEC MT/s Dual-Channel Memory Architecture, Supports AMD EXPO™ |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (from CPU, with Steel Armor) 1 x PCIe 4.0 x4 slot (from Chipset) 2 x PCIe 3.0 x1 slots (from Chipset) |
| Storage Support | Total 2 x M.2 slots: 1 x M.2_1 (PCIe 4.0 x4, type 2280/2260) – CPU connected 1 x M.2_2 (PCIe 4.0 x4, type 2280/2260) – Chipset connected 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

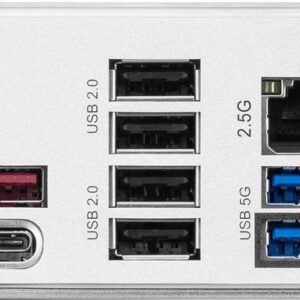

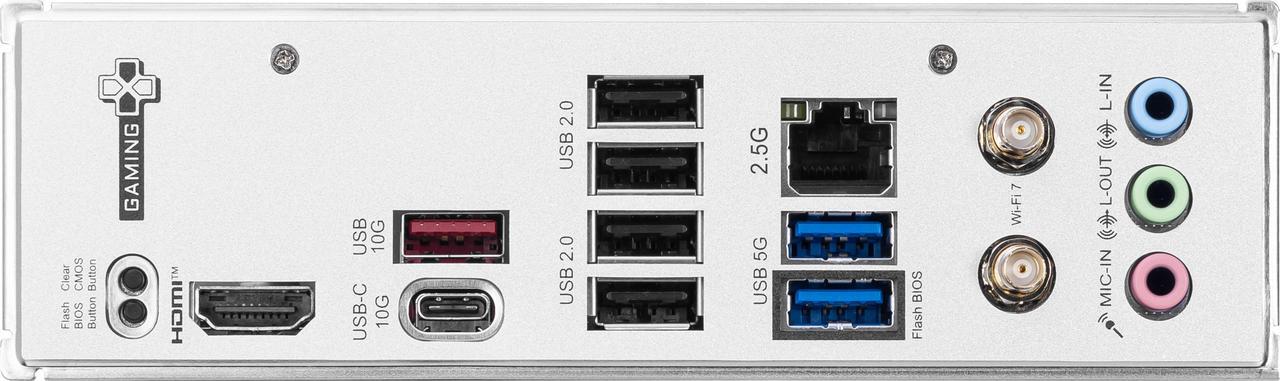

| USB Ports (Rear I/O) | 1 x USB 10Gbps Type-C® port (USB 3.2 Gen 2) 1 x USB 10Gbps Type-A port (USB 3.2 Gen 2) 4 x USB 5Gbps Type-A ports (USB 3.2 Gen 1) 2 x USB 2.0 Type-A ports 1 x Clear CMOS Button 1 x Flash BIOS Button |
| USB Ports (Front Headers) | 1 x USB 10Gbps Type-C® header (USB 3.2 Gen 2) 2 x USB 5Gbps Type-A headers (support 4 additional USB 5Gbps ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | 1 x Realtek® RTL8125B 2.5G LAN controller Wi-Fi 7 Solution (pre-installed in M.2 Key-E slot) Supports MU-MIMO TX/RX, 2.4/5/6GHz (320MHz) tri-band, up to 5.8Gbps Bluetooth® v5.4 *Wi-Fi 7 and Bluetooth 5.4 features require Windows 11 version 24H2. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Audio Boost |
| Power Delivery | 8+2+1 Duet Rail Power System Dual 8-pin CPU power connectors Core Boost |
| Cooling Features | Extended Heatsink Design M.2 Shield Frozr (on primary M.2 slot) MOSFET thermal pads Multiple fan headers |
| Special Features | MSI Steel Armor (for PCIe 4.0 x16 slot) EZ Debug LED, Flash BIOS Button Pre-installed I/O Shield |
| Display Output | 1 x DisplayPort™ 1.4 (Supports max. 4K@60Hz) 1 x HDMI™ 2.1 port (Supports max. 4K@60Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Clips, User Manual, Quick Installation Guide. (Contents may vary by region). |

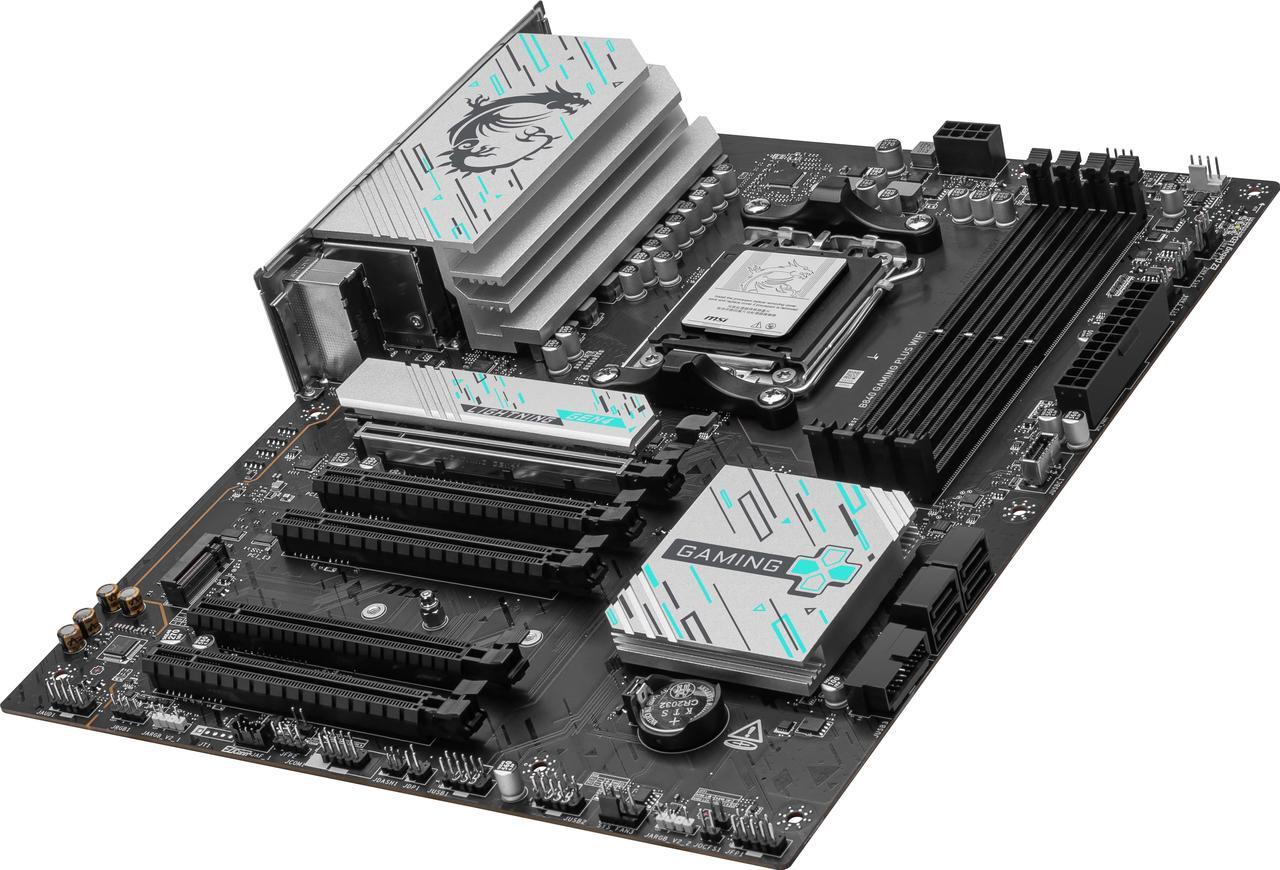

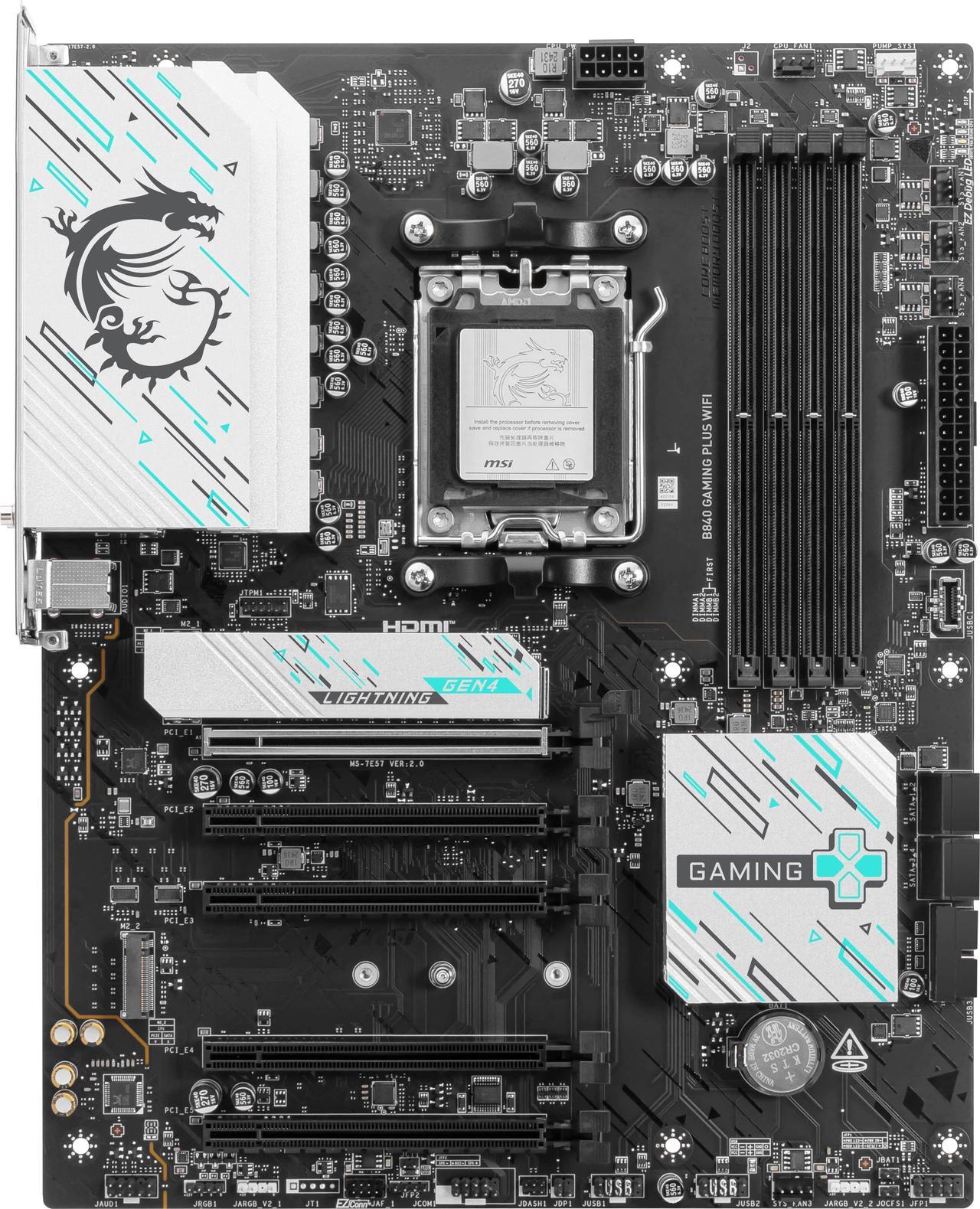

| The **MSI B840 GAMING PLUS WIFI** is an ATX motherboard designed to offer essential gaming features and connectivity for AMD’s AM5 platform, utilizing the **AMD B840 chipset**. It supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
This board features a solid **8+2+1 Duet Rail Power System** to provide reliable power delivery to the CPU. It supports **DDR5 memory up to 7000+ MT/s (OC)** across four DIMM slots, compatible with AMD EXPO profiles. For graphics, it includes a reinforced **PCIe 4.0 x16 slot** with MSI Steel Armor. Storage options include **dual M.2 connectors**, both supporting PCIe 4.0 x4 speeds, along with four SATA 6Gb/s ports. Network capabilities are provided by a **2.5G LAN controller** for solid wired performance and integrated **Wi-Fi 7** for next-generation wireless speeds and Bluetooth 5.4. The rear I/O offers a mix of USB 10Gbps, 5Gbps, and 2.0 ports, including a USB Type-C. With its focus on core gaming necessities and modern connectivity, the MSI B840 GAMING PLUS WIFI provides a cost-effective entry into the AM5 ecosystem. |
|
