GIGABYTE Z790 AORUS ELITE X AX: ATX Gaming Motherboard with DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, USB-C 20Gbps & Quad M.2 for Intel 14th/13th/12th Gen
1,00 EGP
Shipping calculated at checkout.
Estimated delivery:19 days
Guarantee Safe and Secure Payment Checkout
| Product Overview | |
|---|---|
| Manufacturer | GIGABYTE |
| Category | AORUS Gaming Series ATX Motherboard |
| Model | Z790 AORUS ELITE X AX |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Chipset | Intel® Z790 Express Chipset |
| Technical Specifications | |
| CPU Socket | LGA 1700 for Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold, and Celeron® Processors |
| Memory Support | 4 x DDR5 DIMM Slots (up to 192GB) Dual Channel Architecture Supports up to 8000+ MHz (OC) Supports Intel® XMP 3.0 |
| Expansion Slots | 1 x PCIe 5.0 x16 (reinforced) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Storage | 4 x M.2 slots: • 1 x PCIe 5.0 x4 (22110) • 3 x PCIe 4.0 x4 (2280, 1x SATA compatible) 6 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |

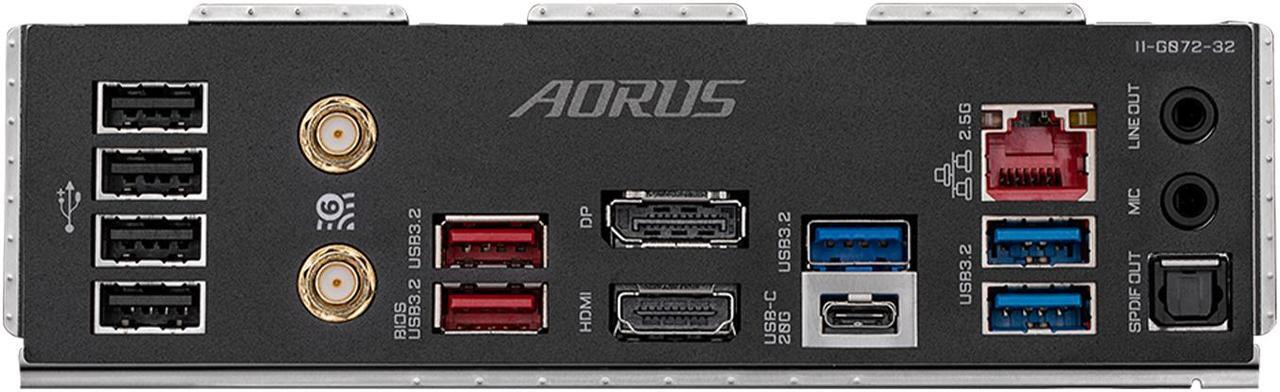

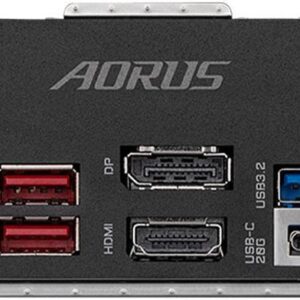

| Rear USB Ports | 1 x USB 3.2 Gen 2×2 Type-C® (20Gbps) 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 |
| Front USB Headers | 1 x USB 3.2 Gen 2 Type-C® header 2 x USB 3.2 Gen 1 headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Networking | Intel® Wi-Fi 6E 802.11ax 2×2 Bluetooth® 5.3 Realtek® 2.5GbE LAN |
| Audio | Realtek® Audio Codec 7.1-Channel High Definition Audio S/PDIF Out support |

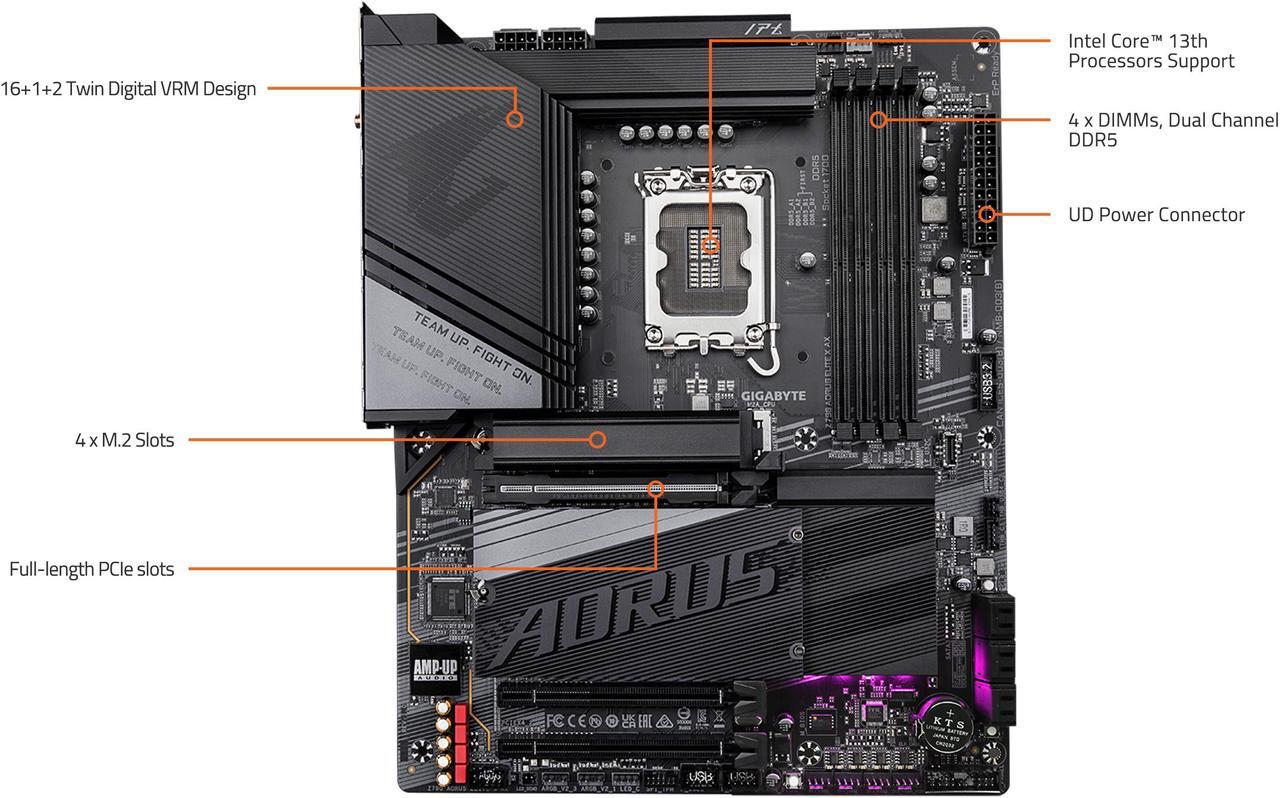

| Power Design | 16+1+2 Twin Digital VRM Phases 2 x 8-pin CPU Power Connectors 8-Layer PCB with 2X Copper |
| Cooling | Enlarged VRM Heatsinks Full Coverage M.2 Thermal Guard III Smart Fan 6 with 6 Hybrid Fan Headers |
| Special Features | EZ-Latch PCIe & M.2 RGB Fusion 2.0 Q-Flash Plus (BIOS without CPU) Clear CMOS Button Multi-Key Reset Button |
| Graphics Output | 1 x HDMI™ port (up to 4096×2160@60Hz) *Requires a processor with integrated graphics. |
| OS Compatibility | Windows® 11 64-bit Windows® 10 64-bit |
| Accessories | Wi-Fi Antenna, SATA Cables, G-Connector, M.2 Screws & Standoffs, User Manual |
|
The GIGABYTE Z790 AORUS ELITE X AX brings enthusiast-grade features to the mainstream gaming segment. Built on Intel’s Z790 chipset with support for the latest 14th, 13th, and 12th Gen Core™ CPUs, it offers incredible power with DDR5 memory, PCIe 5.0 GPU support, and fast storage via 4 M.2 slots.
This board also boasts premium connectivity with Intel Wi-Fi 6E, 2.5GbE LAN, and a front/rear panel stacked with USB-C and high-speed USB ports. Ideal for high-performance builds, it includes Q-Flash Plus, RGB Fusion, Smart Fan 6, and an optimized thermal design. Whether you’re gaming, creating, or overclocking, this is a well-rounded platform for serious PC users. |
|
