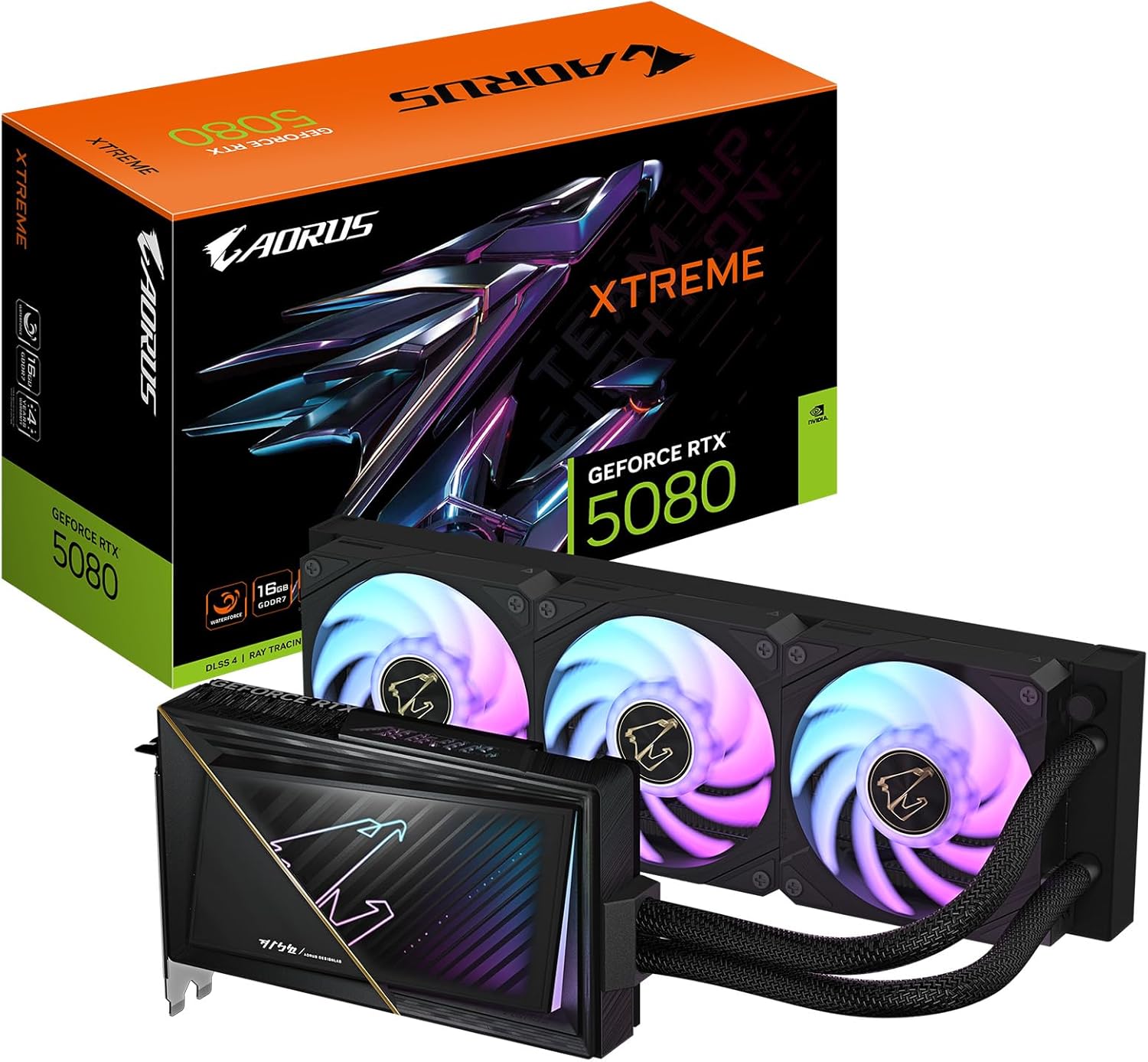

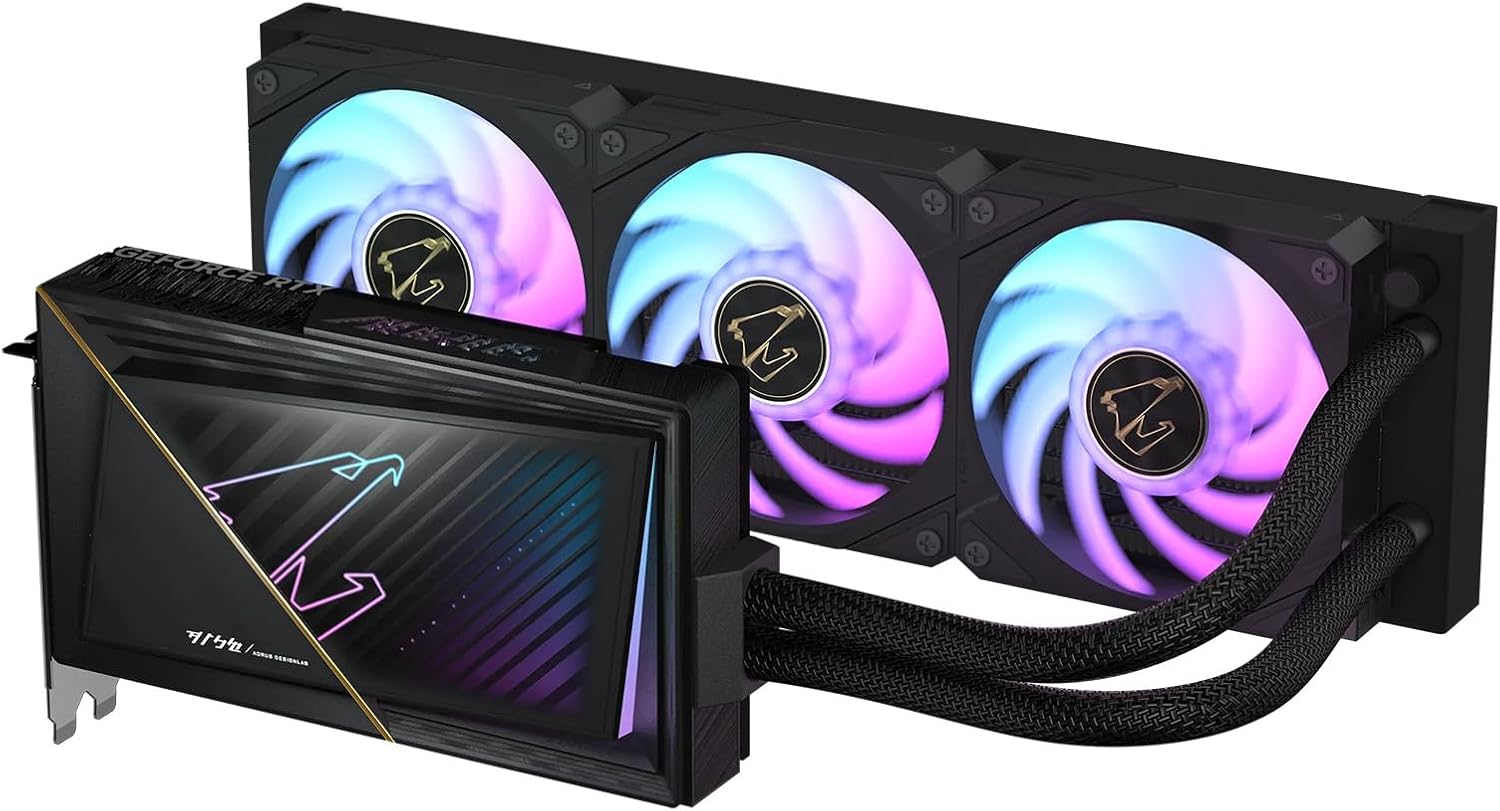

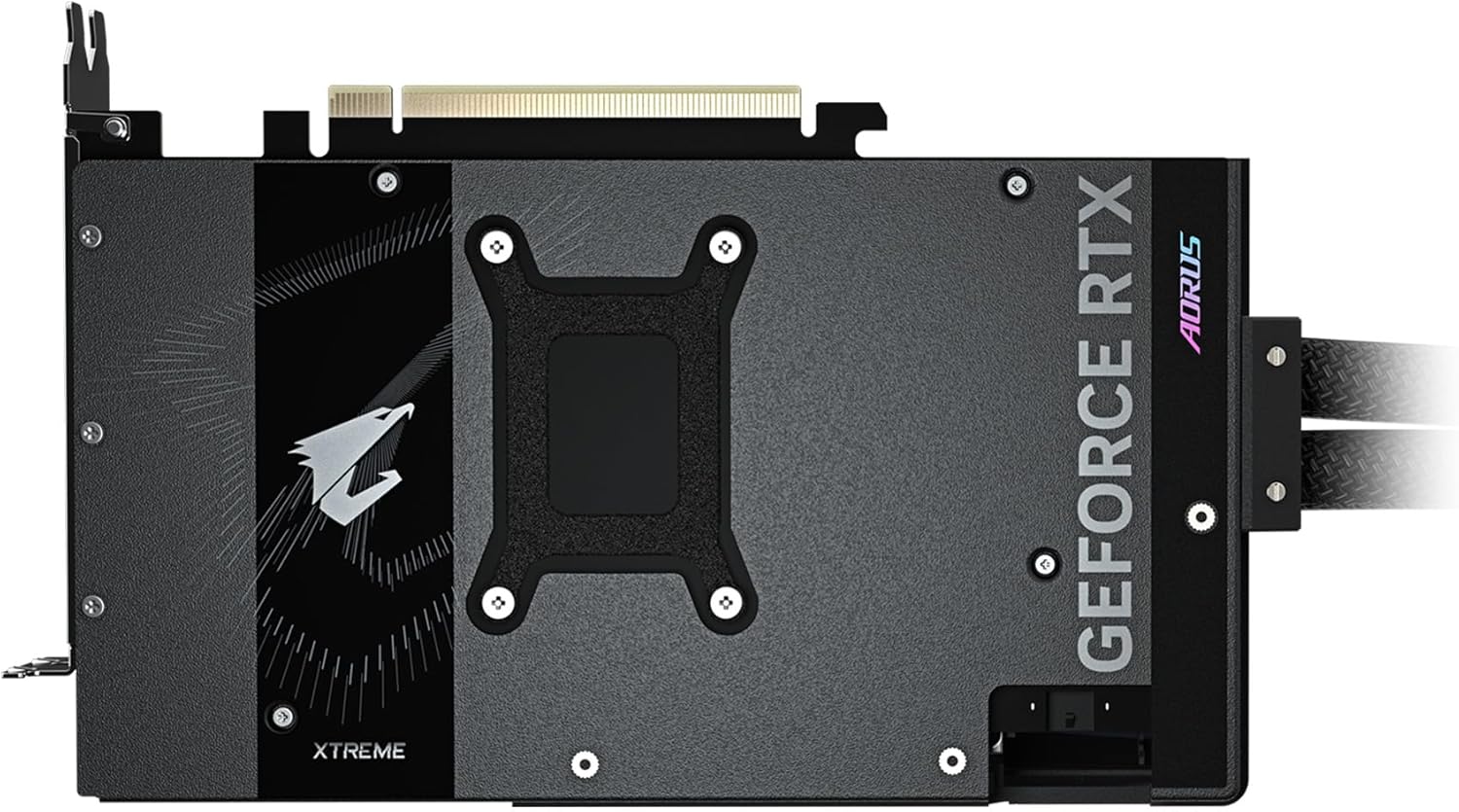

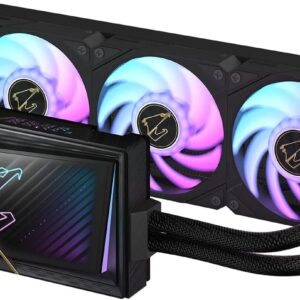

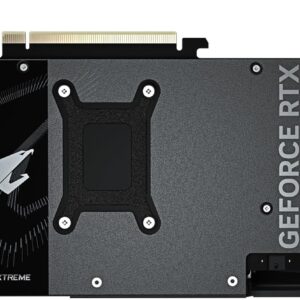

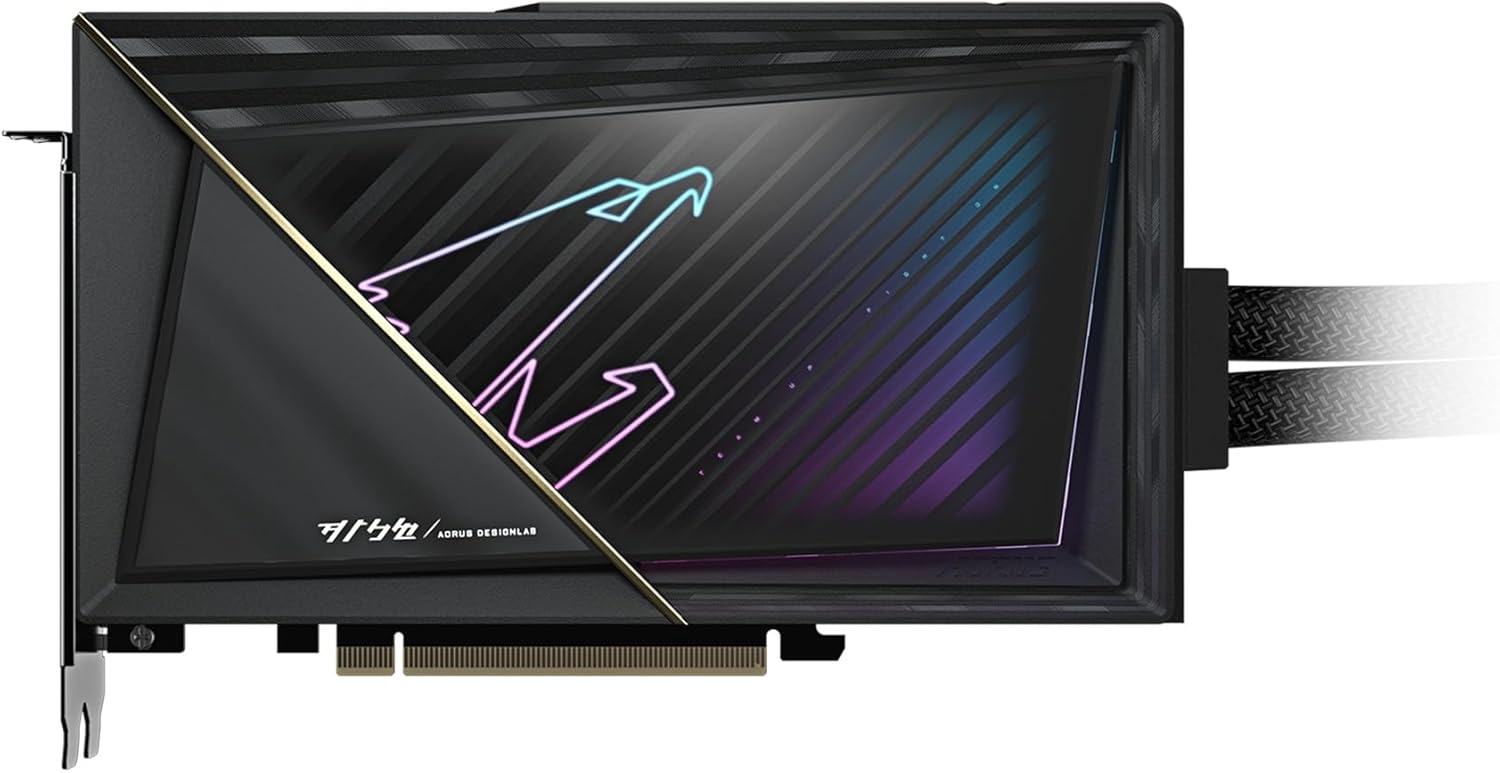

GeForce RTX™ 5080 AORUS XTREME WATERFORCE 16G delivers elite performance, cutting-edge thermals, and advanced features powered by NVIDIA’s Blackwell architecture. Featuring 16GB of ultra-fast GDDR7 memory and an all-in-one liquid cooling system, it offers whisper-quiet operation and maximum GPU efficiency. With AORUS RGB Fusion, dual BIOS, and a reinforced metal backplate, it is the ultimate choice for hardcore gamers and creators demanding the very best.
| Product Overview | |
|---|---|
| Brand | Gigabyte |
| Marketing Name | GeForce RTX™ 5080 AORUS XTREME WATERFORCE 16G |
| Model Name | GV-N5080AORUSXWF-16GD |
| Category | Graphics Card |
| Technical Specifications | |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Core Clocks | Extreme Mode: 2755 MHz Boost: 2550 MHz |
| CUDA® Cores | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16 GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort 2.1 × 3 HDMI 2.1 × 1 |
| HDCP Support | Yes (HDCP 2.3) |
| Power Consumption | 360 W |
| Power Connectors | 1× 16-pin (12VHPWR) |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 252 × 140 × 40 (Card only) |
| Weight (Card / Package) | 750 g / 1450 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Support | Yes |
| Digital Max Resolution | 7680 × 4320 |
| Cooling | All-in-one Liquid Cooling (360mm radiator with 3x 120mm RGB fans) |
| Build & Design | Premium metal shroud, RGB Fusion 2.0, Dual BIOS |
| Features | DLSS 3.5, Ray Tracing, NVIDIA Reflex, RTX IO, AV1 Decode/Encode |
| Warranty | 3 Years |
