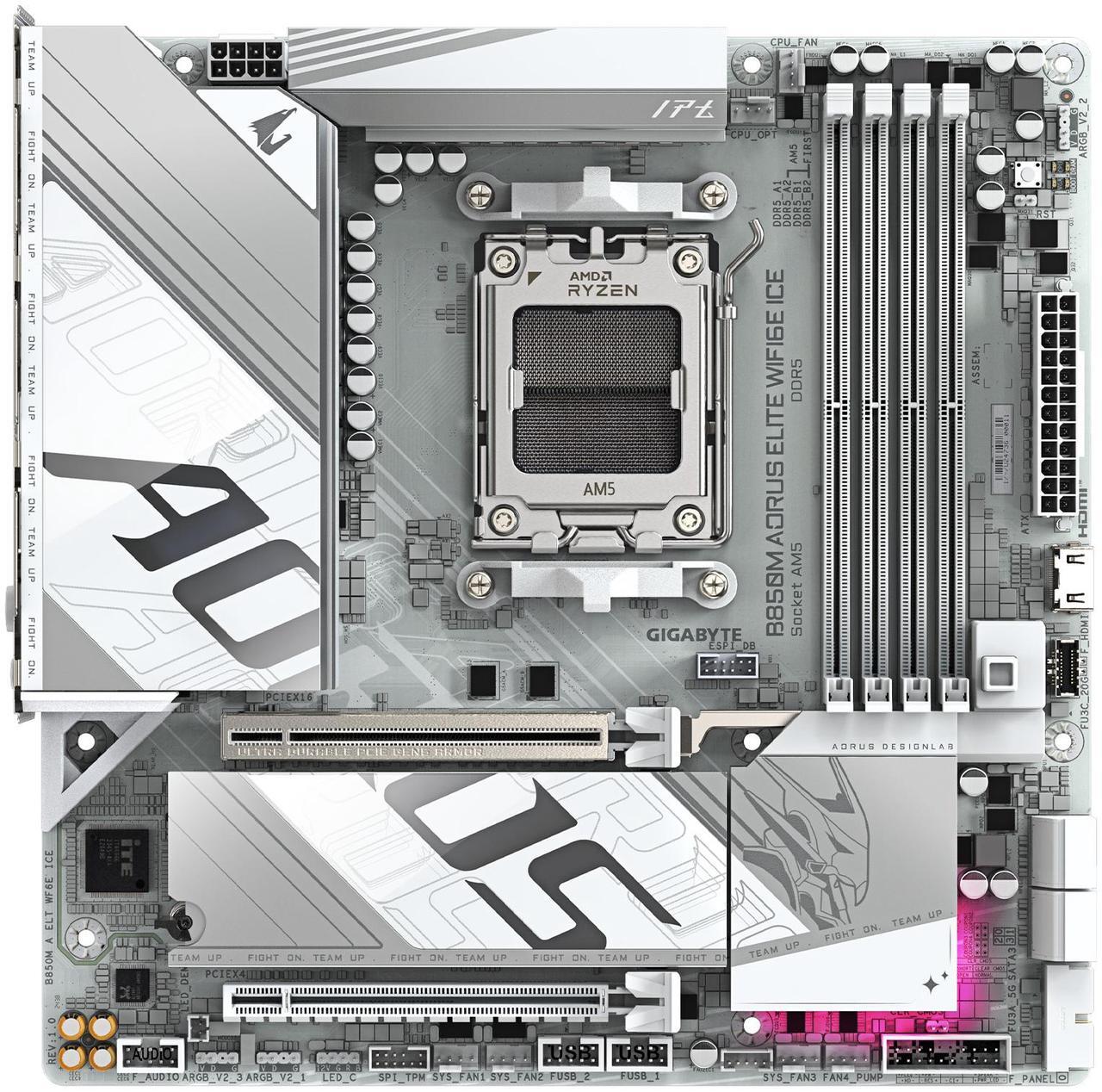

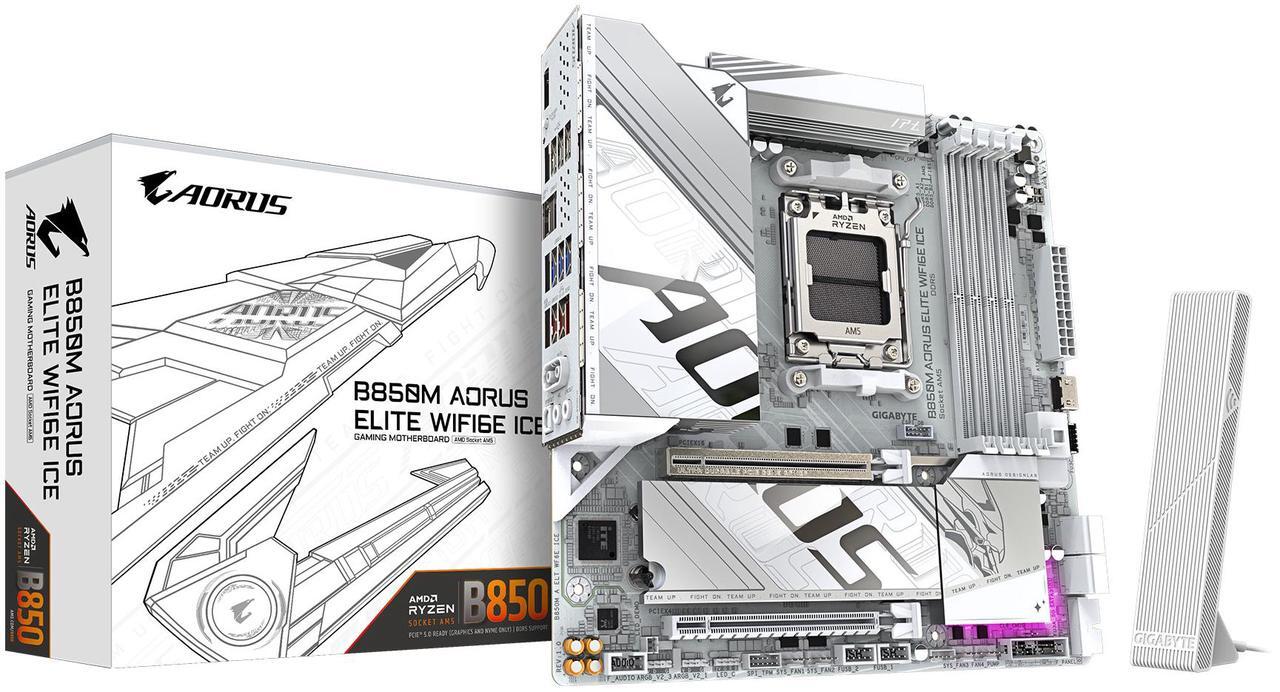

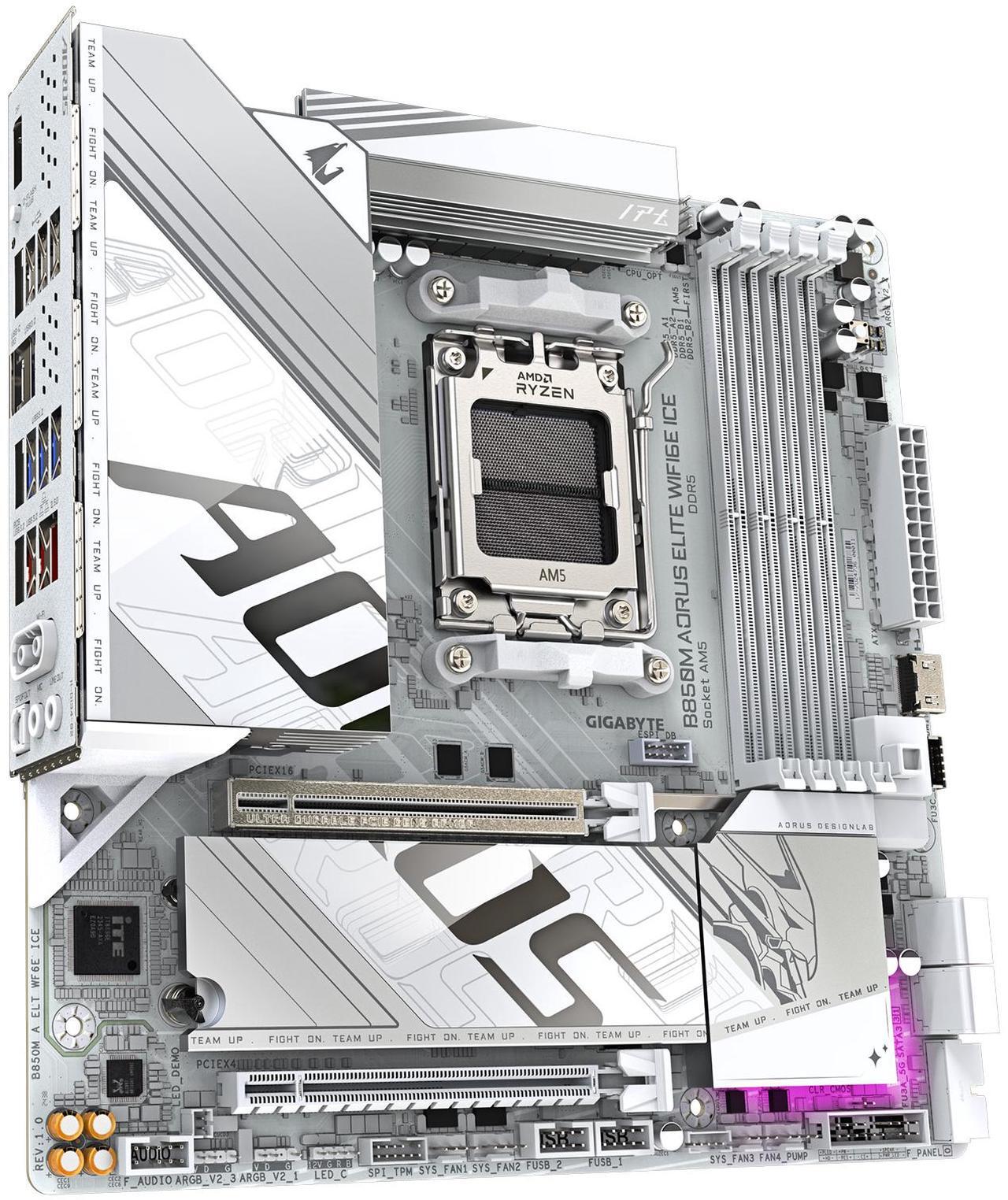

GIGABYTE B850M AORUS ELITE WIFI6E ICE: AM5, AMD B850, DDR5 8200+(OC), PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN Micro-ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | GIGABYTE |
| Category | AORUS ELITE Series Micro-ATX Motherboard (Performance Gaming) |
| Model | B850M AORUS ELITE WIFI6E ICE (rev. 1.x) |
| Form Factor | Micro-ATX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Memory Support | 4 x DDR5 UDIMM slots, Max. 256GB Supports DDR5 with Overclocking Up to 8200 MT/s Dual Channel Memory Architecture, Supports AMD EXPO™ Memory Modules |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, with PCIe UD Slot for enhanced durability) 1 x PCIe 4.0 x4 slot (from Chipset) |
| Storage Support | Total 2 x M.2 slots: 1 x PCIe 5.0 x4 M.2 Slot (type 22110/2280/2260) – CPU connected 1 x PCIe 4.0 x4 M.2 Slot (type 22110/2280/2260) – Chipset connected 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

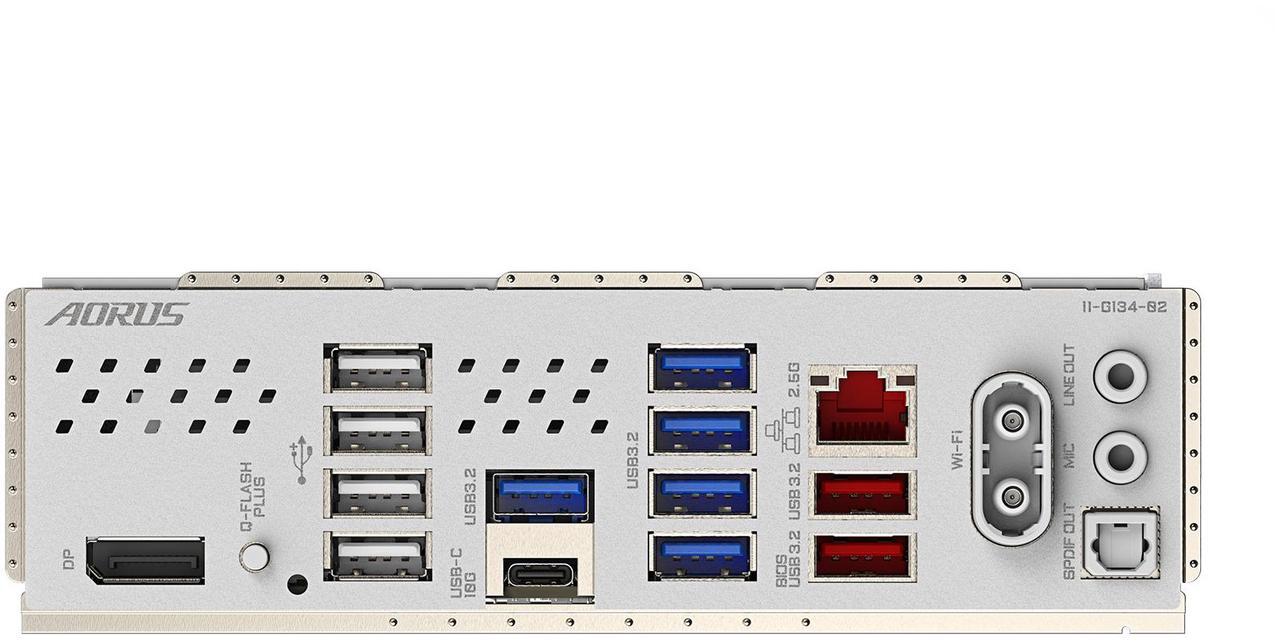

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2 Type-C® port (10Gbps) 2 x USB 3.2 Gen 2 Type-A ports (10Gbps) 5 x USB 3.2 Gen 1 Type-A ports (5Gbps) 4 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB Type-C® header (USB 3.2 Gen 2×2, 20Gbps) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 5Gbps ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wi-Fi 6E (802.11ax) Solution with Directional Ultra-high gain Antenna Bluetooth® v5.2 |
| Audio | High Definition Audio Codec (e.g., Realtek ALC897) 7.1-Channel High Definition Audio, High-End Audio Capacitors |
| Power Delivery | 12+2+1 Digital VRM Design UD Power Connector (24-pin ATX with UD Solid Pin, 4+8-pin CPU with UD Solid Pin) |
| Cooling Features | VRM Thermal Armor Advanced, 5 W/mk Thermal Pads M.2 Thermal Guard Ext. (premium heatsinks for M.2 slots) Smart Fan 6 (Multiple fan headers with intelligent control) |
| Special Features | X3D Turbo Mode, D5 Bionic Corsa Technology RGB FUSION (1 x RGB LED Header, 3 x ARGB LED Headers) WIFI EZ-Plug, M.2 EZ-Latch Plus & Click, PCIe EZ-Latch Plus EZ-Debug Zone, Q-FLASH PLUS Button Sensor Panel Link (HDMI) |
| Display Output | 1 x HDMI™ 1 x DisplayPort™ *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit (Assumed) |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Clips, User Manual, Quick Installation Guide. (Contents may vary by region). |
| The **GIGABYTE B850M AORUS ELITE WIFI6E ICE (rev. 1.x)** is a high-performance Micro-ATX motherboard designed for compact gaming builds and small form factor PCs on the AMD AM5 platform. With its **AMD B850 chipset**, it provides robust support for AMD Ryzen™ 9000/8000/7000 Series Processors.
This board features a strong **12+2+1 Digital VRM Design** with Ultra Durable Power Connectors, ensuring stable power delivery for demanding components. It supports **DDR5 memory across four DIMM slots**, with overclocking speeds up to 8200 MT/s via AMD EXPO. For graphics, it includes a **PCIe 5.0 x16 slot** with enhanced durability (PCIe UD Slot) and an additional PCIe 4.0 x4 slot. Storage options include **two M.2 slots** – one PCIe 5.0 x4 and one PCIe 4.0 x4 – both benefiting from M.2 Thermal Guard Ext. heatsinks for sustained performance. Four SATA 6Gb/s ports are also available. Connectivity is comprehensive with a **2.5GbE LAN controller** for solid wired networking and integrated **Wi-Fi 6E** with a directional high-gain antenna for robust wireless performance, complemented by Bluetooth 5.2. The extensive USB connectivity includes a 20Gbps USB 3.2 Gen 2×2 Type-C front header and various 10Gbps and 5Gbps USB ports on the rear. Featuring a distinct “ICE” white aesthetic, advanced cooling, and user-friendly DIY designs like EZ-Latch, the B850M AORUS ELITE WIFI6E ICE offers a powerful and visually appealing solution for compact systems. |
|
