| Product Overview | |
|---|---|
| Manufacturer | ASUS |
| Category | Gaming Motherboard (TUF Gaming Series) |
| Model | TUF GAMING X870-PLUS WIFI |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
| Chipset | AMD X870 |
| Technical Specifications | |
| CPU Socket | AM5 (LGA 1718) for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series Processors Dual Channel Memory Architecture, ECC and Non-ECC, Un-buffered DIMM AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, supports x16 mode for Ryzen™ 9000/7000 Series; x8/x4 mode for Ryzen™ 8000 Series) 1 x PCIe 4.0 x16 slot (from Chipset, supports x4 mode) * The PCIe 5.0 x16 slot may share bandwidth with an M.2 slot depending on configuration. |
| Storage Support | 4 x M.2 slots: 2 x M.2 2280 (Key M) (M.2_1 supports PCIe 5.0 x4 from CPU for Ryzen™ 9000/7000 Series; PCIe 4.0 x4 for Ryzen™ 8000 Series; M.2_2 supports PCIe 5.0 x4 from CPU for Ryzen™ 9000/7000 Series, PCIe 4.0 x4/x2 for Ryzen™ 8000 Series) 2 x M.2 2280/22110 (Key M) (M.2_3 and M.2_4 support PCIe 4.0 x4 mode from Chipset) 2 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports RAID 0/1/5/10 for PCIe NVMe and RAID 0/1 for SATA. (RAID 5 for Ryzen™ 9000 Series CPU only) |

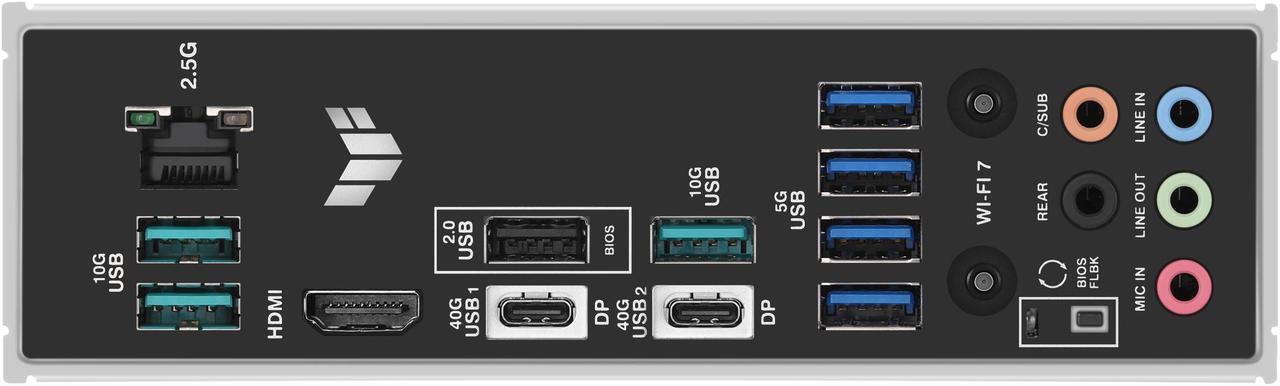

| USB Ports (Rear) | 2 x USB4® Type-C® ports (40Gbps, with DisplayPort™ Alt Mode) 3 x USB 3.2 Gen 2 Type-A ports (10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 1 x USB 2.0 Type-A port |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2×2 connector (20Gbps, supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Network | 1 x Realtek 2.5Gb Ethernet (with TUF LANGuard) Wi-Fi 7 (802.11be), 2×2 Wi-Fi 7 (supports 2.4/5/6GHz frequency band, up to 2.9Gbps transfer rate, 160MHz bandwidth) Bluetooth® v5.4 |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers DTS® Sound Unbound |
| Power Delivery | 16+2+1 Power Stages (80A Smart Power Stages) Dual 8-pin ProCool II Power Connectors TUF Chokes, TUF Capacitors, 8-layer PCB |
| Special Features | TUF Protection (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O) ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED) ASUS AI Intelligence (AI Overclocking, AI Cooling II, AI Networking II, AI Advisor) Dynamic OC Switcher, Core Flex, PBO Enhancement BIOS FlashBack™ button, Clear CMOS header Aura Sync (3 x Addressable Gen 2 RGB headers, 1 x RGB header) |
| Display Output | 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1) 2 x USB4® Type-C® ports (supports max. 4K@60Hz via DisplayPort™ Alt Mode) |
| Operating System Support | Windows® 11 64-bit (Windows 11 24H2 or later recommended for full Wi-Fi 7 functionality) |

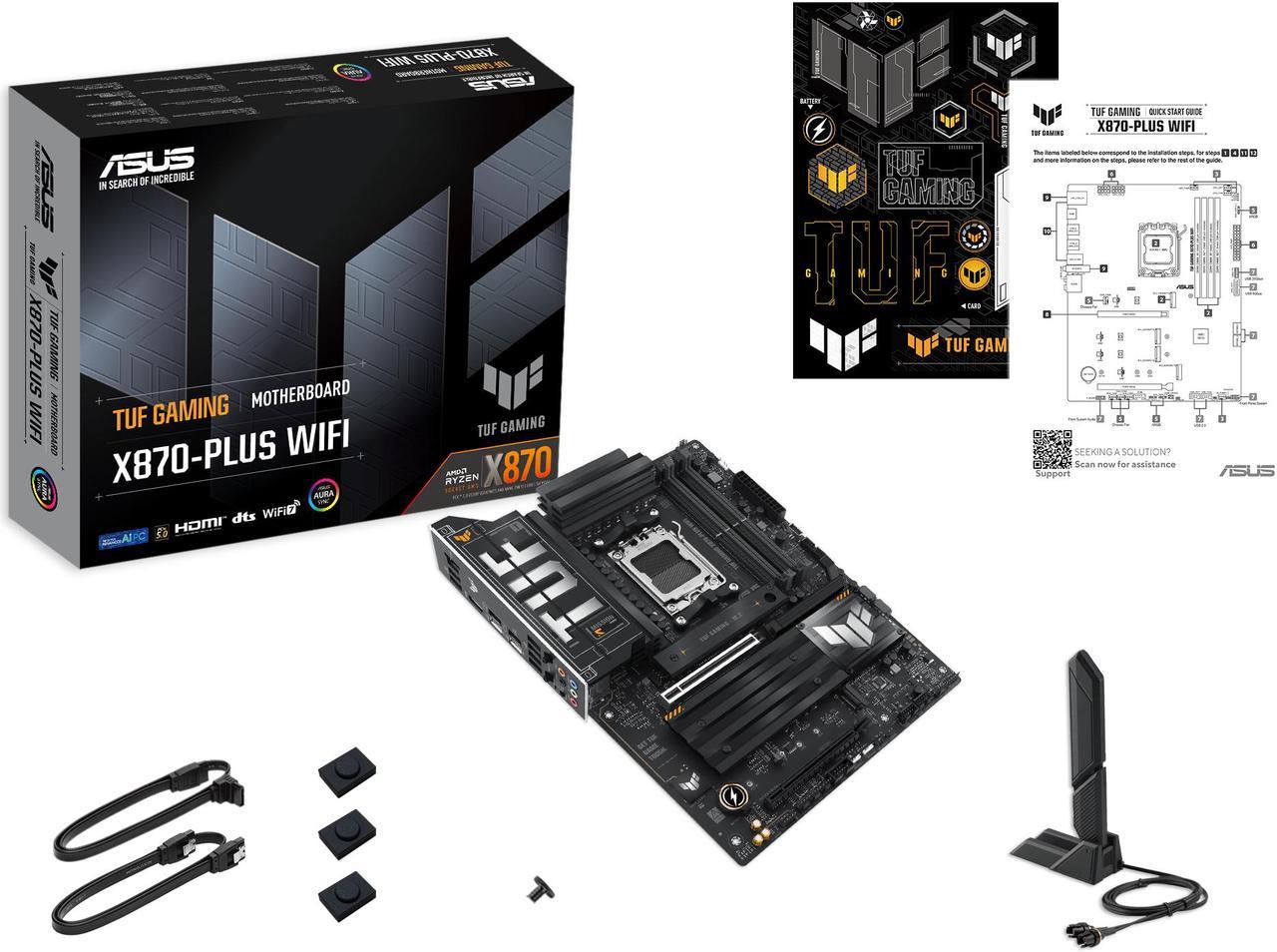

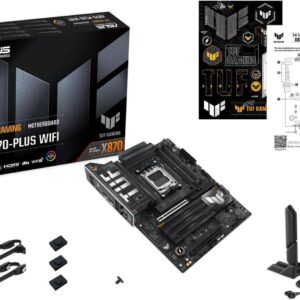

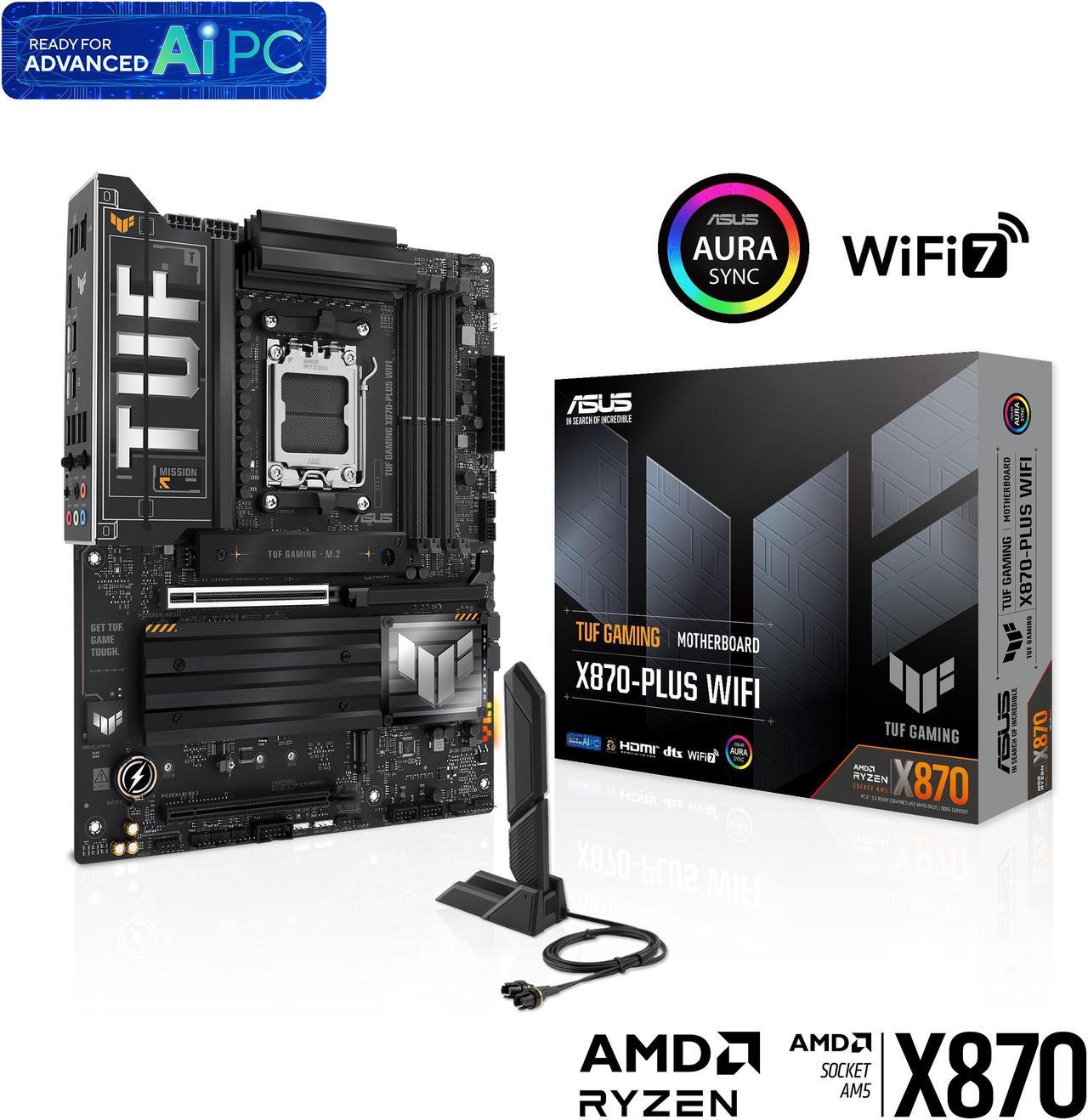

| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 screw packages, TUF GAMING sticker, Quick start guide |

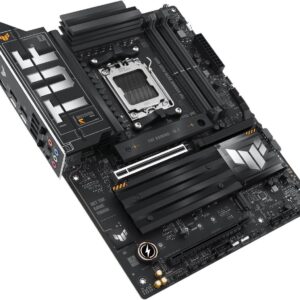

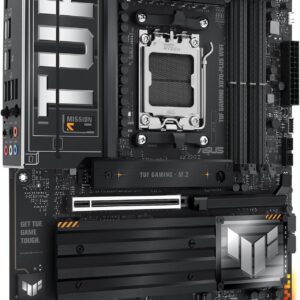

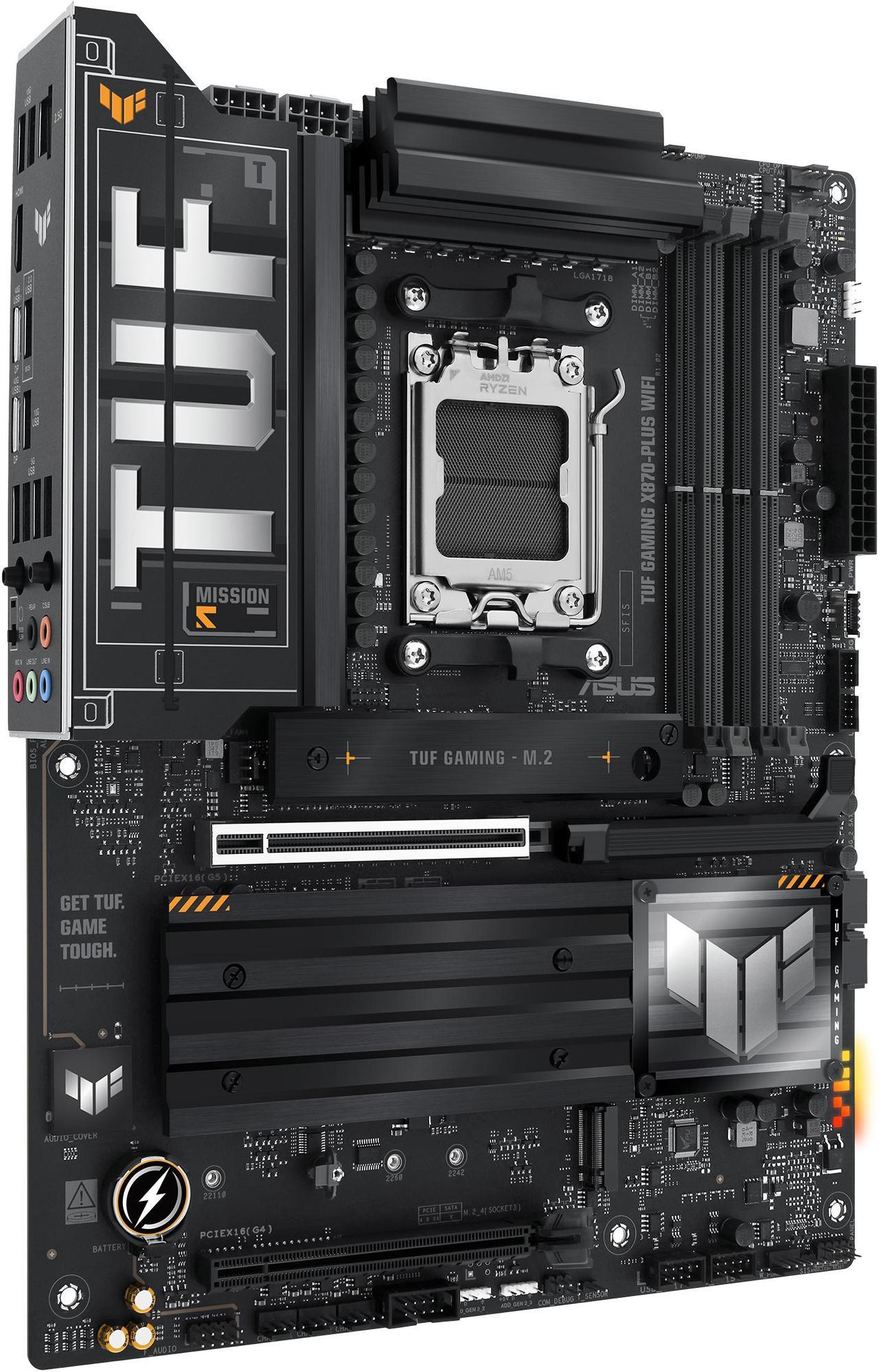

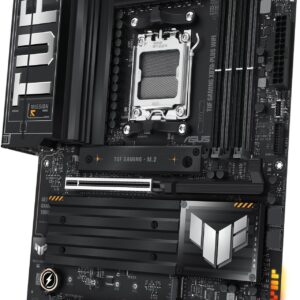

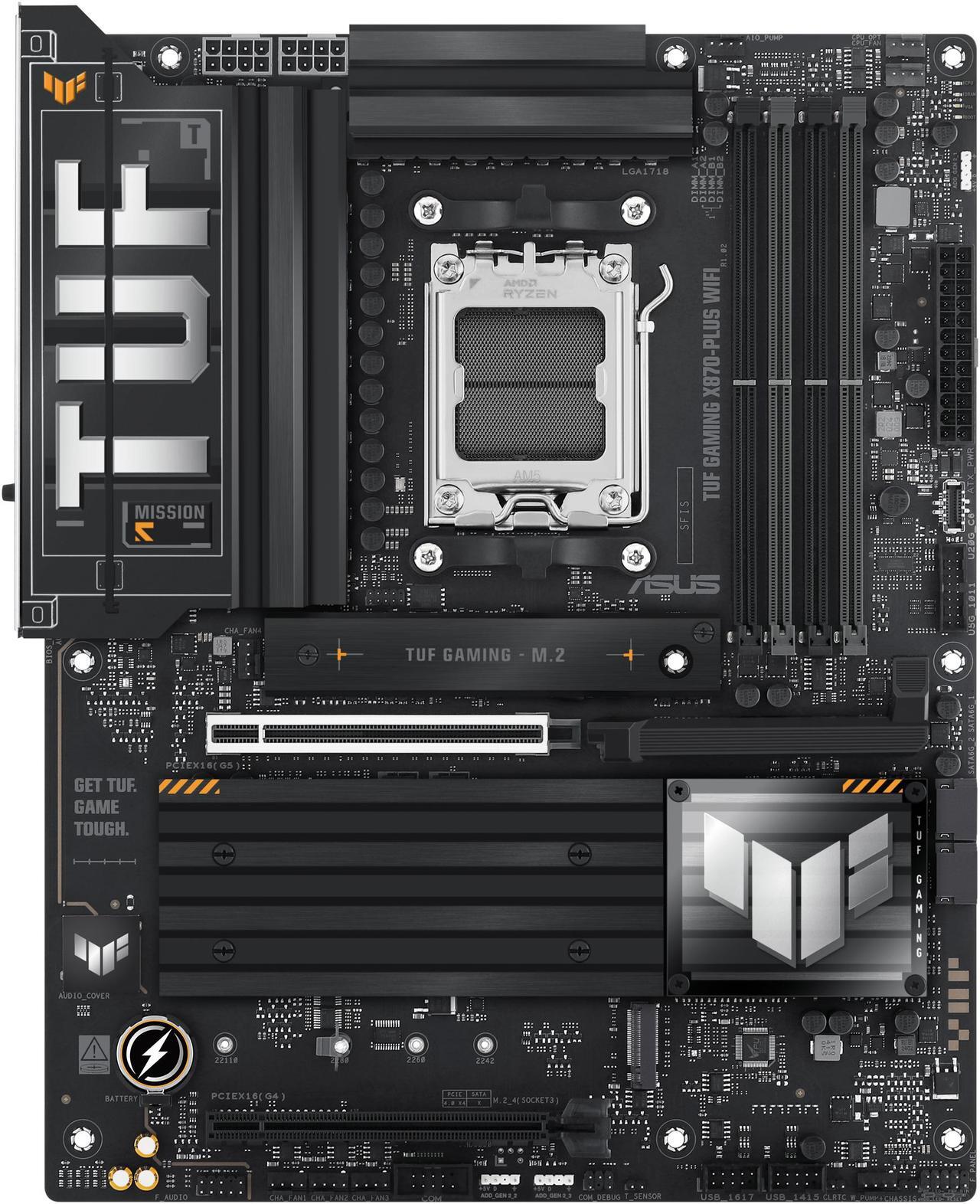

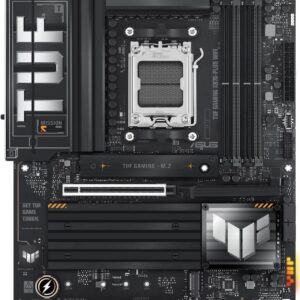

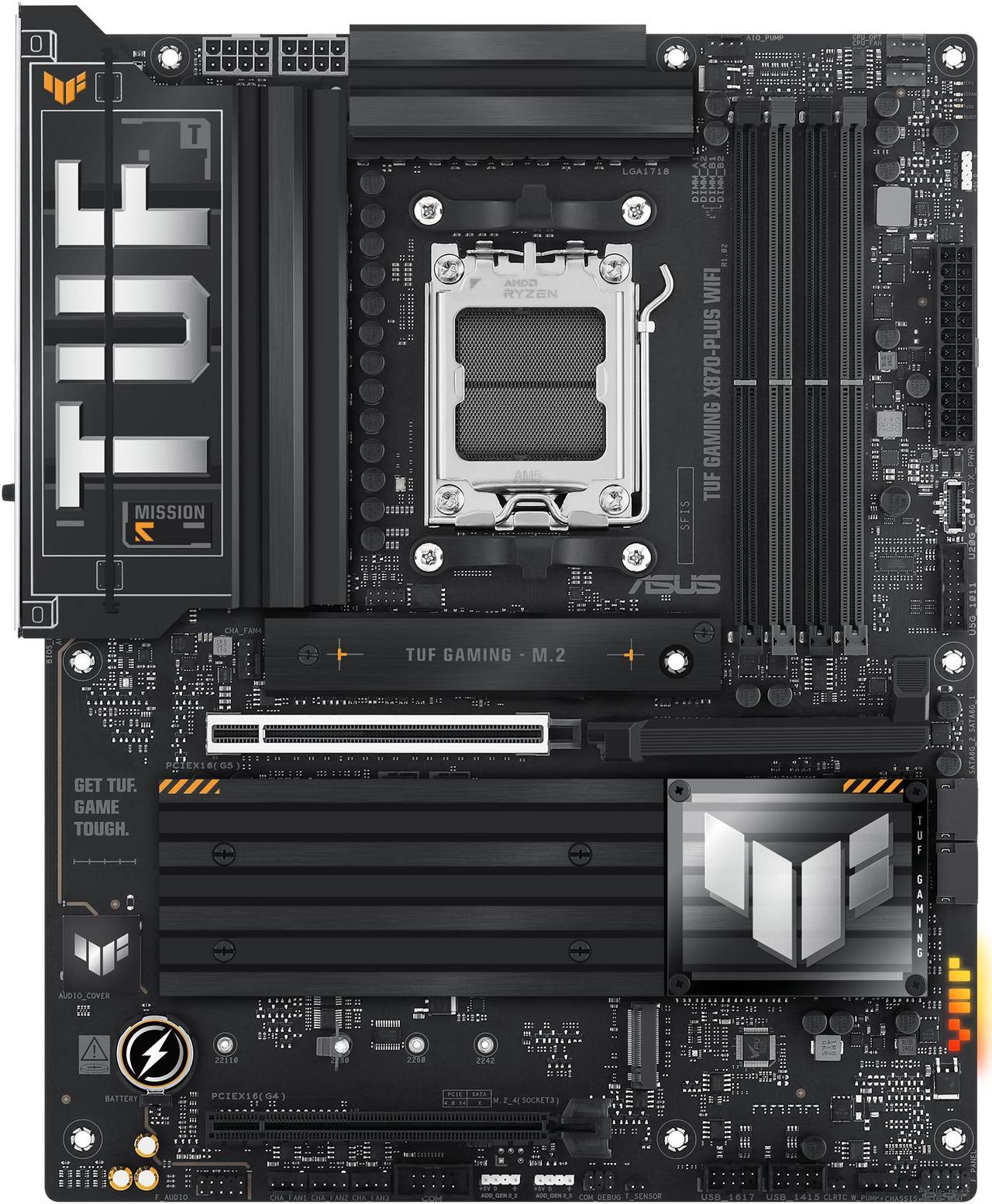

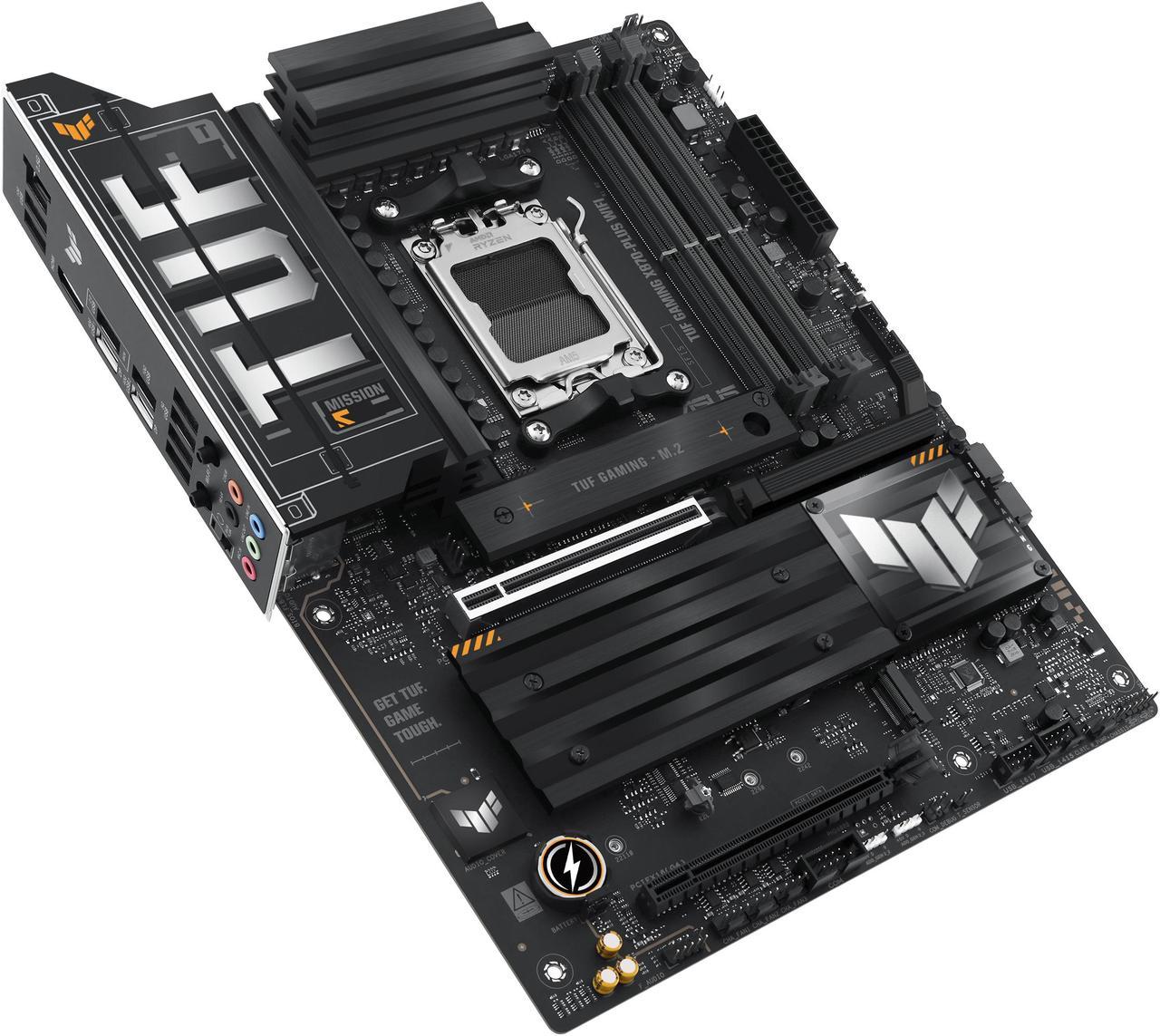

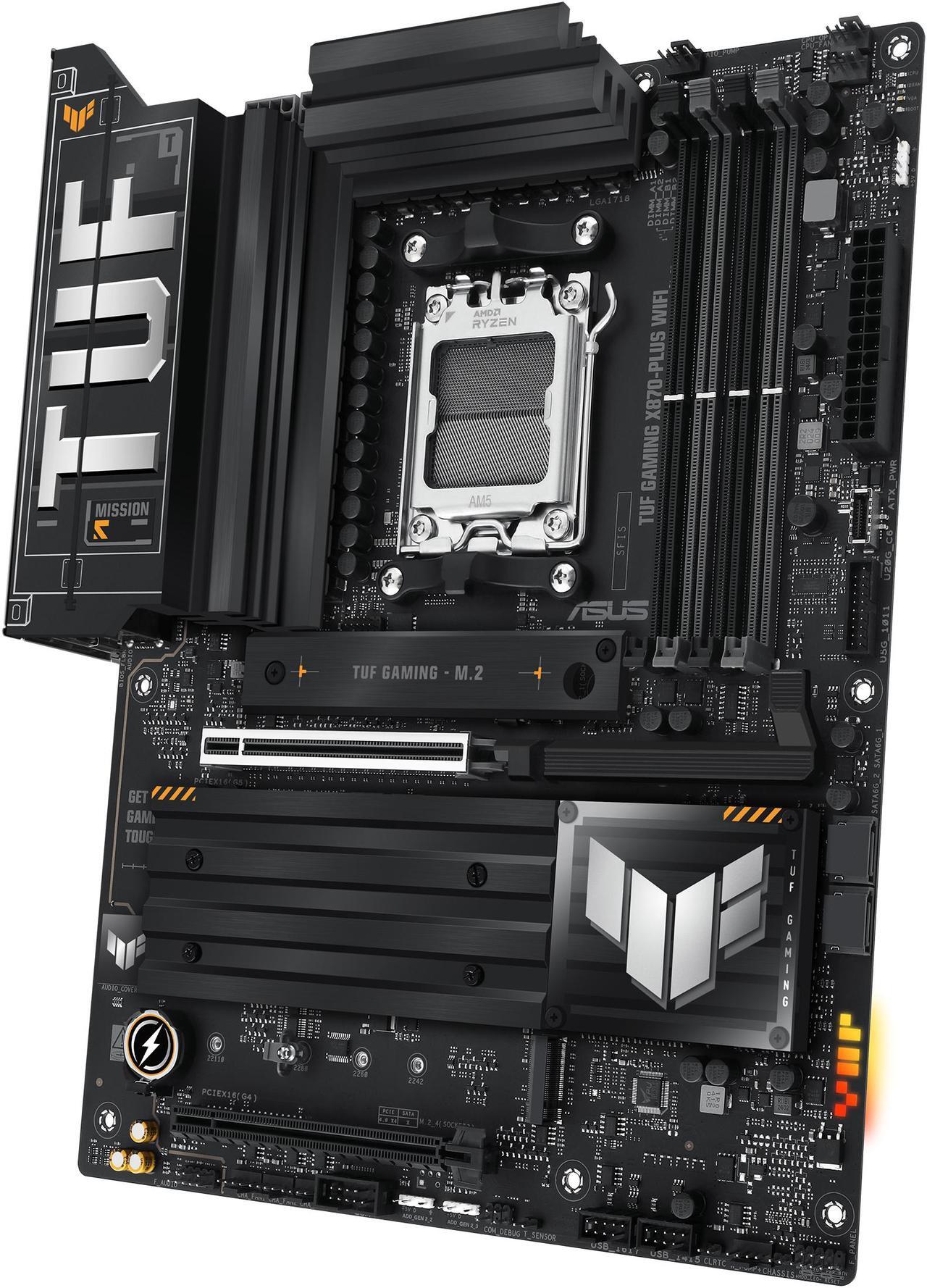

The ASUS TUF GAMING X870-PLUS WIFI is an ATX motherboard built to provide a stable, reliable, and high-performance foundation for your AMD Ryzen™ AM5 system. Adhering to the TUF Gaming ethos, it emphasizes durability and robust features for sustained gaming and demanding tasks.
Equipped with a potent 16+2+1 power stage design utilizing 80A Smart Power Stages and dual 8-pin ProCool II connectors, it ensures excellent power delivery to the latest AMD Ryzen™ 9000, 8000, and 7000 series processors. It supports up to 192GB of high-speed DDR5 memory, capable of reaching speeds beyond 8000 MT/s through AMD EXPO™ and ASUS AEMP, providing ample bandwidth for gaming and productivity.
Storage flexibility is a strong point, with **four M.2 slots**, including two PCIe 5.0 x4 slots for cutting-edge NVMe SSDs and two additional PCIe 4.0 x4 slots, complemented by two SATA 6Gb/s ports. For graphics, it boasts a reinforced PCIe 5.0 x16 slot. Connectivity is comprehensive, featuring **two USB4® Type-C® ports** on the rear I/O with 40Gbps bandwidth and DisplayPort™ Alt Mode, a front-panel USB 3.2 Gen 2×2 Type-C® header with up to 30W Power Delivery Fast-charge, and a multitude of other USB ports.
Networking capabilities are top-tier with an **Intel 2.5Gb Ethernet** port and the latest **Wi
