ASUS PRIME X870-P WIFI – Solid AM5 ATX Foundation with PCIe 5.0, Quad M.2, Wi-Fi 7, & USB4, USB Type-C,BIOS FlashBack
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASUS |
| Category | Mainstream Motherboard (Prime Series) |
| Model | PRIME X870-P WIFI |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
| Chipset | AMD X870 |
| Technical Specifications | |
| CPU Socket | AM5 (LGA 1718) for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series Processors Dual Channel Memory Architecture, ECC and Non-ECC, Un-buffered DIMM AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, supports x16 mode for Ryzen™ 9000/7000 Series; x8/x4 mode for Ryzen™ 8000 Series) 3 x PCIe 4.0 x16 slots (from Chipset, support x1 mode) |
| Storage Support | 4 x M.2 slots: 1 x M.2 2280 (Key M) (supports PCIe 5.0 x4 mode from CPU for Ryzen™ 9000/7000 Series; PCIe 4.0 x4 mode for Ryzen™ 8000 Series) 2 x M.2 2242/2260/2280 (Key M) (supports PCIe 4.0 x4 mode from Chipset) 1 x M.2 2280 (Key M) (supports PCIe 3.0 x2 mode from Chipset) 2 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports RAID 0/1/5/10 for PCIe NVMe (for Ryzen™ 9000 Series CPU) and RAID 0/1/10 for SATA. |

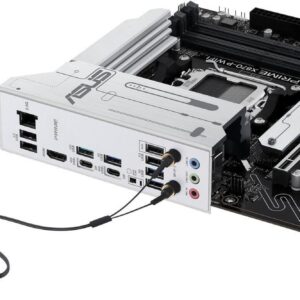

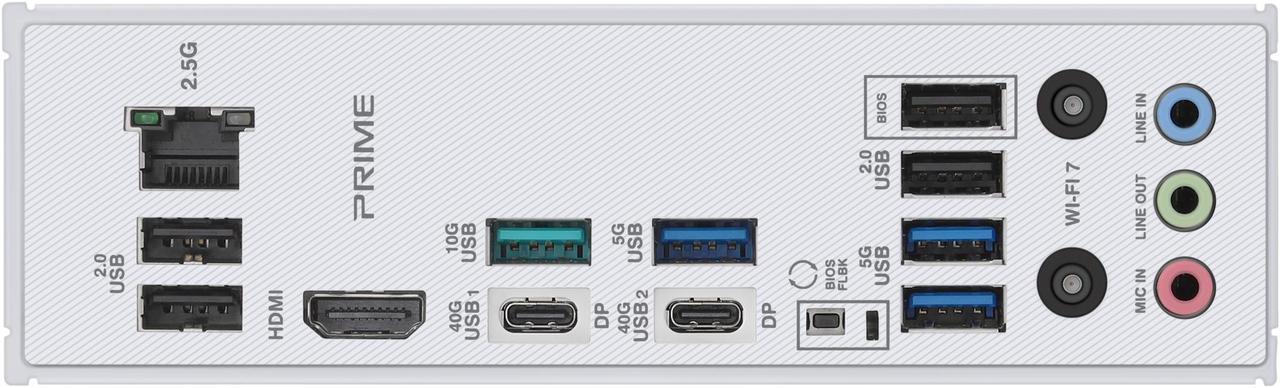

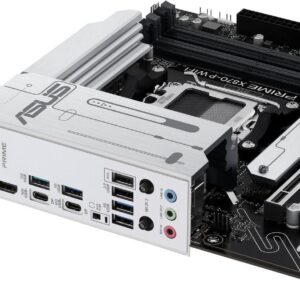

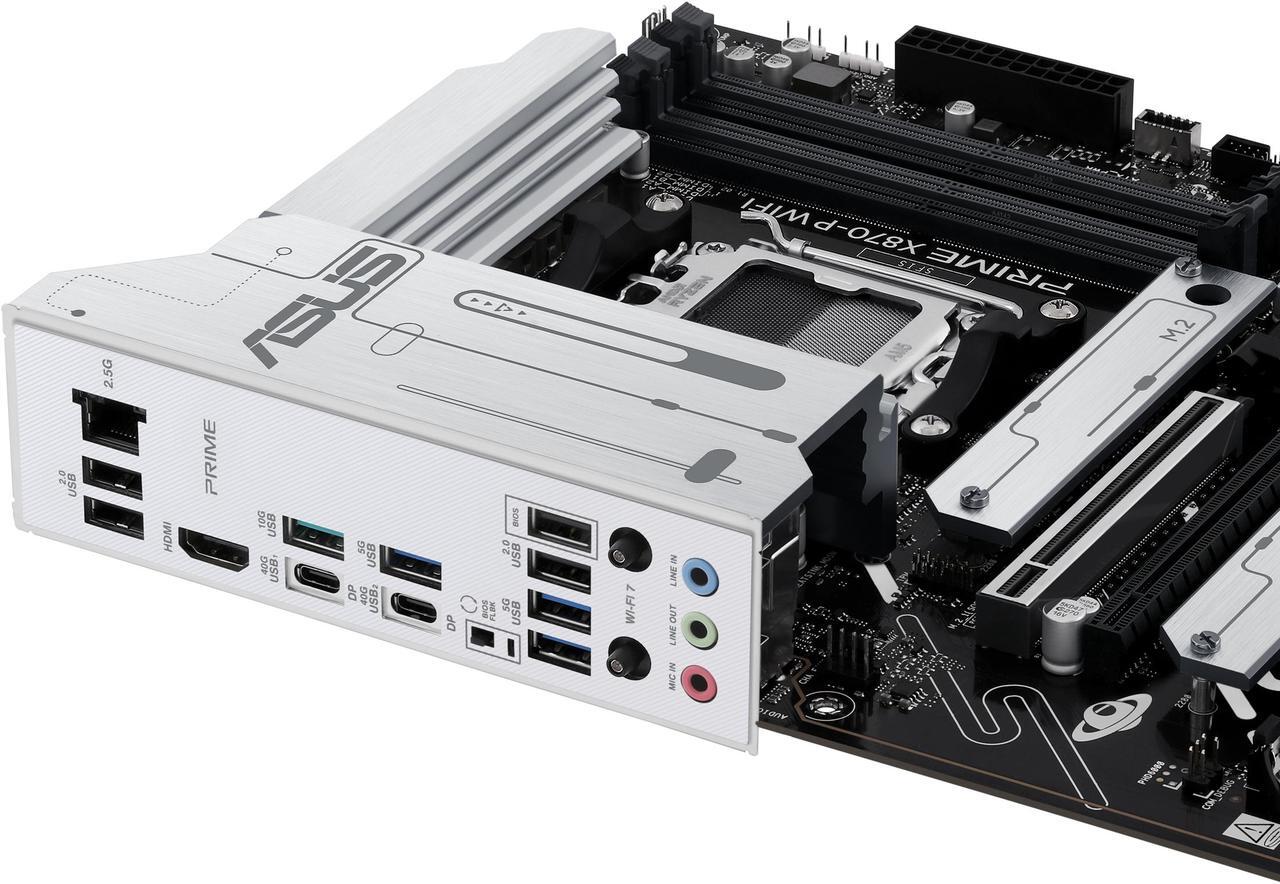

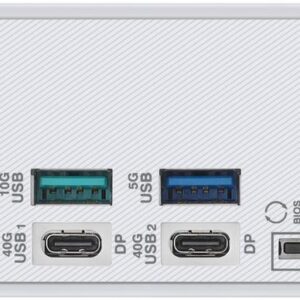

| USB Ports (Rear) | 2 x USB4® Type-C® ports (40Gbps, with DisplayPort™ Alt Mode) 1 x USB 3.2 Gen 2 Type-A port (10Gbps) 3 x USB 3.2 Gen 1 Type-A ports (5Gbps) 4 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2 connector (10Gbps, supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |

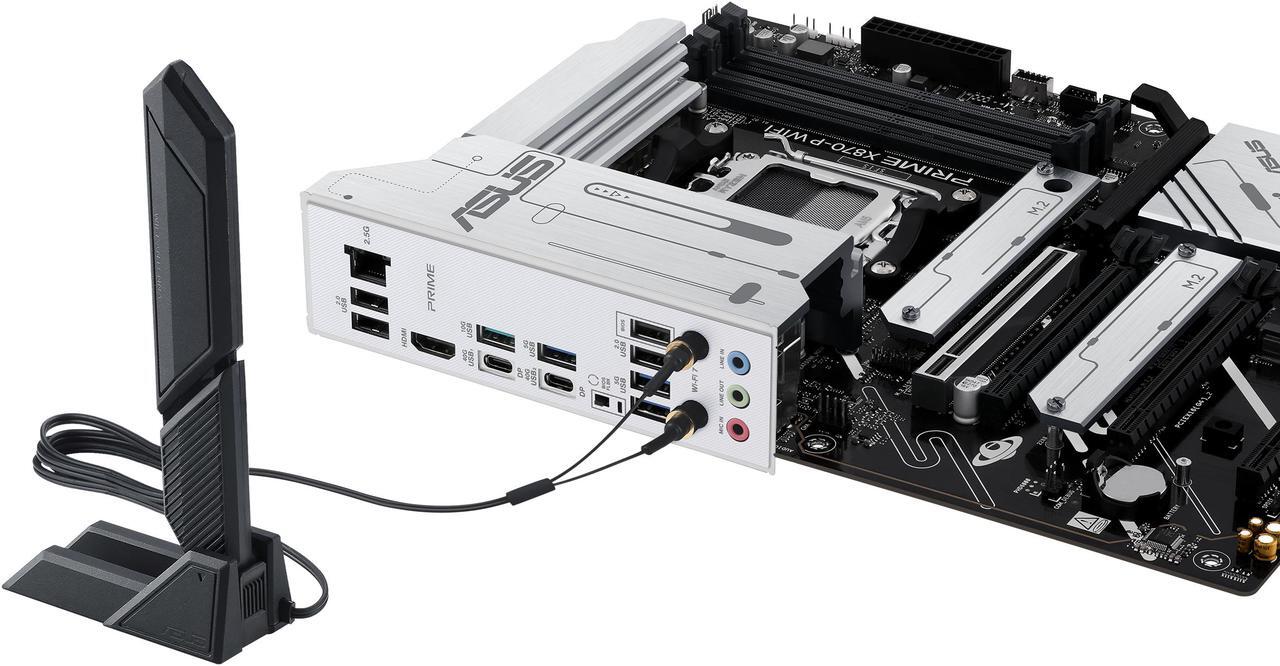

| Network | 1 x Realtek 2.5Gb Ethernet (with ASUS LANGuard) Wi-Fi 7 (802.11be), 2×2 Wi-Fi 7 (supports 2.4/5/6GHz frequency band, 160MHz bandwidth, up to 2.9Gbps transfer rate) Bluetooth® v5.4 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Power Delivery | 14(80A) + 2(80A) + 1(80A) Power Stages (DrMOS) Dual 8-pin +12V CPU Power Connectors Enlarged VRM heatsinks, 8-layer PCB |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O) ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) ASUS EZ DIY (BIOS FlashBack™ button, Pre-mounted I/O shield) ASUS AI Intelligence (AI Cooling II, AI Networking II) Aura Sync (3 x Addressable Gen 2 RGB headers, 1 x RGB header) |
| Display Output | 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1) 2 x USB4® Type-C® ports (supports max. 4K@60Hz via DisplayPort™ Alt Mode) |
| Operating System Support | Windows® 11 64-bit (Windows 11 24H2 or later recommended for full Wi-Fi 7 functionality) |

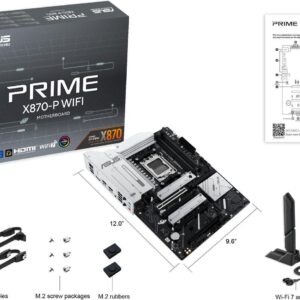

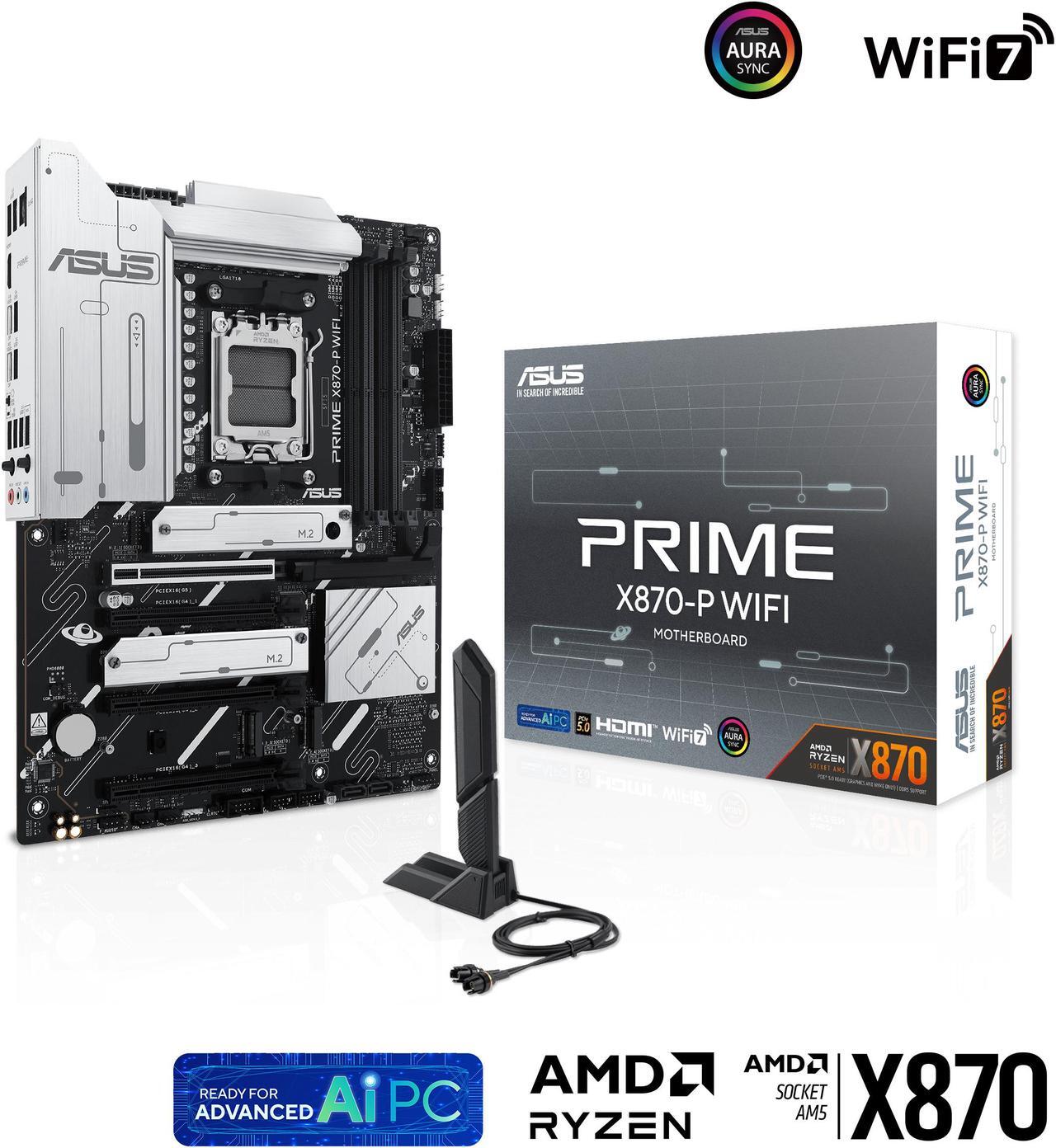

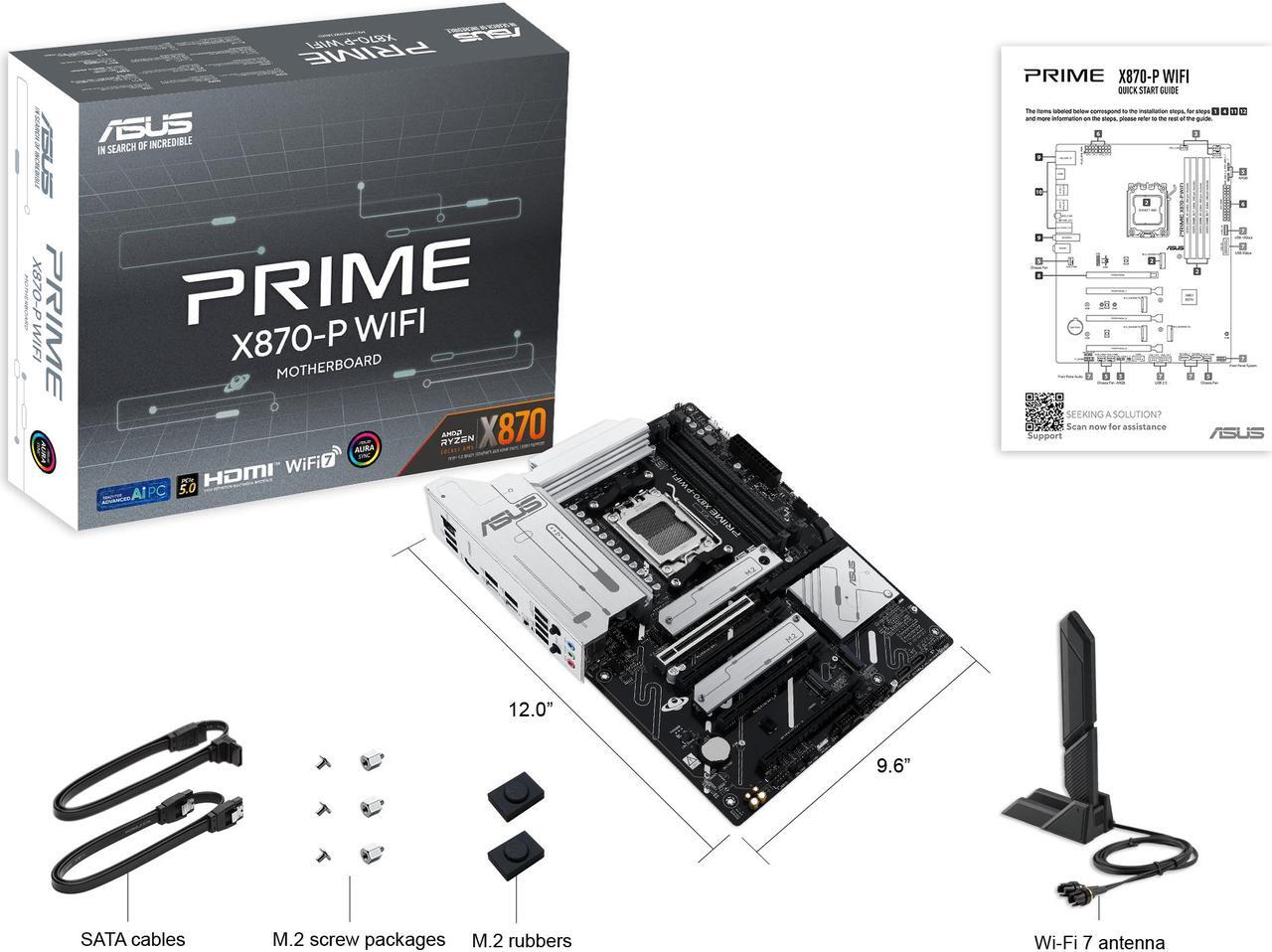

| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 rubber package, M.2 screw packages, Quick start guide |

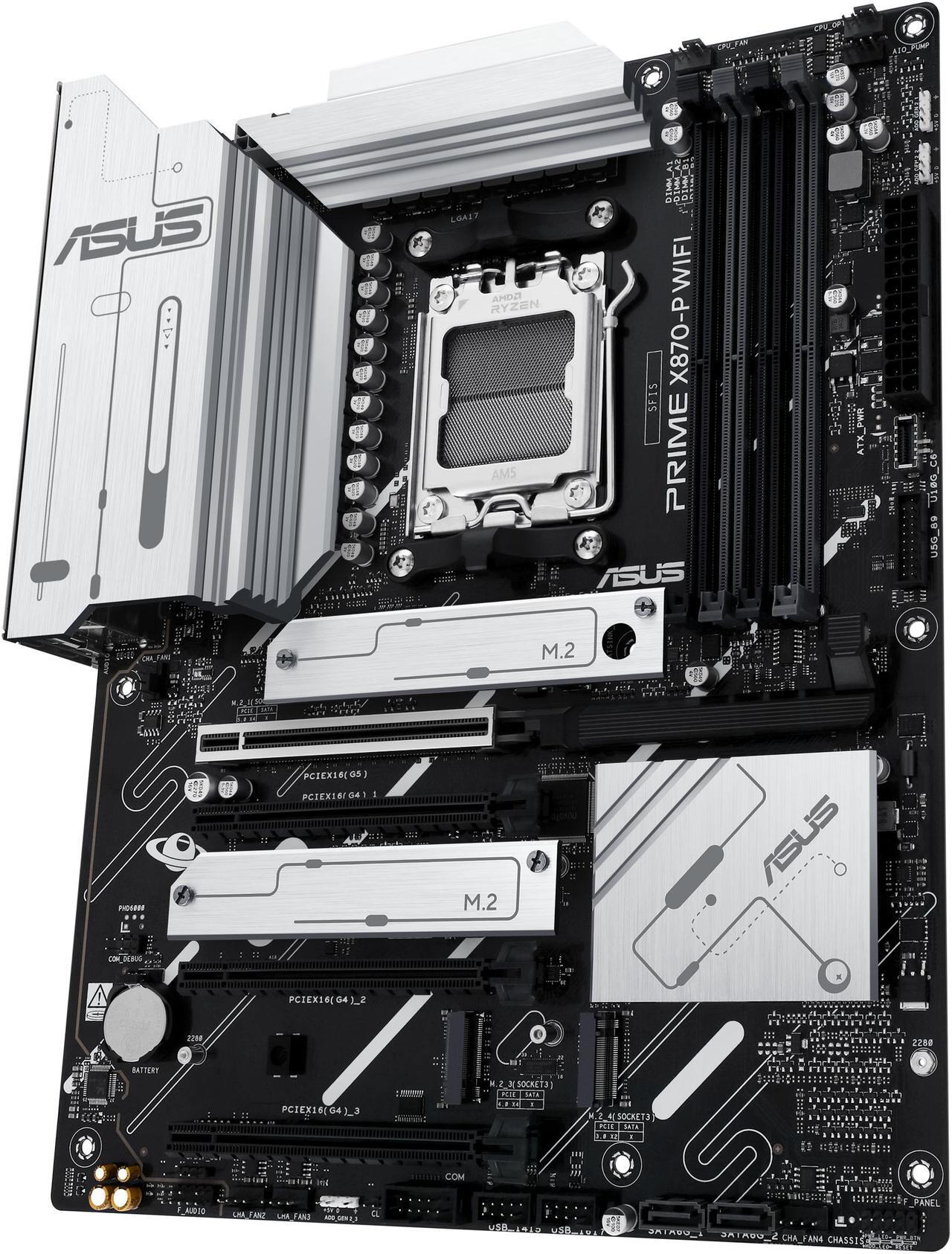

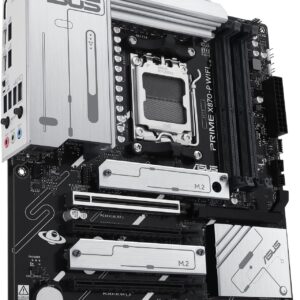

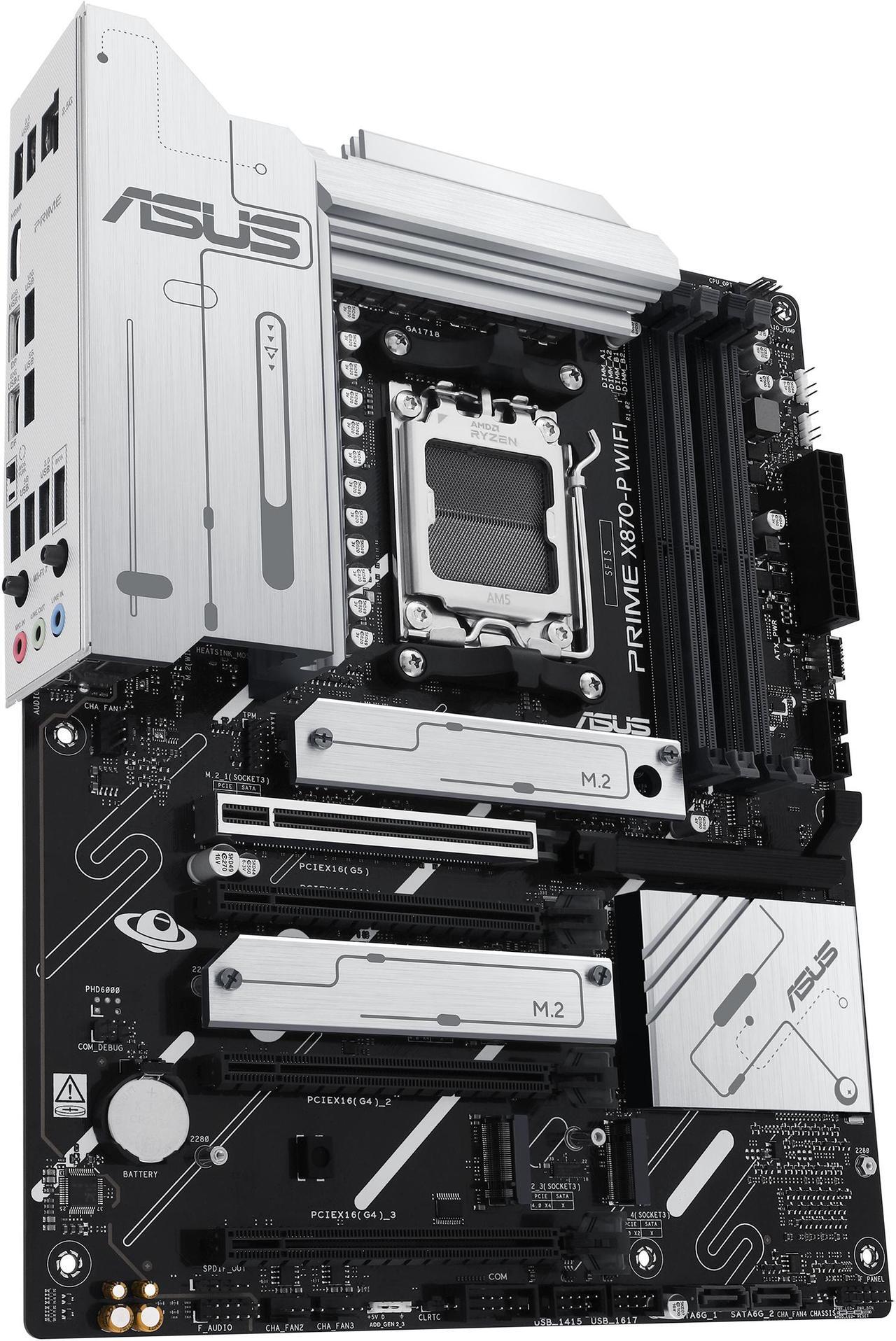

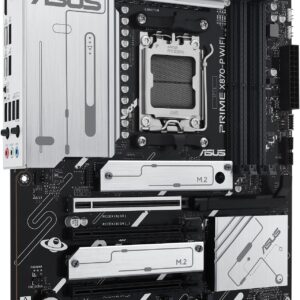

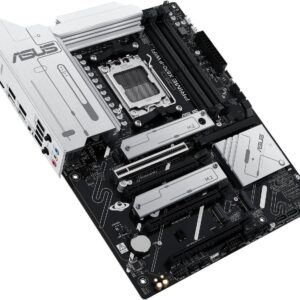

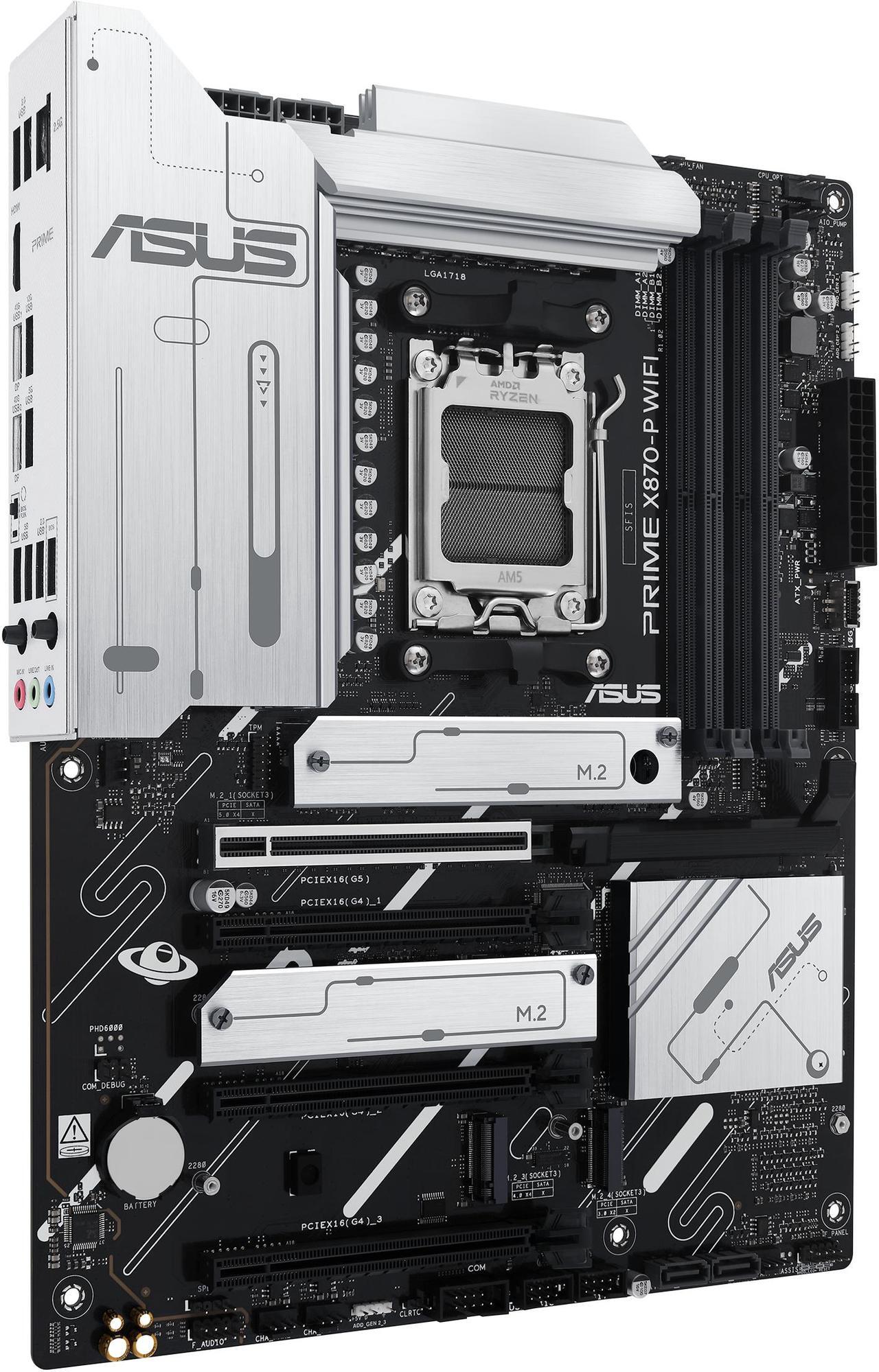

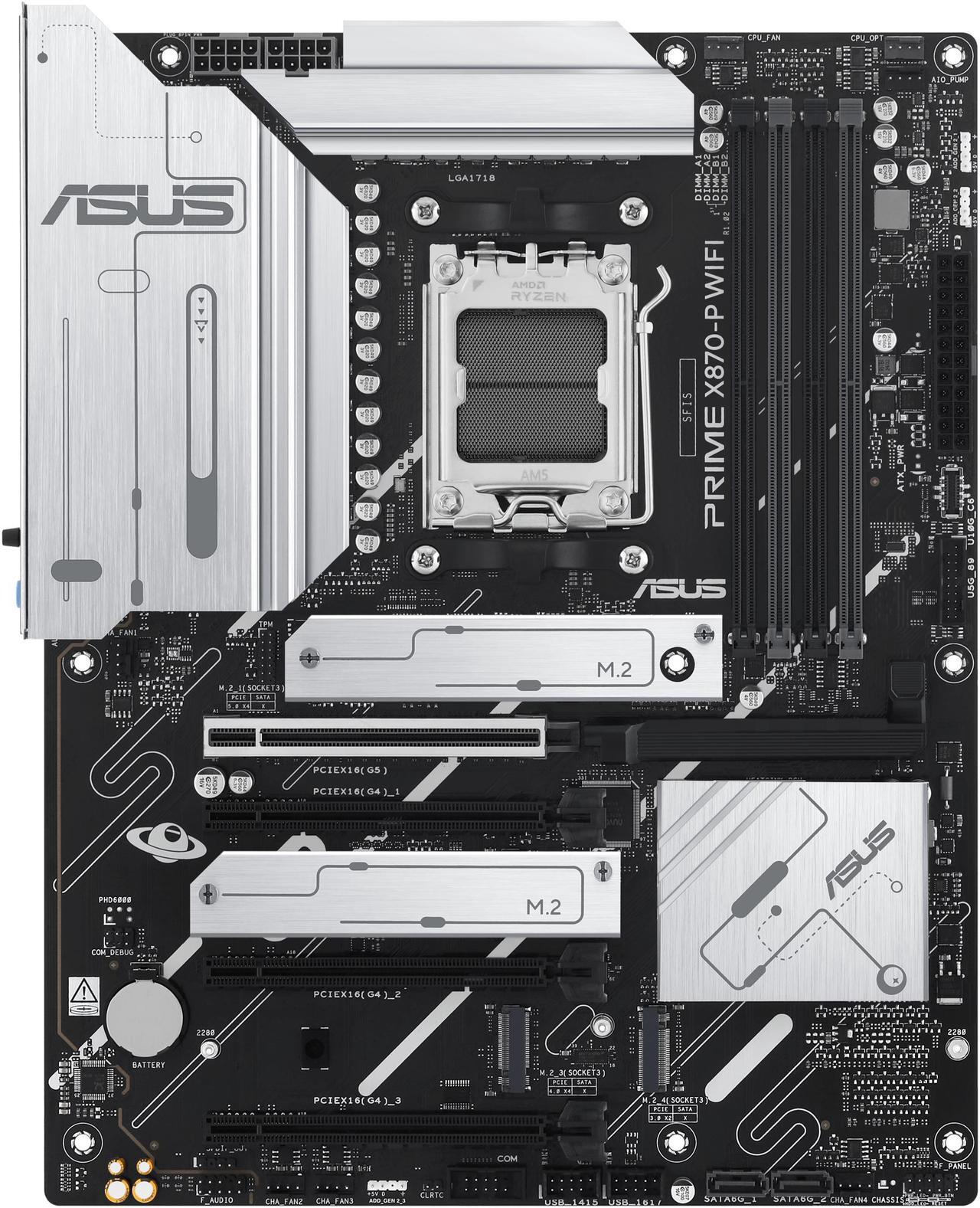

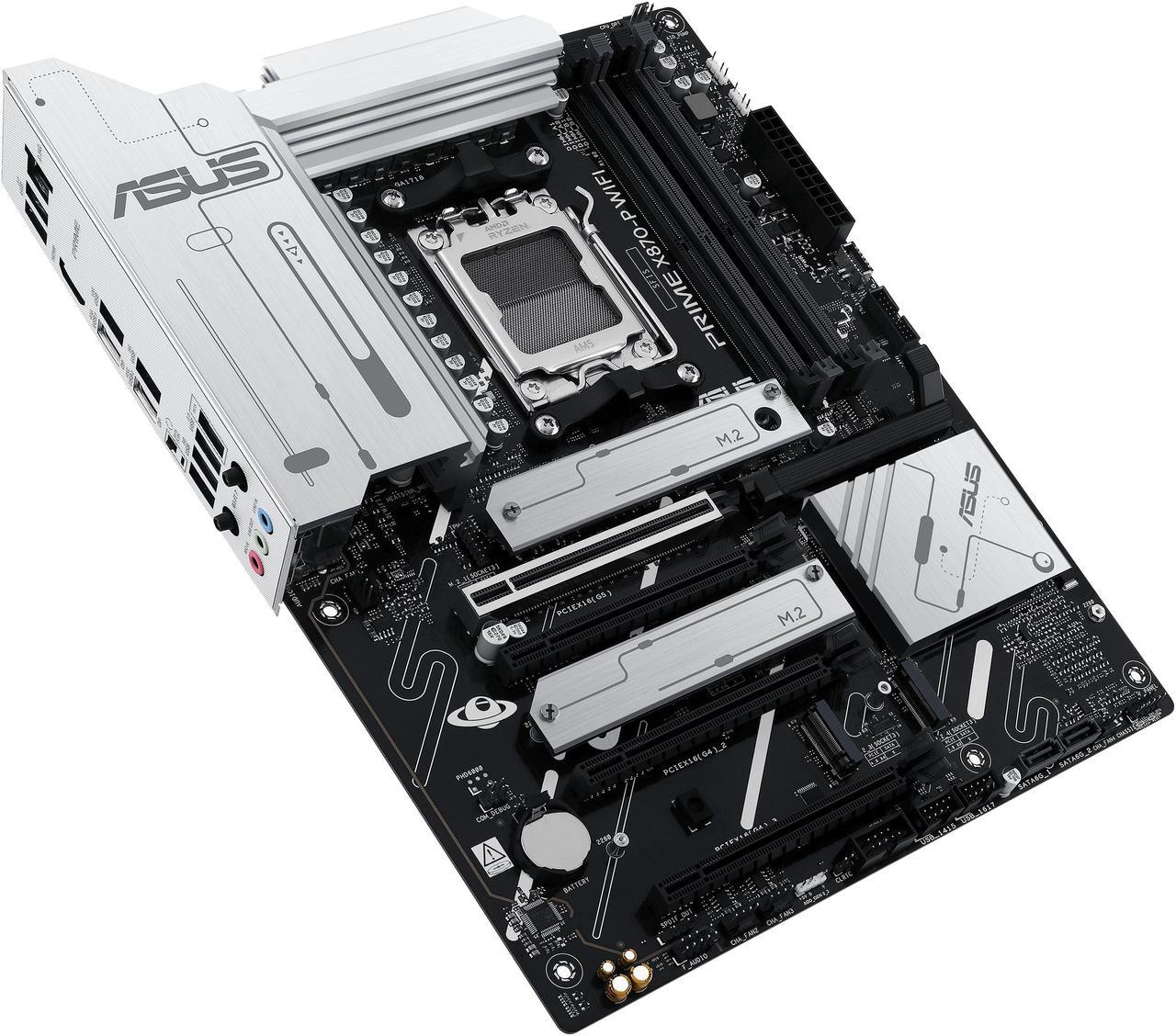

The ASUS PRIME X870-P WIFI is an ATX motherboard designed to serve as a reliable and feature-rich foundation for your AMD Ryzen™ AM5 system. Part of the ASUS Prime series, it focuses on offering a solid set of connectivity options, robust power delivery, and intelligent tuning capabilities for both general users and PC DIY enthusiasts.
It features a strong 14+2+1 power stage design, utilizing 80A DrMOS stages, complemented by enlarged VRM heatsinks to ensure stable power delivery to AMD’s latest Ryzen™ 9000, 8000, and 7000 series desktop processors. Memory support includes up to 192GB of DDR5, with speeds reaching over 8000 MT/s through AMD EXPO™ and ASUS AEMP, enabling high-performance memory configurations.
For storage, the PRIME X870-P WIFI provides ample room with **four M.2 slots**, including a primary PCIe 5.0 x4 slot for the fastest NVMe SSDs, two PCIe 4.0 x4 slots, and one PCIe 3.0 x2 slot, alongside two SATA 6Gb/s ports. The main graphics card slot is a reinforced PCIe 5.0 x16 SafeSlot, ready for the latest high-performance GPUs. Connectivity is robust, featuring **two USB4® Type-C® ports** on the rear I/O with 40Gbps bandwidth and DisplayPort™ Alt Mode. A front-panel USB 3.2 Gen 2 Type-C® header is also present for modern case connectivity. For networking, it includes a Realtek 2.5Gb Ethernet port and the very latest **Wi-Fi 7 (802.11be)** with Bluetooth 5.4, delivering high-speed and low-latency wireless and wired connections. ASUS’s AI Cooling II and AI Networking II features contribute to dynamic system optimization, while DIY-friendly elements like M.2 Q-Latch and PCIe Slot Q-Release simplify the build process. The PRIME X870-P WIFI is an excellent choice for users seeking a well-balanced and future-ready AM5 motherboard.
