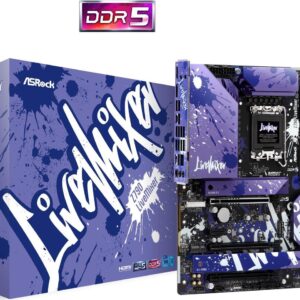

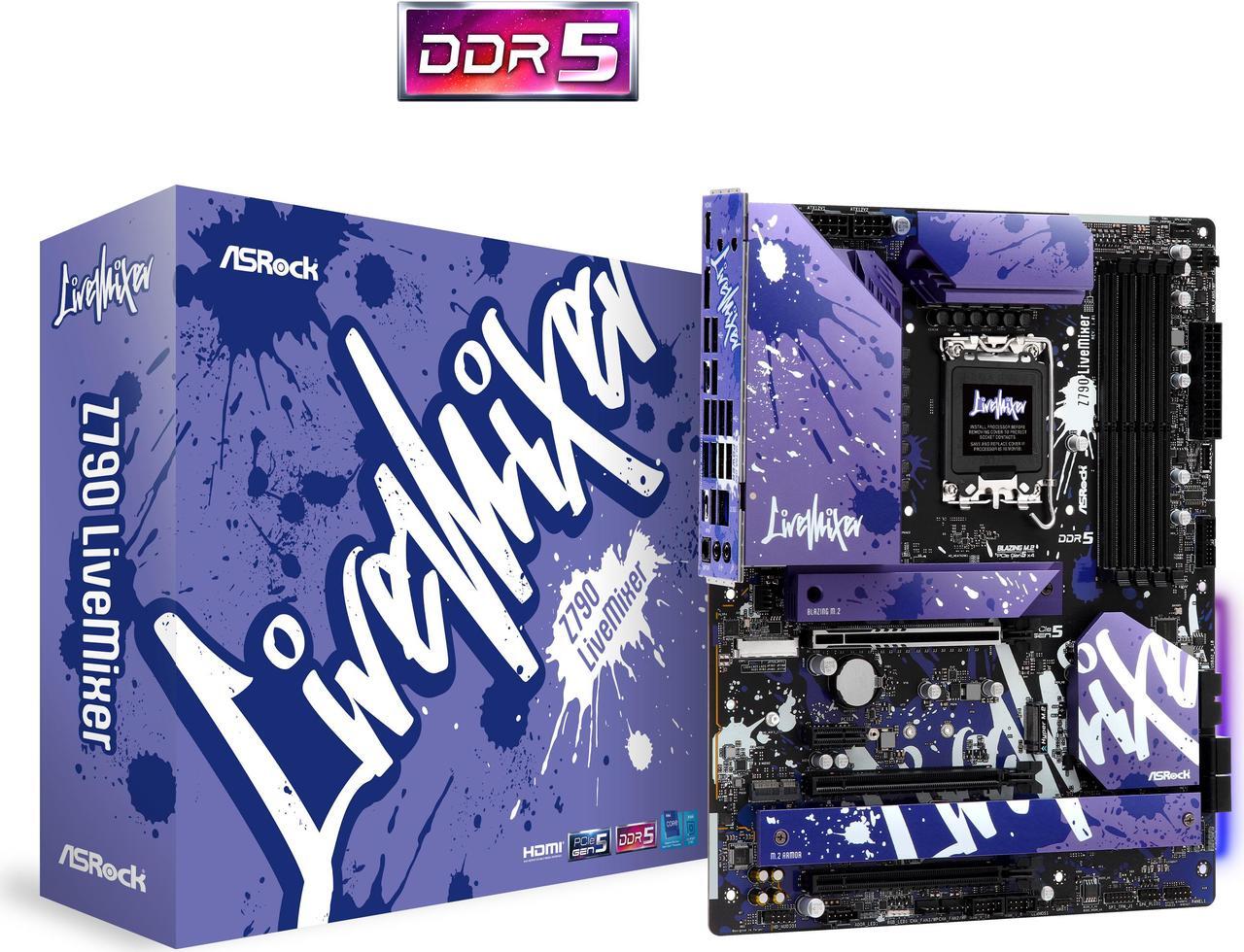

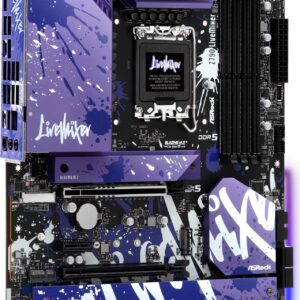

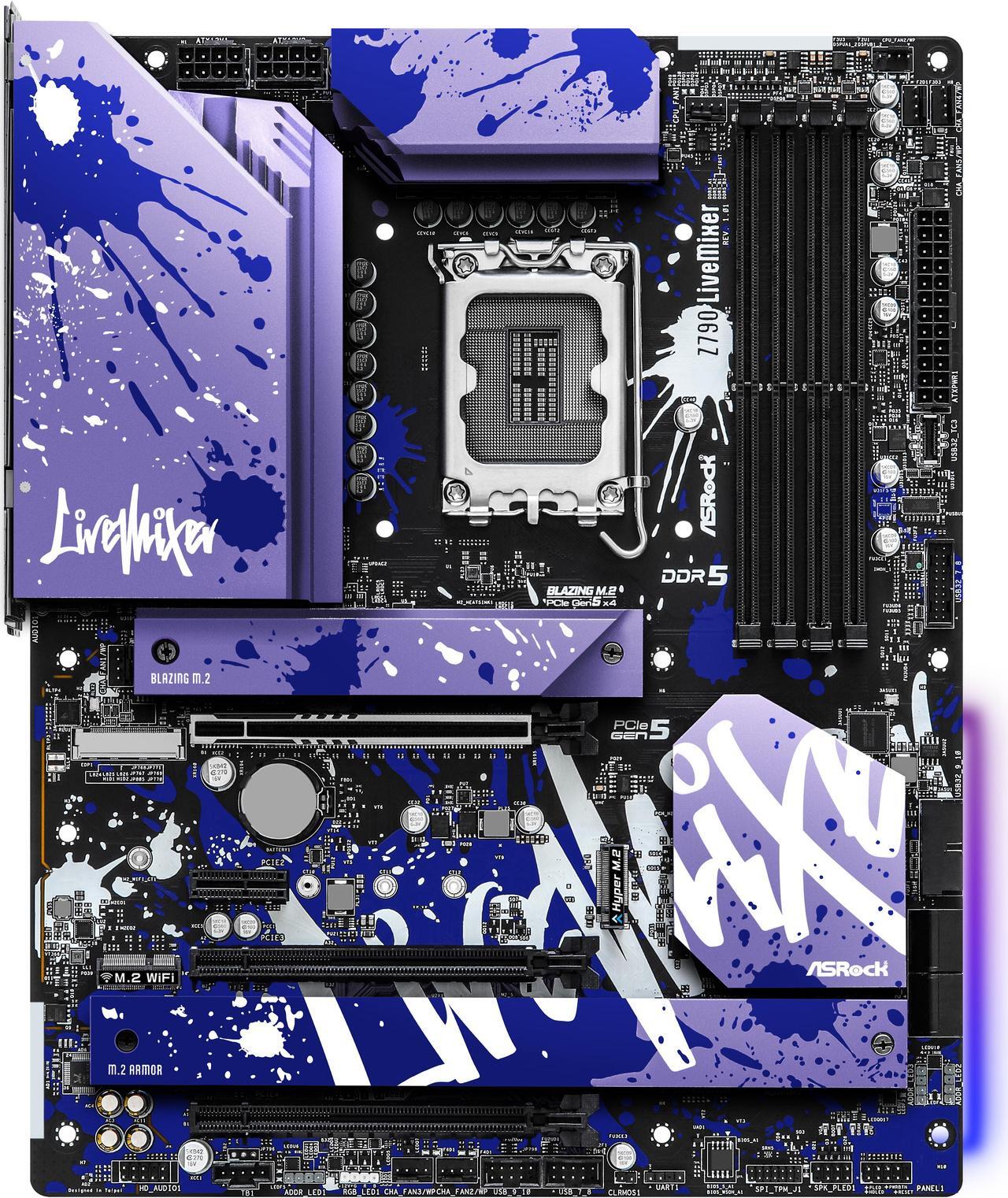

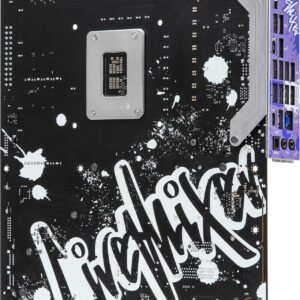

ASRock Z790 LiveMixer: ATX Motherboard for Intel 12th/13th/14th Gen CPUs with DDR5, 4x M.2 Slots (1x PCIe 5.0), PCIe 5.0 x16, Numerous USB Ports, Dual LAN (2.5GbE + 1GbE), Wi-Fi 6E
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | LiveMixer / Creator Series ATX Motherboard |
| Model | Z790 LiveMixer |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Chipset | Intel® Z790 Express Chipset |
| Technical Specifications | |
| CPU Socket | LGA 1700 for Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Supports up to 7000+(OC) MHz Dual Channel Memory Architecture, Intel® Extreme Memory Profile (XMP) 3.0 |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, with Steel Slot Gen5) 1 x PCIe 4.0 x16 slot (from Chipset, supports x4 mode) 1 x PCIe 3.0 x1 slot (from Chipset) |
| Storage Support | Total 4 x M.2 slots: 1 x Blazing M.2 (PCIe 5.0 x4, type 2280) – CPU connected 3 x Hyper M.2 (PCIe 4.0 x4, type 2280/2260) – Chipset connected 8 x SATA 6Gb/s ports Supports RAID 0, 1, 5, 10 for NVMe and SATA storage devices |

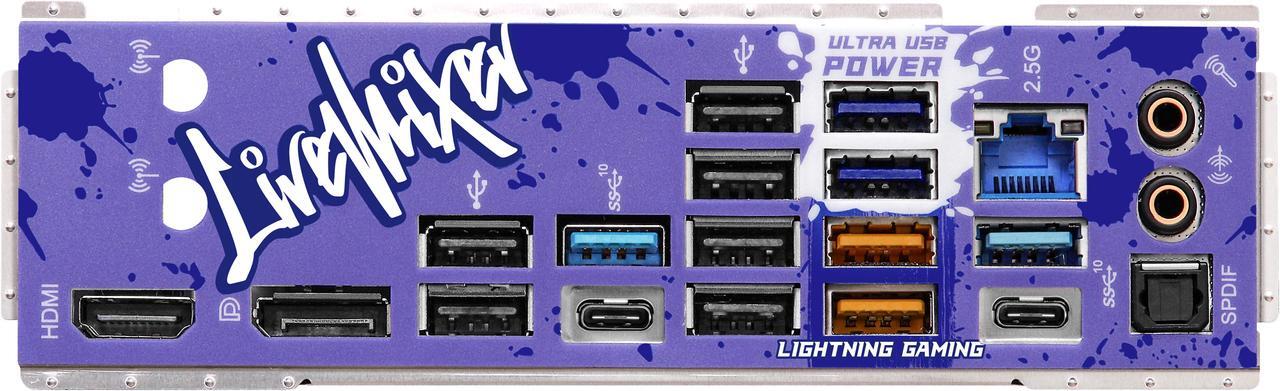

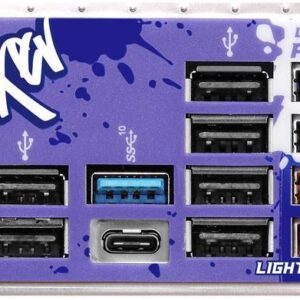

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2×2 Type-C® port (20Gbps) 1 x USB 3.2 Gen 2 Type-A port (10Gbps) 13 x USB 3.2 Gen 1 Type-A ports (5Gbps) 1 x USB 2.0/1.1 Type-A port |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2×2 Type-C® header (20Gbps) 2 x USB 3.2 Gen 1 headers (support 4 additional USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | 1 x Dragon RTL8125BG 2.5GbE LAN chip 1 x Intel® I219V 1GbE LAN chip Intel® Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax) 2×2 with MU-MIMO (2.4/5/6GHz tri-band) Bluetooth® v5.2 |
| Audio | Realtek® ALC897 Audio Codec 7.1-Channel High Definition Audio Nahimic Audio Supports S/PDIF Out |
| Power Delivery | 14+1+1 Power Phase Design Dr.MOS for VCore+GT 8-pin + 4-pin ATX 12V power connectors |
| Cooling Features | Large Aluminum Alloy Heatsinks Full Coverage M.2 Heatsink Multiple Temperature Sensors FANtastic Tuning & Auto Detect Fan |
| Special Features | ASRock Steel Slot Gen5 (for PCIe 5.0 x16 slot) ASRock Auto Driver Installer Flashback BIOS Button Polychrome RGB Pre-installed I/O Shield Multiple USB Ports for Peripherals |
| Display Output | 1 x HDMI™ port (Supports max. 4096×2160@60Hz) 1 x DisplayPort™ 1.4 (Supports max. 5120×2880@120Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws, Software CD, Documentation. (Contents may vary by region). |
| The **ASRock Z790 LiveMixer** is an ATX motherboard specifically engineered for content creators, streamers, and live mixers who require extensive connectivity and robust performance. Built on the **Intel Z790 chipset** and supporting Intel’s 12th, 13th, and 14th generation Core processors via the **LGA 1700 socket**, it stands out with its exceptionally high number of USB ports.
It features a strong **14+1+1 Power Phase Design with Dr.MOS**, ensuring stable and efficient power delivery crucial for demanding tasks. Memory support includes **DDR5 RAM up to 7000MHz (OC)** across four DIMM slots. Storage is ample with a cutting-edge **PCIe 5.0 x4 M.2 slot** (Blazing M.2) for ultra-fast SSDs, alongside three additional PCIe 4.0 x4 M.2 slots (Hyper M.2), and eight SATA 6Gb/s ports. The board’s most distinctive feature is its **16 total USB ports on the rear I/O**, including USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, and a remarkable 13 USB 3.2 Gen 1 ports, providing unparalleled connectivity for all your peripherals, audio interfaces, and capture cards. Networking is robust with **dual LAN (2.5GbE and 1GbE)** and **Intel Wi-Fi 6E AX211** for reliable multi-gigabit wired and tri-band wireless connections. The Z790 LiveMixer is a powerful and versatile platform designed to meet the high demands of professional content creation workflows. |
|
