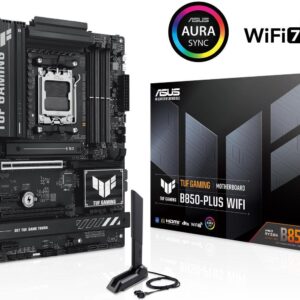

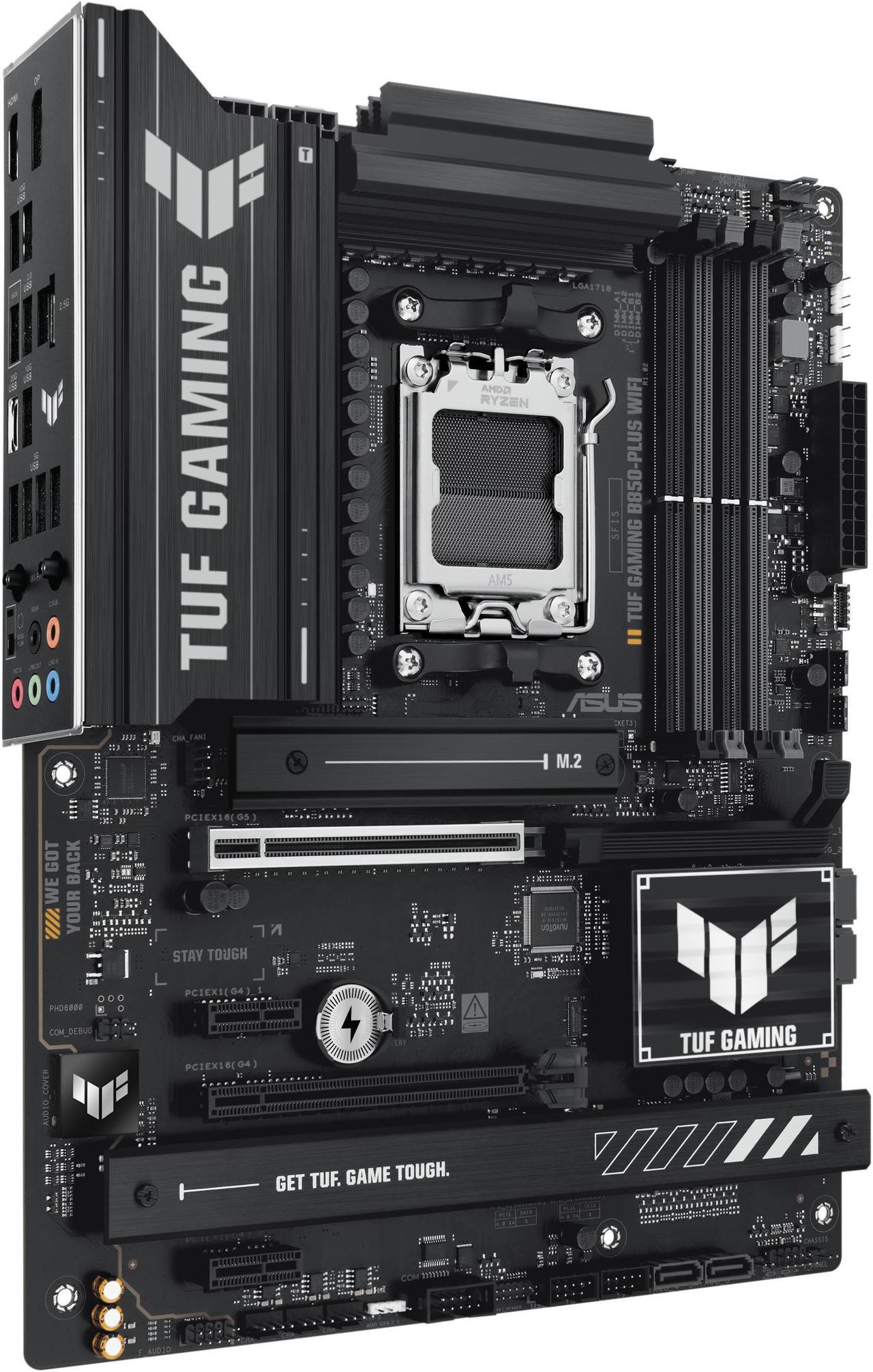

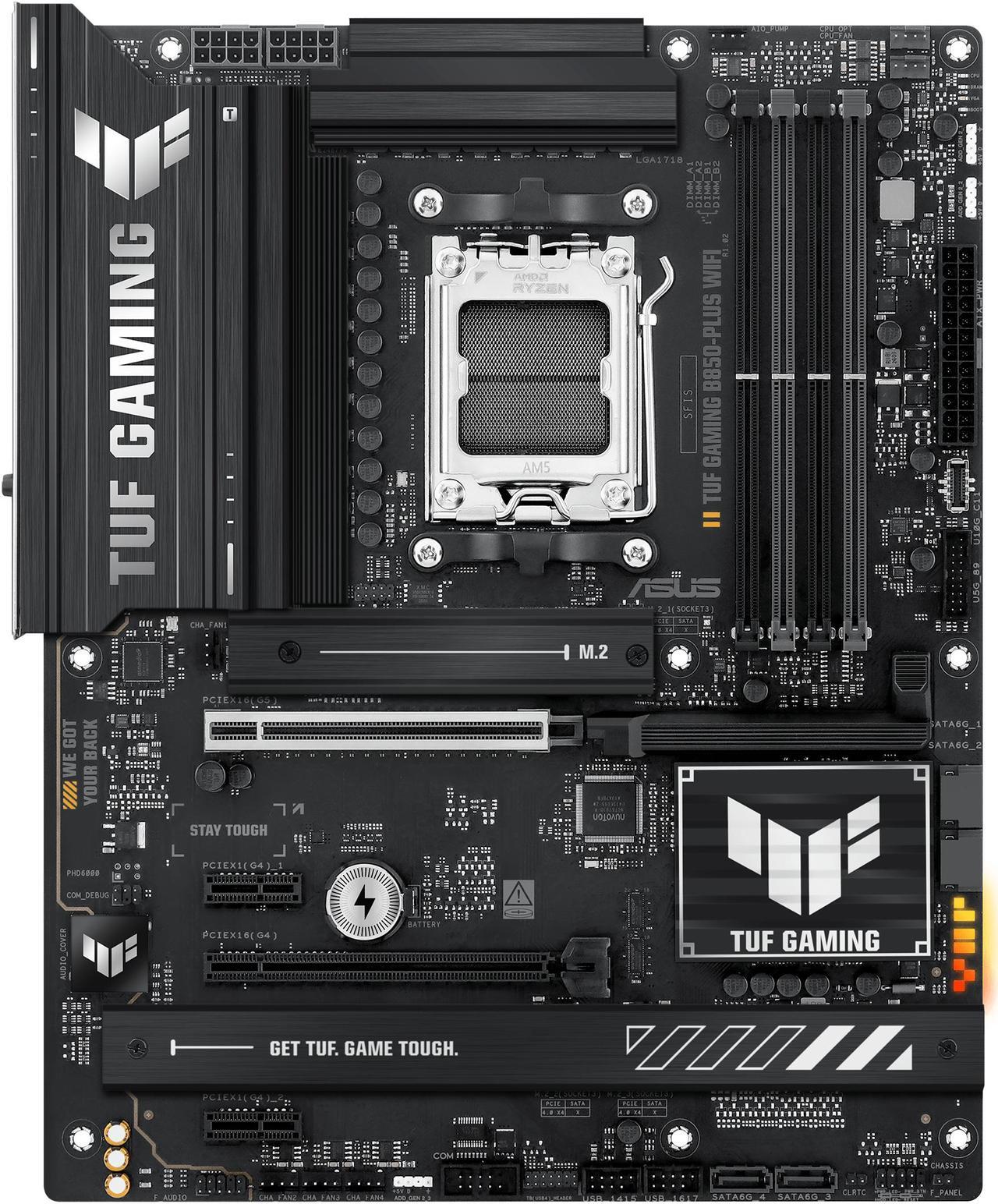

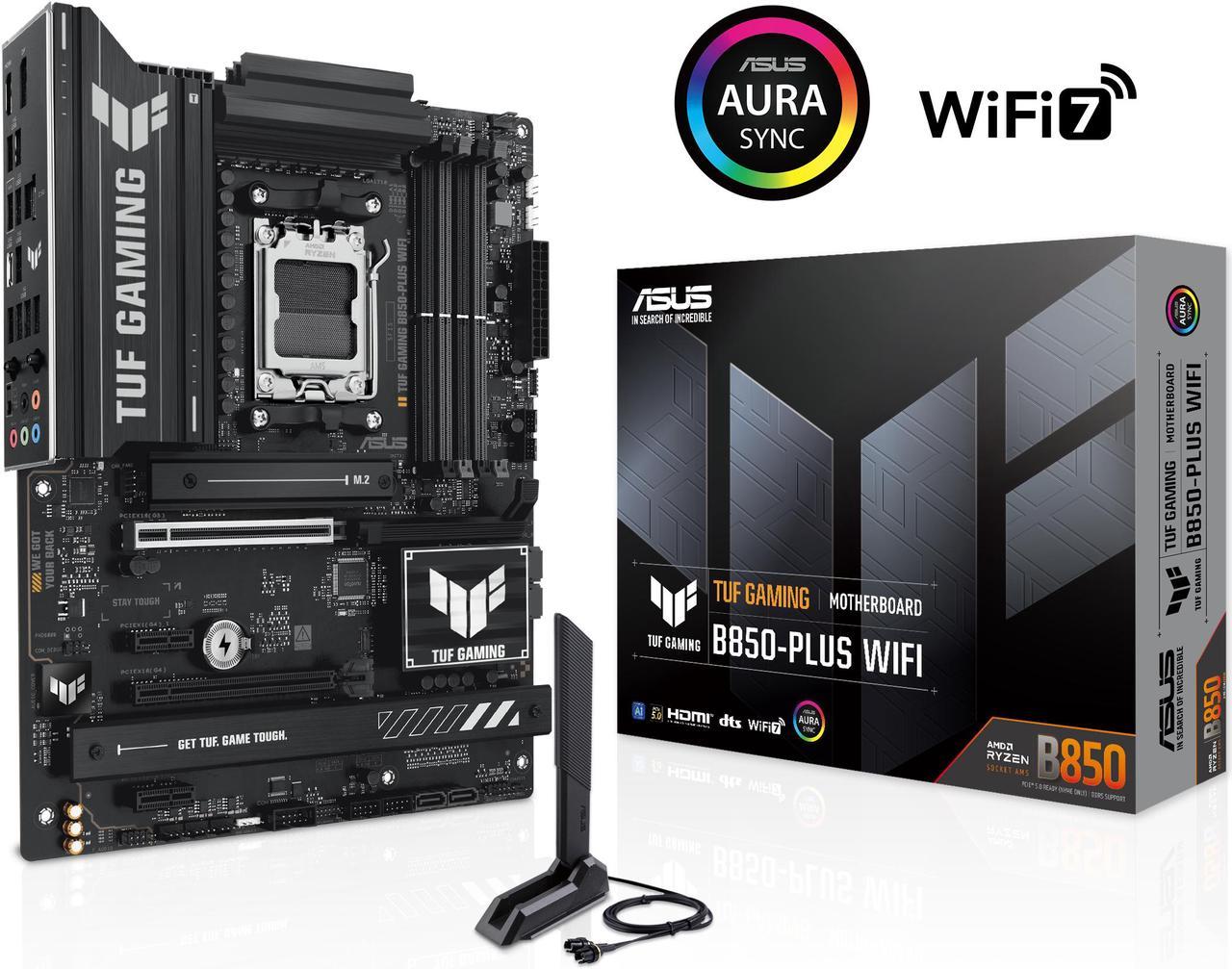

ASUS TUF GAMING B850-PLUS WIFI: AM5, AMD B850, DDR5 8000+(OC), PCIe 5.0, Wi-Fi 7, 2.5GbE LAN ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASUS TUF GAMING |
| Category | TUF GAMING PLUS Series ATX Motherboard (Durable Gaming) |
| Model | TUF GAMING B850-PLUS WIFI |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ Desktop Processors (9000 / 8000 / 7000 Series) |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Dual Channel Memory Architecture, Supports AMD EXPO™ & AEMP Supports Memory Overclocking up to 8000+ MT/s |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot (from CPU) 1 x PCIe 4.0 x16 slot (supports x4 mode, from Chipset) 2 x PCIe 4.0 x1 slots (from Chipset) |
| Storage Support | Total 3 x M.2 slots: 1 x M.2 2280 (PCIe 5.0 x4, from CPU) 1 x M.2 2242/2260/2280/22110 (PCIe 4.0 x4, from Chipset) 1 x M.2 2280 (PCIe 4.0 x4, from Chipset) 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

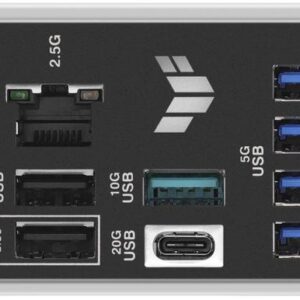

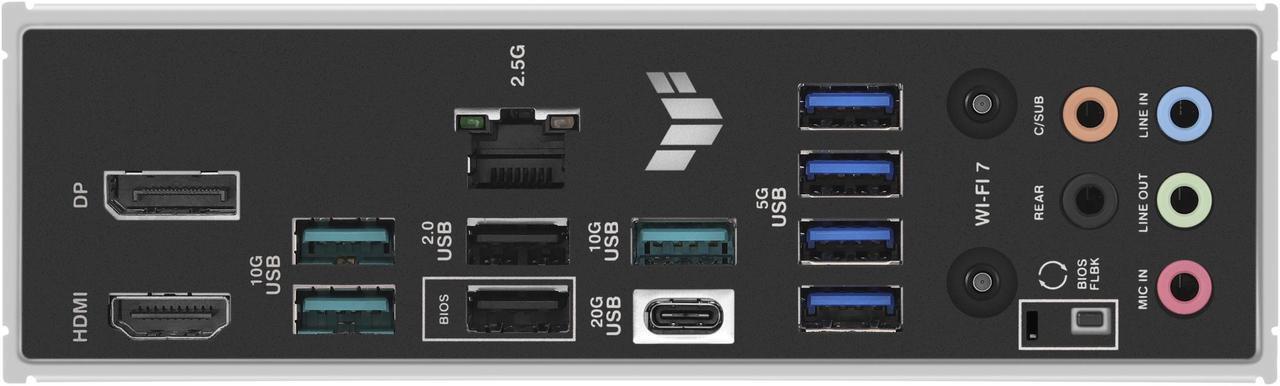

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2×2 Type-C® port (20Gbps) 2 x USB 3.2 Gen 2 Type-A ports (10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 2 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2 Type-C® connector (10Gbps) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 5Gbps ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) 1 x Thunderbolt™ (USB4®) Header |
| Network | 1 x Realtek® 2.5Gb Ethernet port Wi-Fi 7 (802.11be) Bluetooth® v5.4 |
| Audio | Realtek ALC1220P Audio Codec Exclusive DTS Audio Processing, TUF Gaming Audio Cover, Audio Shielding, Dedicated Audio PCB Layers, Premium Audio Capacitors, Unique De-pop Circuit |
| Power Delivery | 14+2+1 Power Stages (80A each) Premium power stages with enlarged VRM heatsinks ProCool Power Connectors, TUF Components (military-grade chokes and capacitors), Digi+VRM Control |
| Cooling Features | VRM Heatsinks, M.2 Heatsinks CPU/CPU OPT Fan Headers & AIO Pump Header Chipset Heatsink, Multiple Chassis Fan Headers Fan Xpert 4 |
| Special Features | TUF GAMING Protection (DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+) DIY Friendly Design (PCIe Slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED, BIOS Flashback™ Button, Pre-mounted I/O Shield) Aura Sync RGB lighting control (Addressable Gen 2 RGB Headers) AI Advisor, TUF GAMING Alliance |
| Display Output | 1 x DisplayPort™ 1 x HDMI™ *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit (Assumed) |

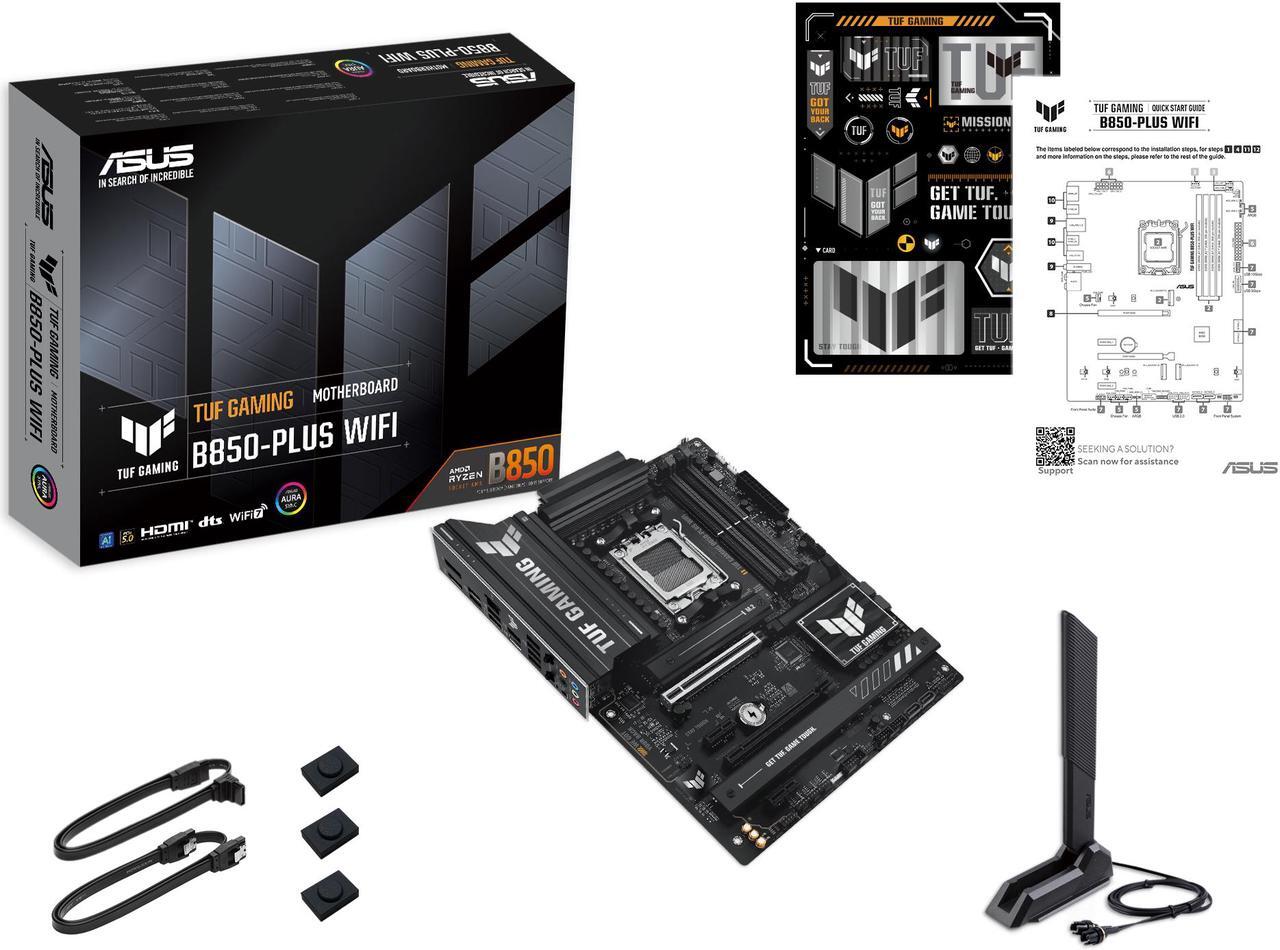

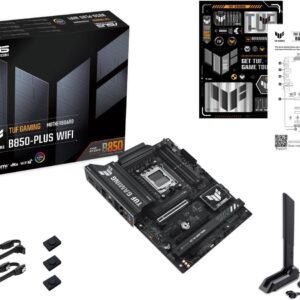

| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Q-Latch, User Manual, TUF Gaming Stickers, Cable Ties. (Contents may vary by region). |
| The **ASUS TUF GAMING B850-PLUS WIFI** is a durable ATX gaming motherboard designed for AMD Ryzen™ Desktop Processors on the AM5 platform, emphasizing stability, reliability, and game-ready functionality. Based on the **AMD B850 chipset**, it features military-grade components and a robust power solution.
This board boasts a **14+2+1 power stage design (80A)** with enlarged VRM heatsinks and ProCool power connectors, ensuring stable power delivery for demanding CPUs. It supports **DDR5 memory across four DIMM slots**, with overclocking speeds up to 8000+ MT/s. For graphics, it includes a **PCIe 5.0 x16 SafeSlot** and additional PCIe 4.0 slots. Storage capabilities are strong with **three M.2 slots** (one PCIe 5.0 x4 and two PCIe 4.0 x4, including one 22110-length slot), all benefiting from heatsinks, and four SATA 6Gb/s ports. Connectivity is excellent with a **Realtek® 2.5Gb Ethernet port**, integrated **Wi-Fi 7**, and Bluetooth 5.4. The comprehensive USB suite includes a 20Gbps USB 3.2 Gen 2×2 Type-C® port on the rear and a Thunderbolt™ (USB4®) header for versatile expansion. With its comprehensive cooling, TUF Gaming Protection features, and DIY-friendly designs, the TUF GAMING B850-PLUS WIFI provides a solid and reliable foundation for a high-performance gaming PC. |
|
