ASUS ROG Strix Z790-H Gaming WiFi: Z790 ATX Gaming Motherboard with Intel 12th-14th Gen Support, PCIe 5.0, DDR5, Four M.2 Slots, Wi-Fi 6E & 2.5Gb Ethernet
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASUS (Republic of Gamers – ROG) |
| Category | Gaming / Enthusiast ATX Motherboard |
| Model | ROG Strix Z790-H Gaming WiFi |
| Form Factor | ATX |
| Chipset | Intel® Z790 |
| Technical Specifications | |
| CPU Socket | LGA 1700 for Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Supports up to 7800+(OC) MT/s Dual Channel Memory Architecture, Intel® Extreme Memory Profile (XMP) OptiMem II |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, SafeSlot) 1 x PCIe 4.0 x16 slot (from Chipset, supports x4 or x4/x4 mode) 1 x PCIe 3.0 x1 slot (from Chipset) |
| Storage Support | 4 x M.2 slots (Key M): 1 x M.2 2242/2260/2280/22110 (from CPU, PCIe 4.0 x4) 2 x M.2 2242/2260/2280 (from Chipset, PCIe 4.0 x4) 1 x M.2 2242/2260/2280/22110 (from Chipset, PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology for PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |

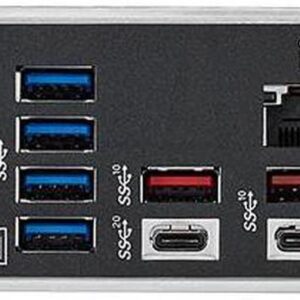

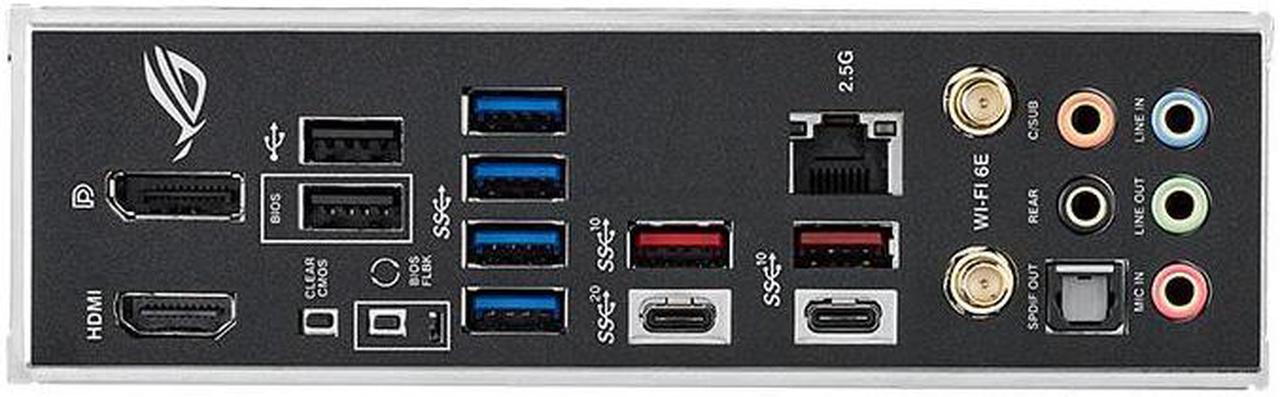

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C® port (20Gbps) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 2 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) 1 x Thunderbolt™ (USB4®) Header |
| Network | 1 x Intel® 2.5Gb Ethernet (with ASUS LANGuard) Wi-Fi 6E (802.11ax, 2×2, supports 2.4/5/6GHz frequency bands) Bluetooth® v5.3 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A Savitech SV3H712 AMP, Impedance Sense for front and rear headphone outputs Premium Audio Capacitors, SupremeFX Shielding Technology, S/PDIF Optical out port |
| Power Delivery | 16 + 1 Power Stages (rated for 80A each) Dual ProCool II Power Connectors (2 x 8-pin +12V) High-quality alloy chokes, Durable capacitors, Six-layer PCB |
| Special Features | ASUS Q-Design (PCIe Slot Q-Release, M.2 Q-Latch, Q-DIMM, Q-LED) ASUS Thermal Solution (VRM heatsinks with L-shaped heatpipe, M.2 heatsinks, M.2 Combo-sink and backplate on topmost slot, AIO Pump header, Chipset heatsink) ASUS EZ DIY (BIOS FlashBack™ button, Clear CMOS button, Pre-mounted I/O shield) Aura Sync RGB lighting (3 x Addressable Gen 2 headers, 1 x Aura RGB header) AI Overclocking, AI Cooling II, Two-Way AI Noise Cancellation, GameFirst VI |
| Display Output | 1 x DisplayPort™ (supports max. 8K@60Hz) 1 x HDMI® port (supports 4K@60Hz) *Graphics specifications vary between CPU types. Requires a CPU with integrated graphics. |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Bundled Accessories | ASUS Wi-Fi moving antenna, SATA cables, M.2 screw packages, M.2 rubber packages, Thermal pad for M.2, Cable ties, ROG key chain, ROG Strix stickers, ROG thank you card, Quick start guide, Documentation |

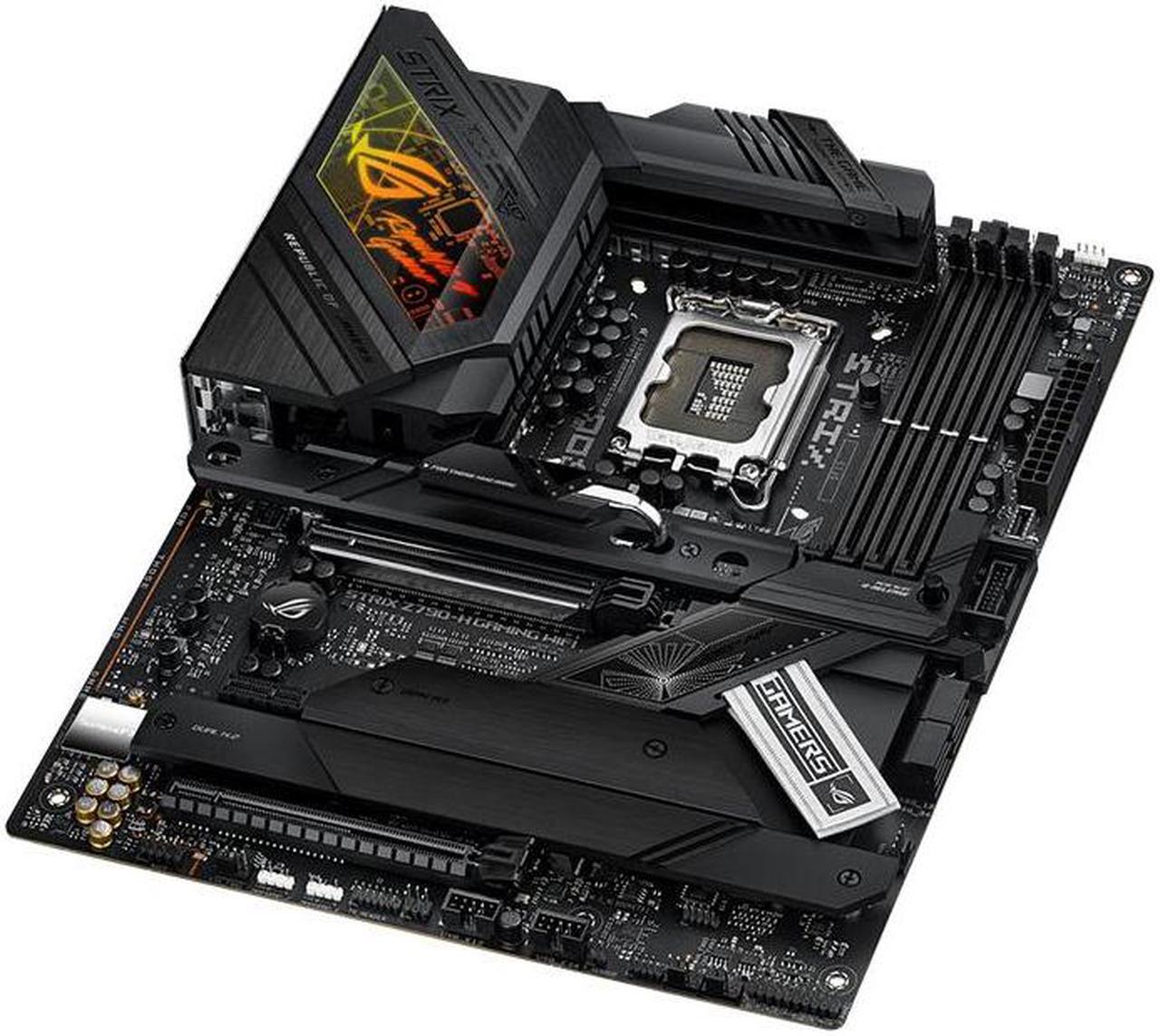

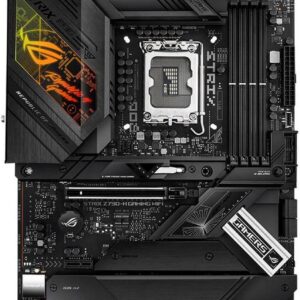

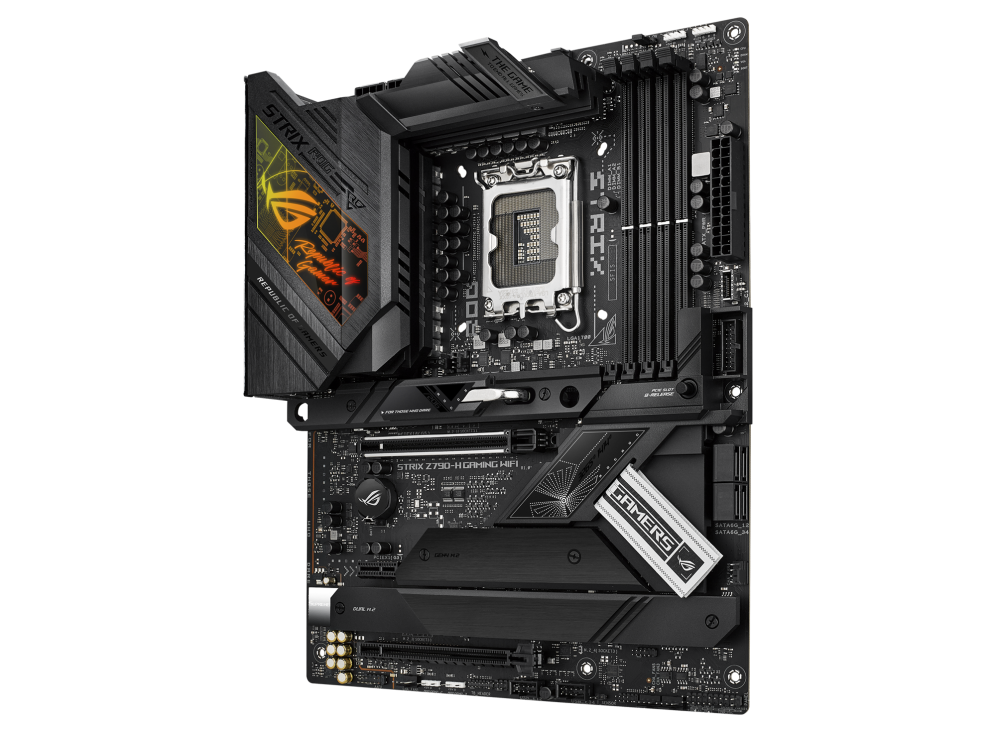

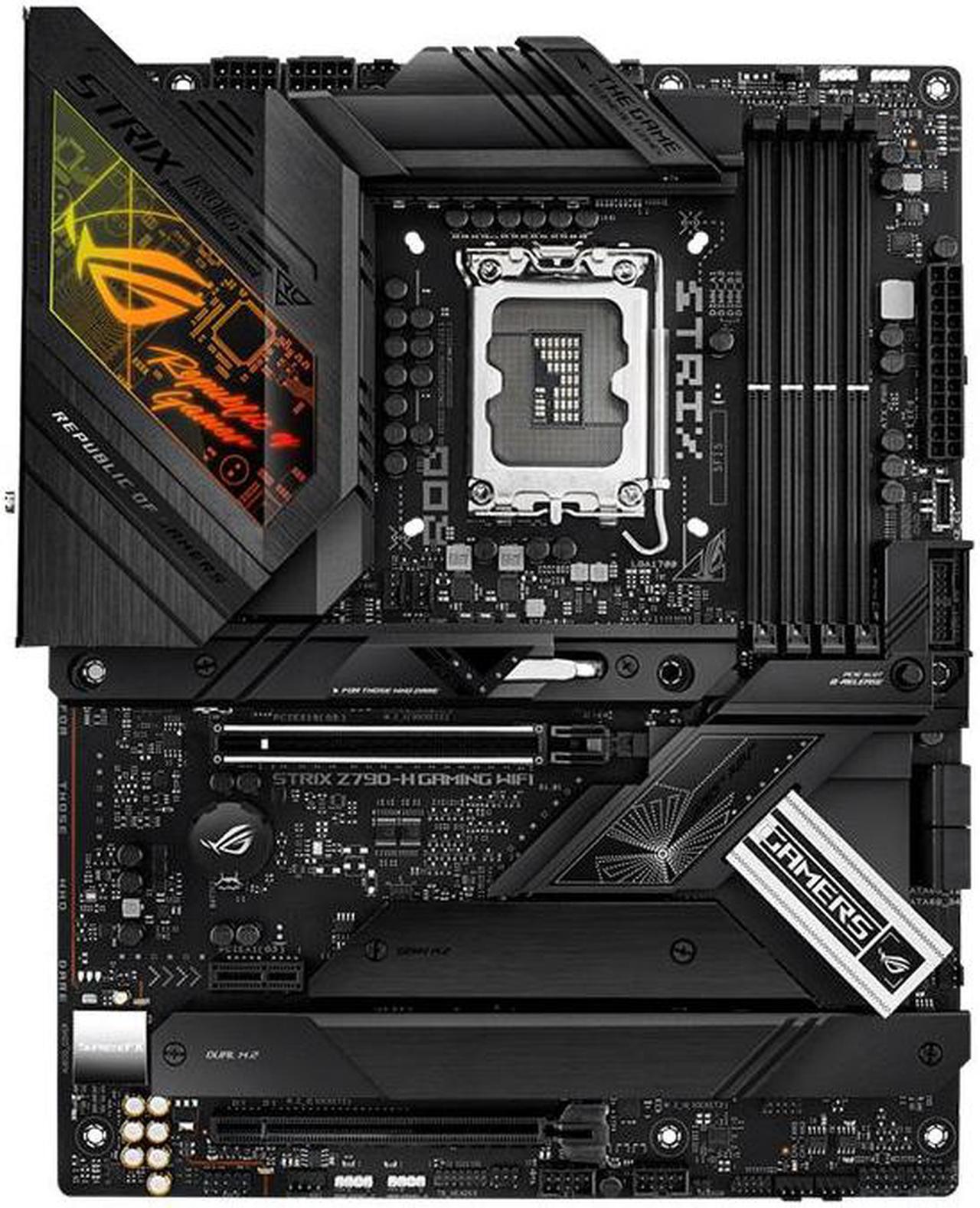

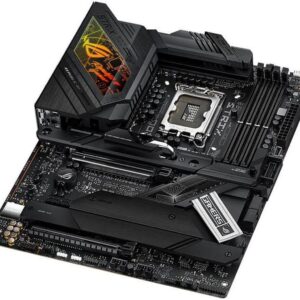

The **ASUS ROG Strix Z790-H Gaming WiFi** is an ATX motherboard designed to deliver a high-performance experience for gamers and PC enthusiasts. It supports Intel’s 12th, 13th, and 14th Generation Core processors on the LGA 1700 socket, making it compatible with the latest and most powerful CPUs.
This motherboard features robust power delivery with **16 + 1 power stages**, each rated for 80A, ensuring stable and efficient power to the CPU for demanding tasks and overclocking. It is equipped with a **PCIe 5.0 x16 SafeSlot**, ready for the next generation of graphics cards, providing maximum bandwidth for the most cutting-edge GPUs.
Memory support includes **DDR5 RAM**, with four DIMM slots supporting speeds up to an impressive 7800+ MT/s (OC) through Intel® XMP and ASUS OptiMem II. For storage, it offers **four PCIe 4.0 M.2 slots**, all covered by heatsinks to maintain optimal performance of high-speed NVMe SSDs. The topmost M.2 slot also features a Combo-sink extension and backplate for enhanced cooling.
Connectivity options are comprehensive, featuring **Intel® 2.5Gb Ethernet** for reliable wired networking and **Wi-Fi 6E (802.11ax)** for ultra-fast wireless speeds by utilizing the 6GHz band. It also includes a wide array of USB ports, including a rear USB 3.2 Gen 2×2 Type-C® port for blazing-fast 20Gbps data transfers, and a front-panel USB 3.2 Gen 2×2 connector.
The Z790-H Gaming WiFi integrates ROG SupremeFX S1220A audio codec with a Savitech SV3H712 AMP for immersive 7.1 surround sound. Its DIY-friendly design includes features like PCIe Slot Q-Release, M.2 Q-Latch, and Q-LED diagnostics, simplifying the building and troubleshooting process. Aura Sync RGB lighting allows for extensive customization of the system’s aesthetics.
