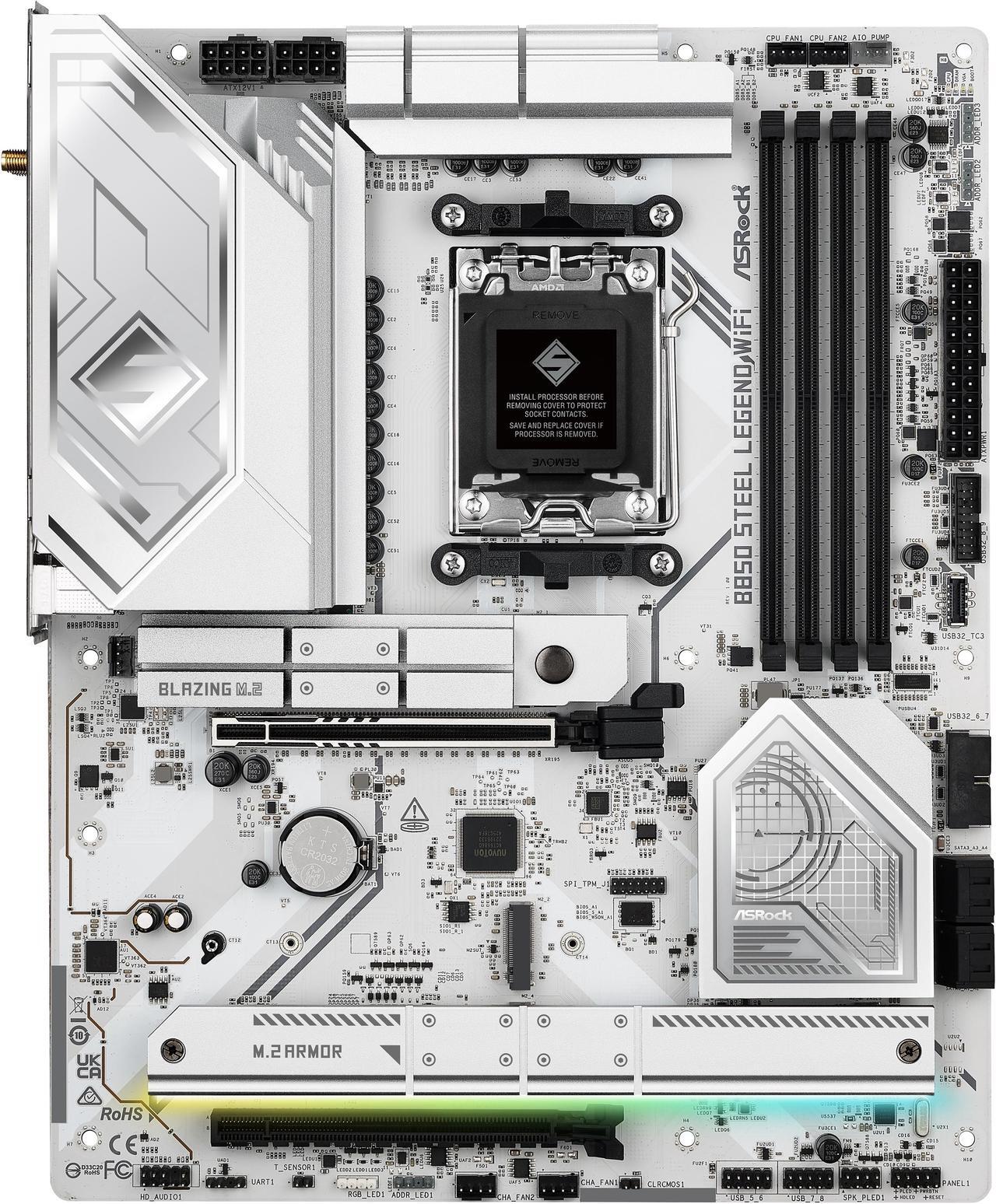

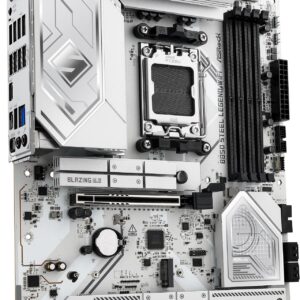

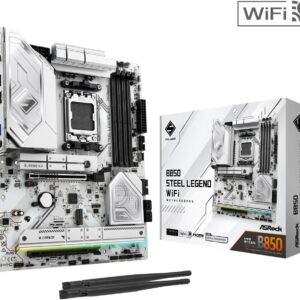

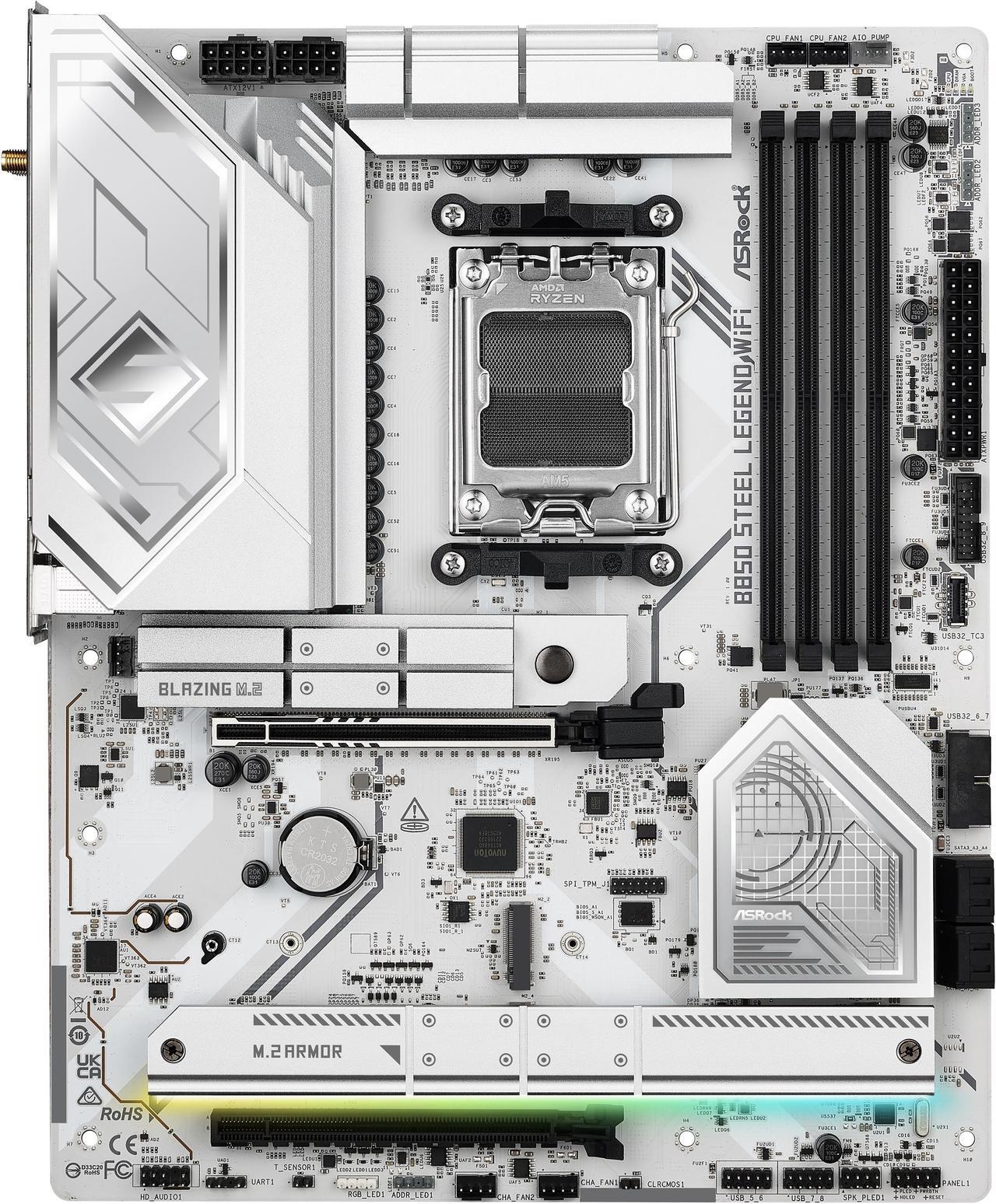

ASRock B850 STEEL LEGEND WIFI: AM5, AMD B850, DDR5 8000+(OC), PCIe 5.0, Wi-Fi 7, 2.5GbE LAN ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | Steel Legend Series ATX Motherboard (Durable & Feature-Rich Gaming) |
| Model | B850 Steel Legend WiFi |
| Form Factor | ATX (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DDR5 DIMM slots, Max. 256GB Dual Channel DDR5 Memory Technology Supports DDR5 ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) Memory Overclocking up to 8000+ MT/s (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (PCIE1, from CPU) with 15μ Gold Contact 1 x PCIe 4.0 x16 Slot (PCIE2, from Chipset, supports x4 mode) 1 x Vertical M.2 Socket (Key E) for WiFi/BT PCIe WiFi module (pre-installed Wi-Fi 7 module) |
| Storage Support | Total 4 x M.2 slots: 1 x Blazing M.2 (M2_1, from CPU, PCIe Gen5x4 128 Gb/s) 3 x Hyper M.2 (M2_2, M2_3, M2_4, from CPU/Chipset, PCIe Gen4x4 64 Gb/s) 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0, RAID 1, RAID 10 for SATA and PCIe storage devices |

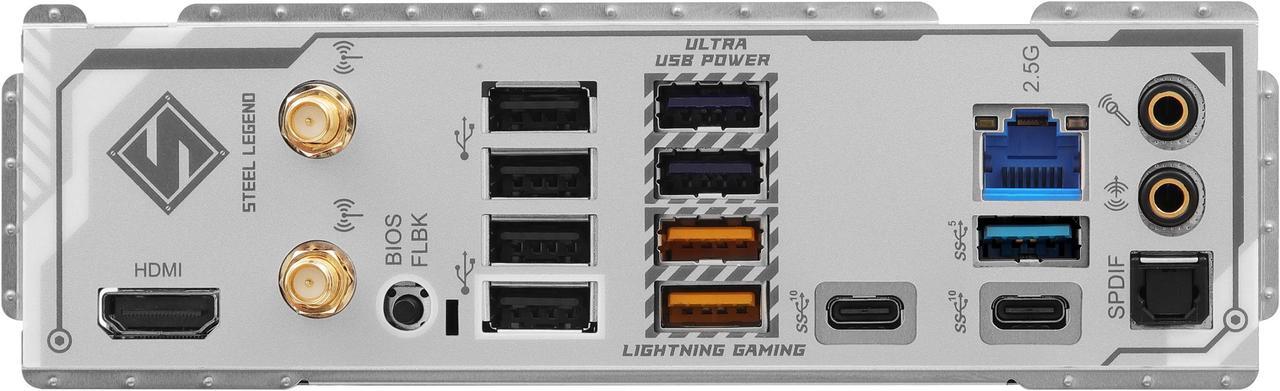

| USB Ports (Rear I/O) | 2 x USB 3.2 Gen2 Type-C ports (10Gbps) 2 x USB 3.2 Gen2 Type-A ports (10Gbps) 3 x USB 3.2 Gen1 Type-A ports (5Gbps) 4 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen2x2 Type-C header (20Gbps) 2 x USB 3.2 Gen1 headers (supports 4 additional USB 5Gbps ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Network | 1 x Dragon RTL8125BG 2.5 Gigabit LAN port 802.11be 2×2 Wi-Fi 7 Module Bluetooth 5.4 |
| Audio | Realtek ALC4082 7.1 CH HD Audio Codec Nahimic Audio, Audio Shielding, Premium Audio Capacitors |
| Power Delivery | 14+2+1 Phase Power Design 80A Dr.MOS Power Stages for VCore+SOC |
| Cooling Features | Aluminum Heatsink Design for VRM XXL M.2 Heatsink, M.2 Bottom Heatsink Intelligent Cooling Design with multiple Fan Headers (CPU, CPU OPT, AIO Pump, Chassis) Fan-Tastic Tuning, Thermistor Header |
| Special Features | ASRock B850 Steel Legend Features (White/Silver Aesthetic) Graphics Card Lite Release, M.2 Heatsink Toolless Design Flexible Integrated I/O Shield, BIOS Flashback Button ASRock Auto Driver Installer, POLYCHROME RGB / SignalRGB Sync Lightning Gaming Ports, Ultra USB Power, Full Spike Protection |
| Display Output | 1 x HDMI 2.1 *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Microsoft Windows® 10 64-bit / 11 64-bit |

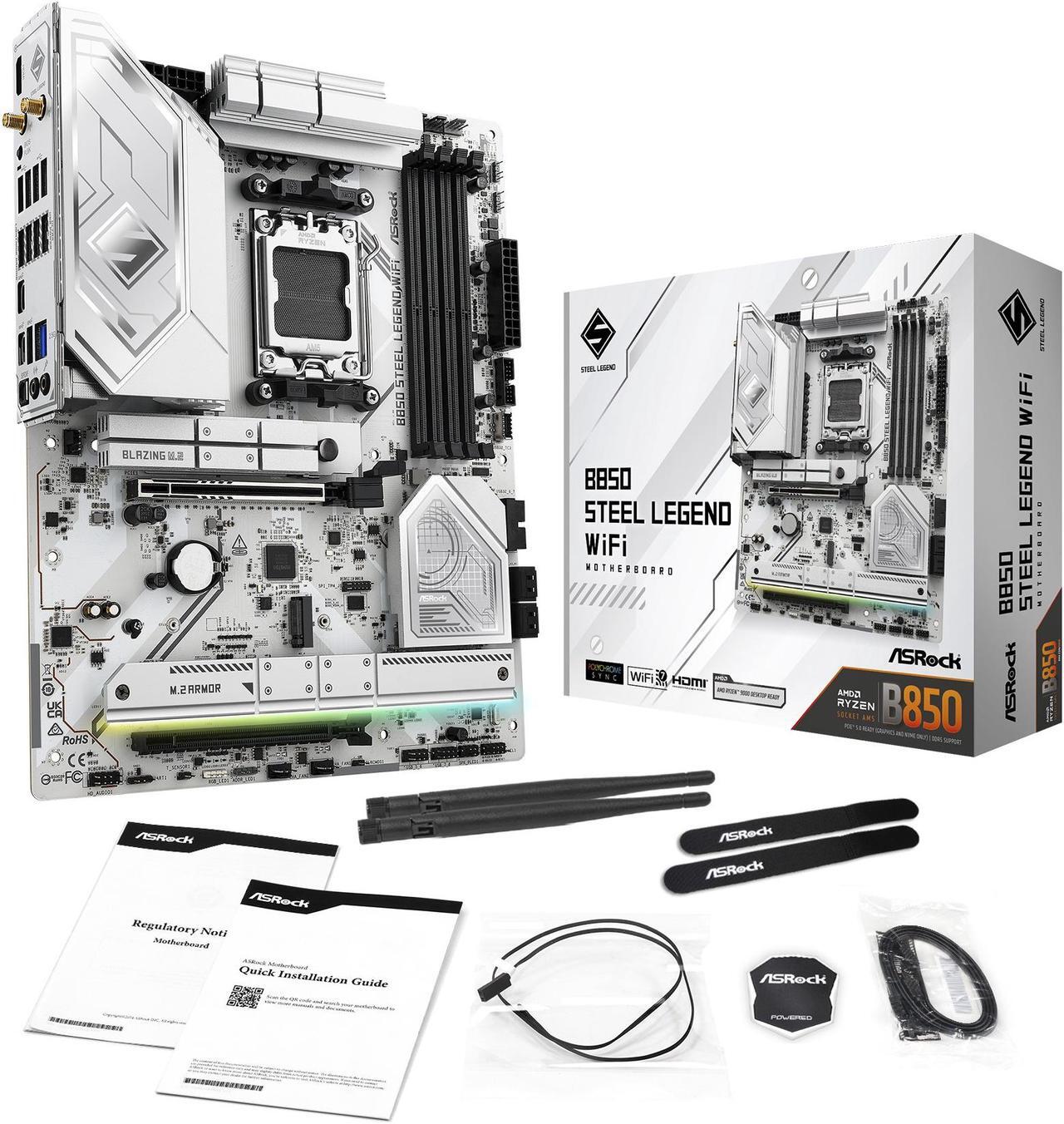

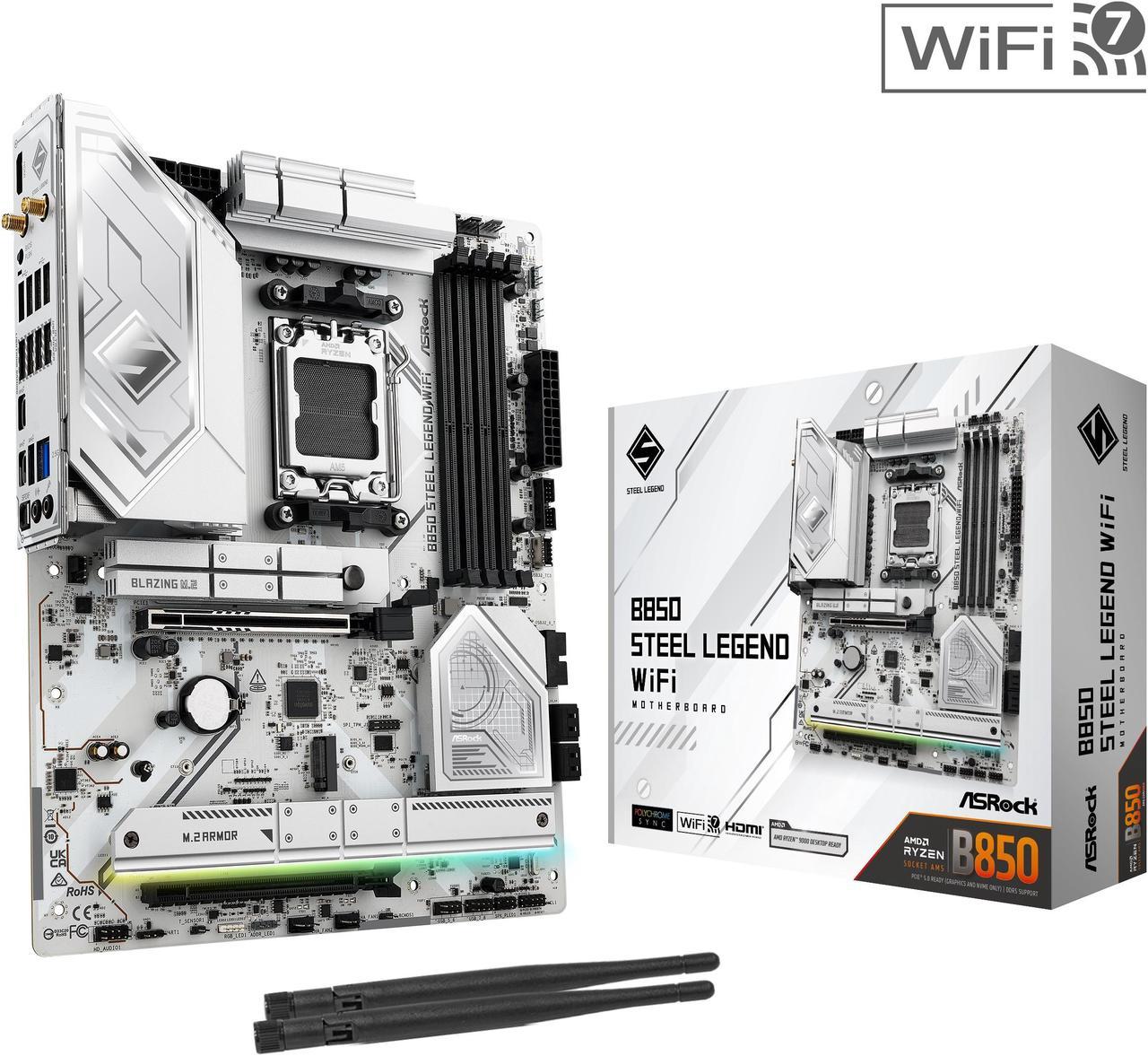

| Bundled Accessories | Wi-Fi Antenna, SATA Data Cables, M.2 Screws, User Manual, Software CD. (Contents may vary by region). |

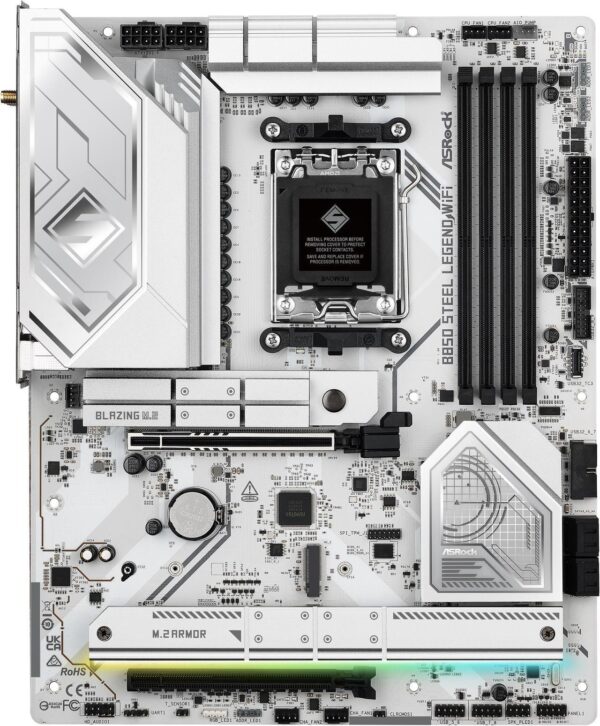

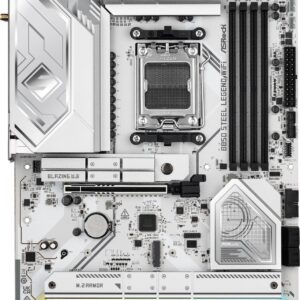

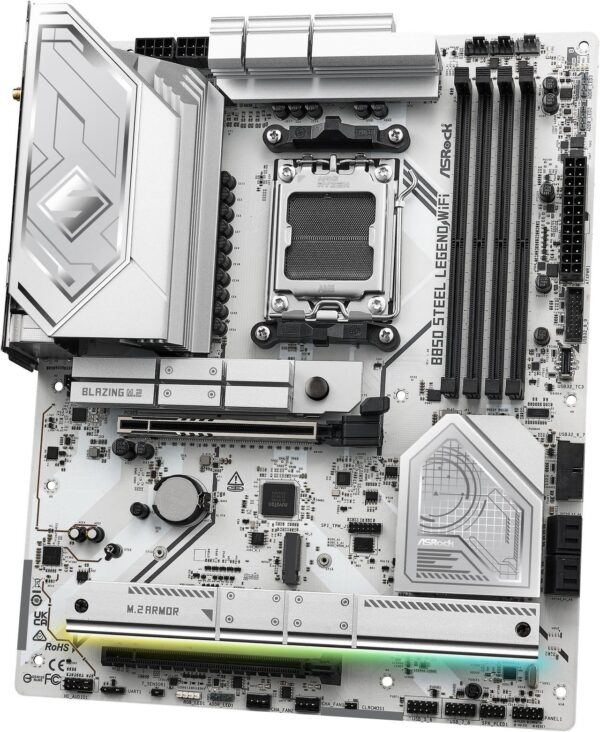

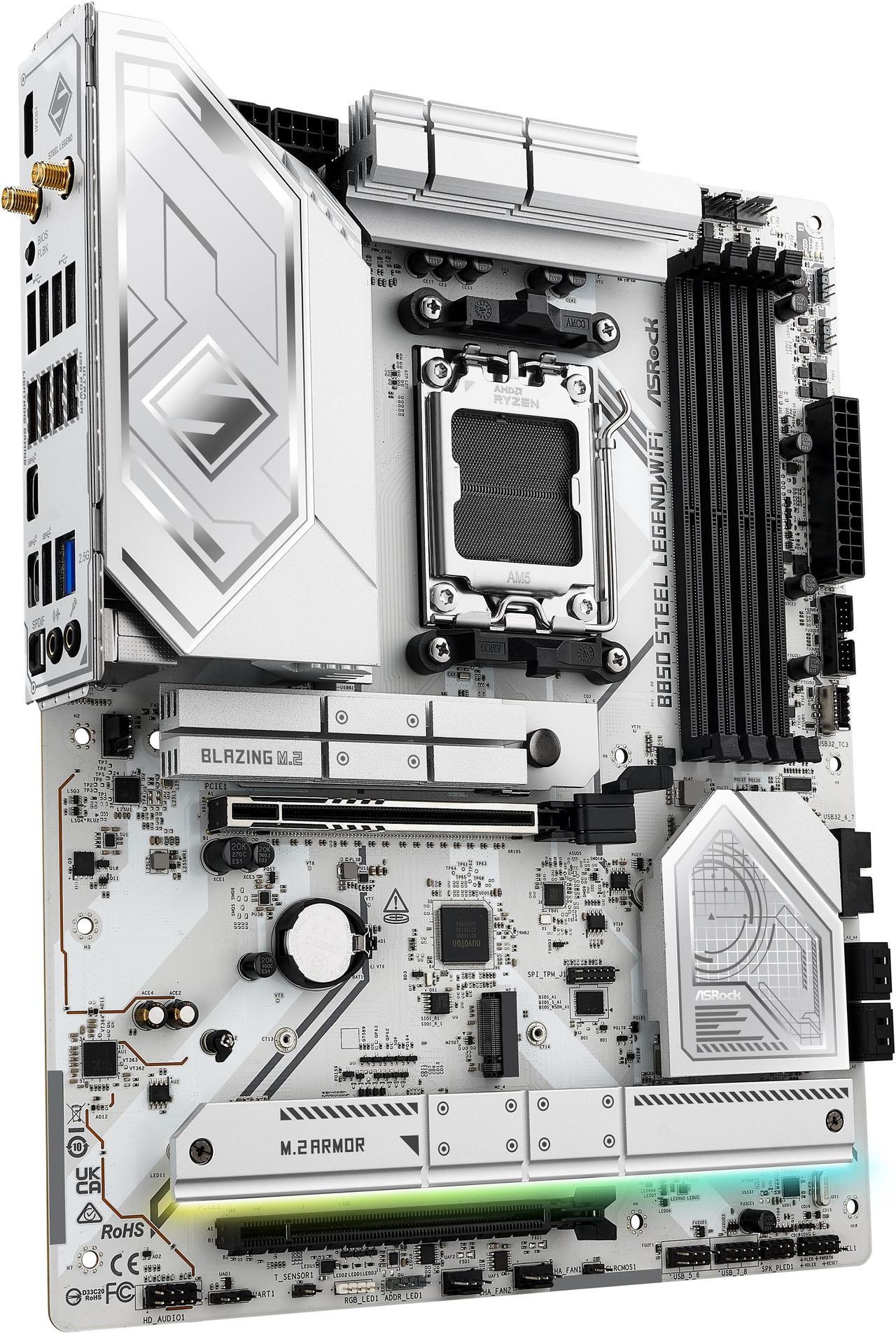

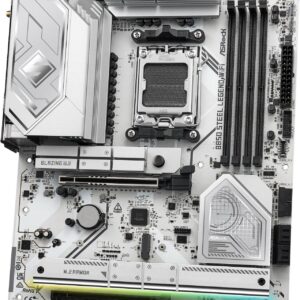

| The **ASRock B850 Steel Legend WiFi** is an ATX motherboard designed for the latest **AMD Ryzen™ 9000, 8000, and 7000 Series Processors** on the AM5 socket, leveraging the **AMD B850 chipset**. This board stands out with its distinctive white/silver Steel Legend aesthetic, robust features, and excellent performance for gaming and demanding applications.
It boasts a powerful **14+2+1 power phase design with 80A Dr.MOS**, ensuring stable power delivery for high-performance CPUs and supports **DDR5 memory up to 8000+ MT/s (OC)** across four DIMM slots. For graphics, it features a **PCIe 5.0 x16 slot** with 15μ Gold Contact, and for storage, it offers an impressive **four M.2 slots** (one PCIe Gen5x4 and three PCIe Gen4x4), alongside four SATA 6Gb/s ports. Connectivity is top-tier with a **Dragon RTL8125BG 2.5 Gigabit LAN** and an integrated **802.11be 2×2 Wi-Fi 7 module with Bluetooth 5.4**. The rich USB connectivity includes multiple USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps) ports, along with a front USB 3.2 Gen2x2 Type-C (20Gbps) header. Enhanced by Nahimic Audio, extensive cooling solutions (XXL M.2 Heatsink, M.2 Bottom Heatsink), and user-friendly features like BIOS Flashback and Toolless M.2 Heatsink Design, the ASRock B850 Steel Legend WiFi offers a visually striking and highly capable foundation for a high-end PC build. |
|
