| Power Supply Specifications | |
|---|---|
| Model | GP-AE850PM PG5 |
| PSU Wattage | 850W / 1000W |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |

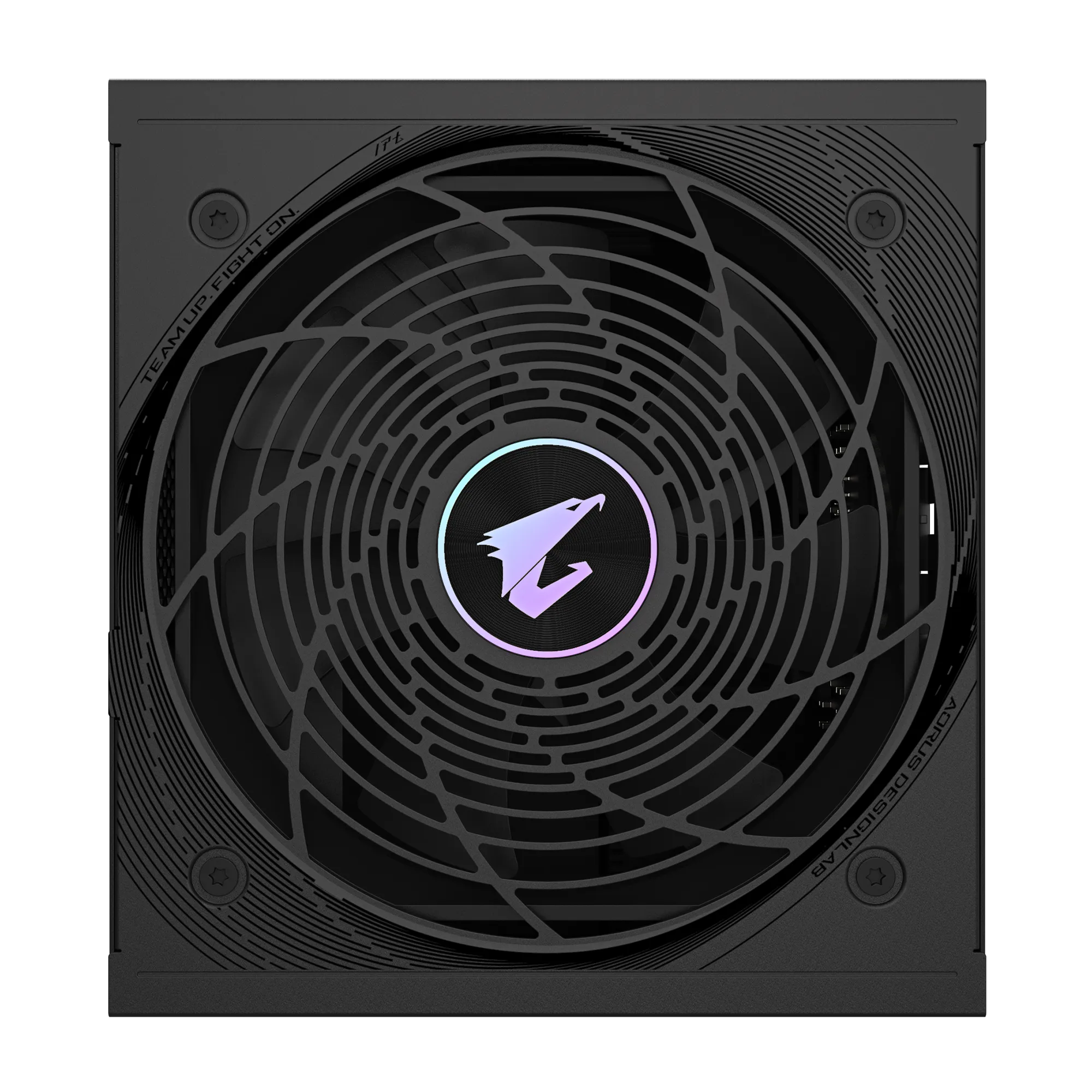

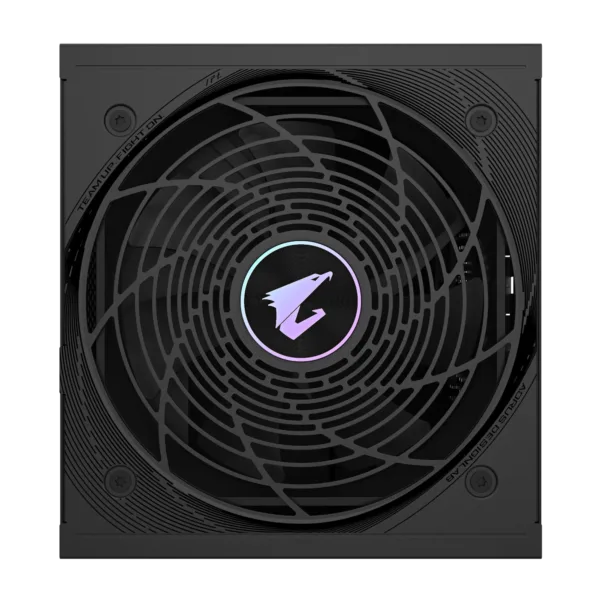

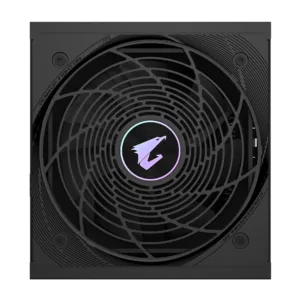

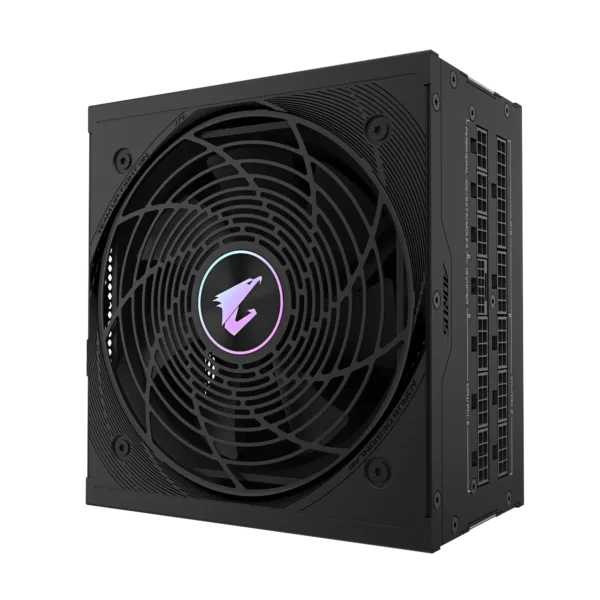

| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection Features | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |

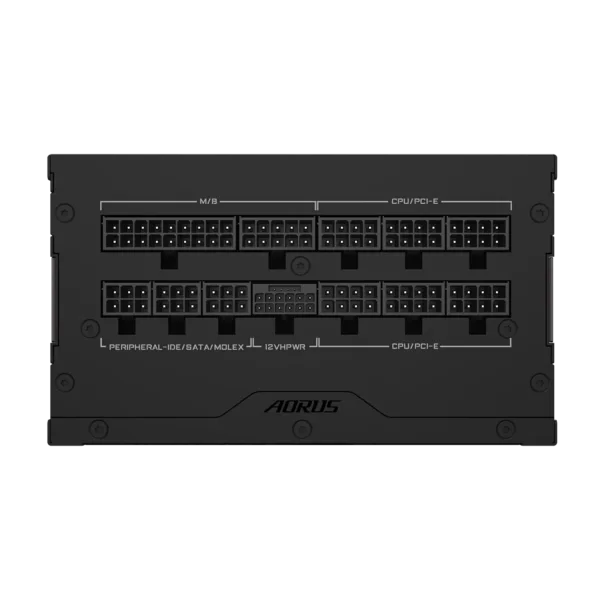

| Connectors |
ATX/MB 20+4 Pin × 1 (650mm) CPU/EPS 4+4 Pin × 2 (700mm) PCI-E 16 Pin × 1 (700mm) PCI-E 6+2 Pin × 6 (650mm+150mm ×2, 750mm ×2) SATA × 8 (600mm+150mm+150mm+150mm ×2) 4 Pin Peripheral × 4 (500mm+150mm+150mm+150mm ×1) |
| Warranty | 3 Years |

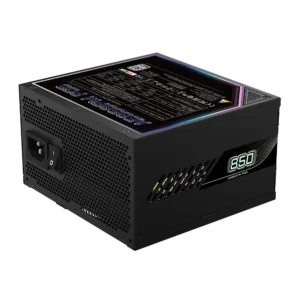

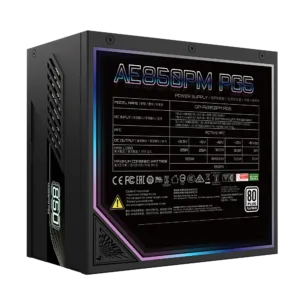

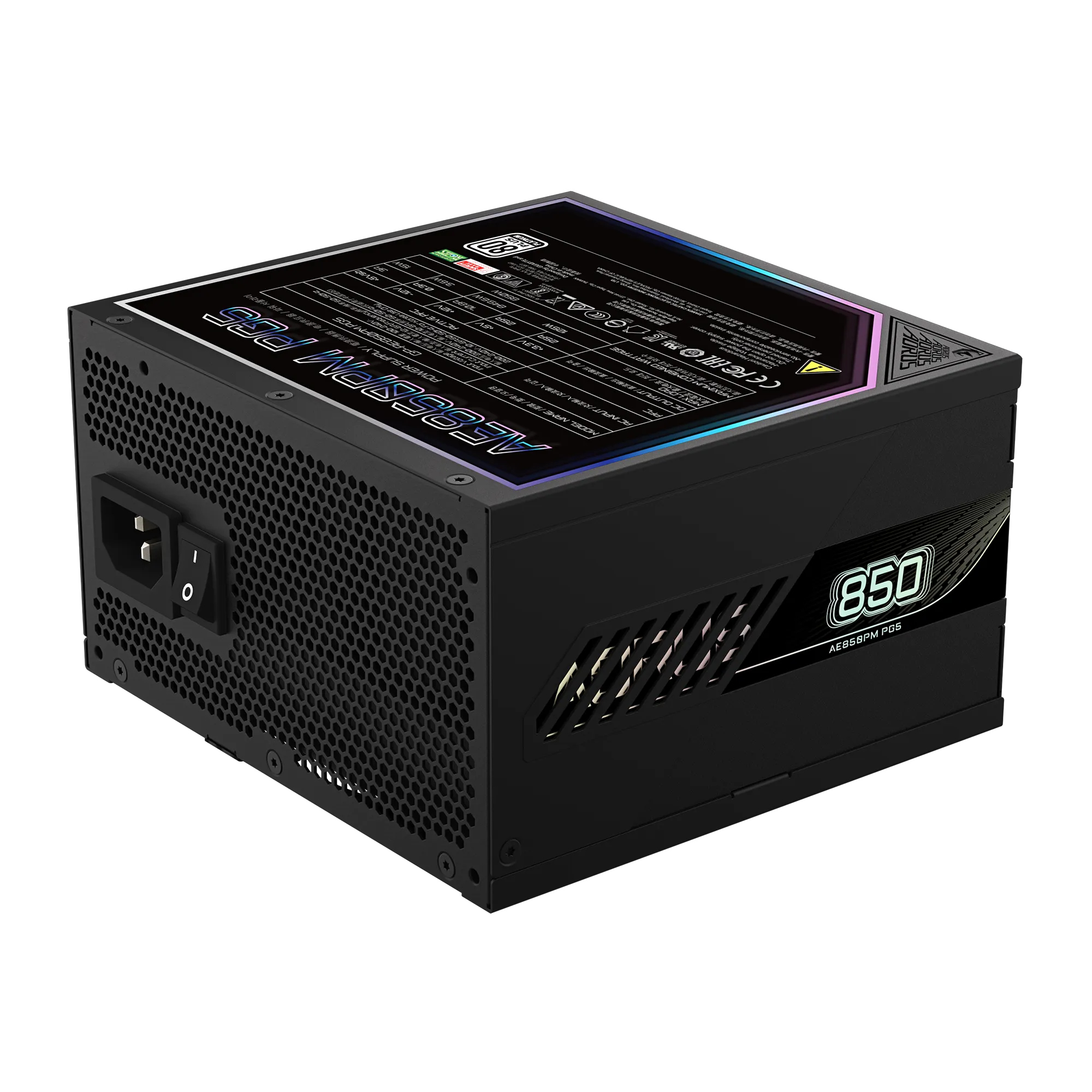

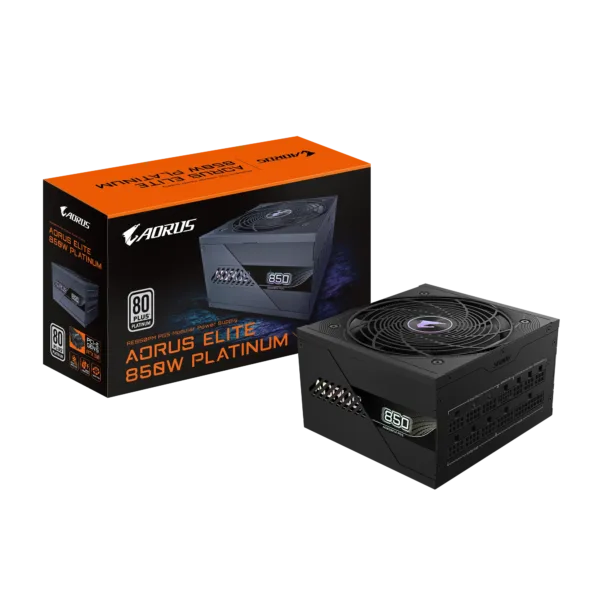

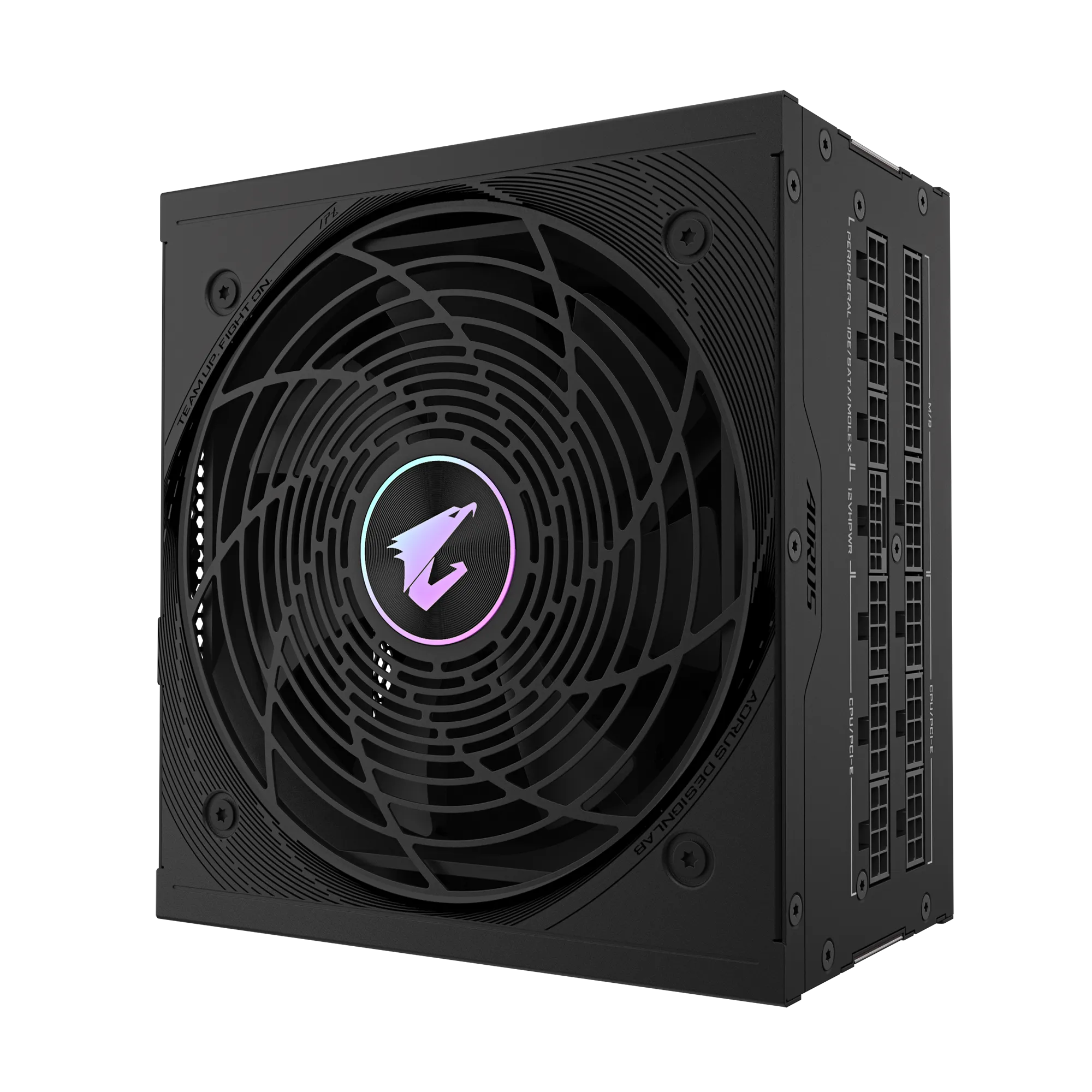

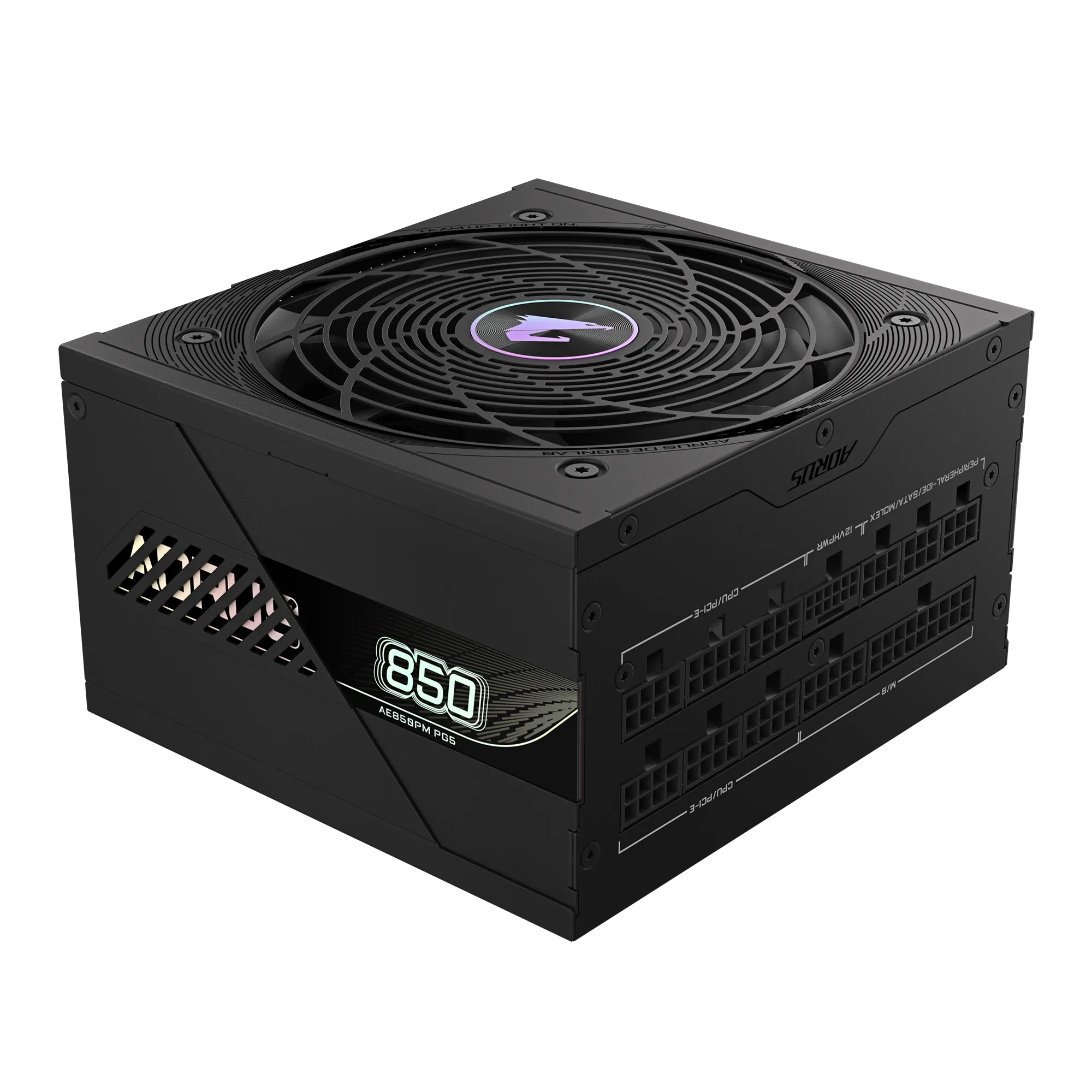

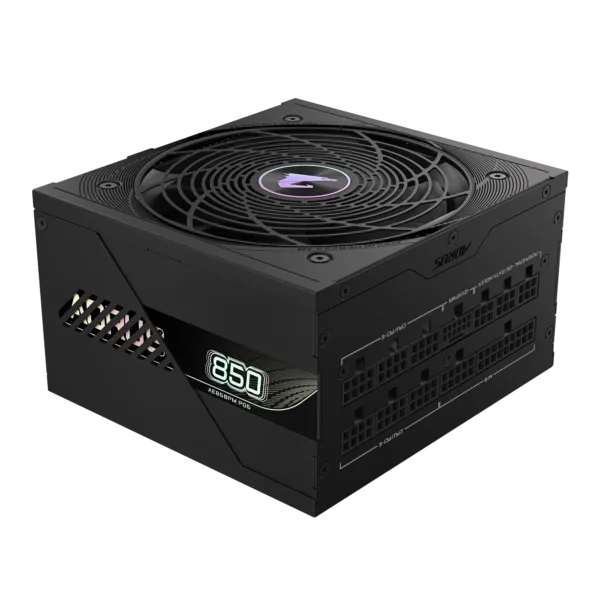

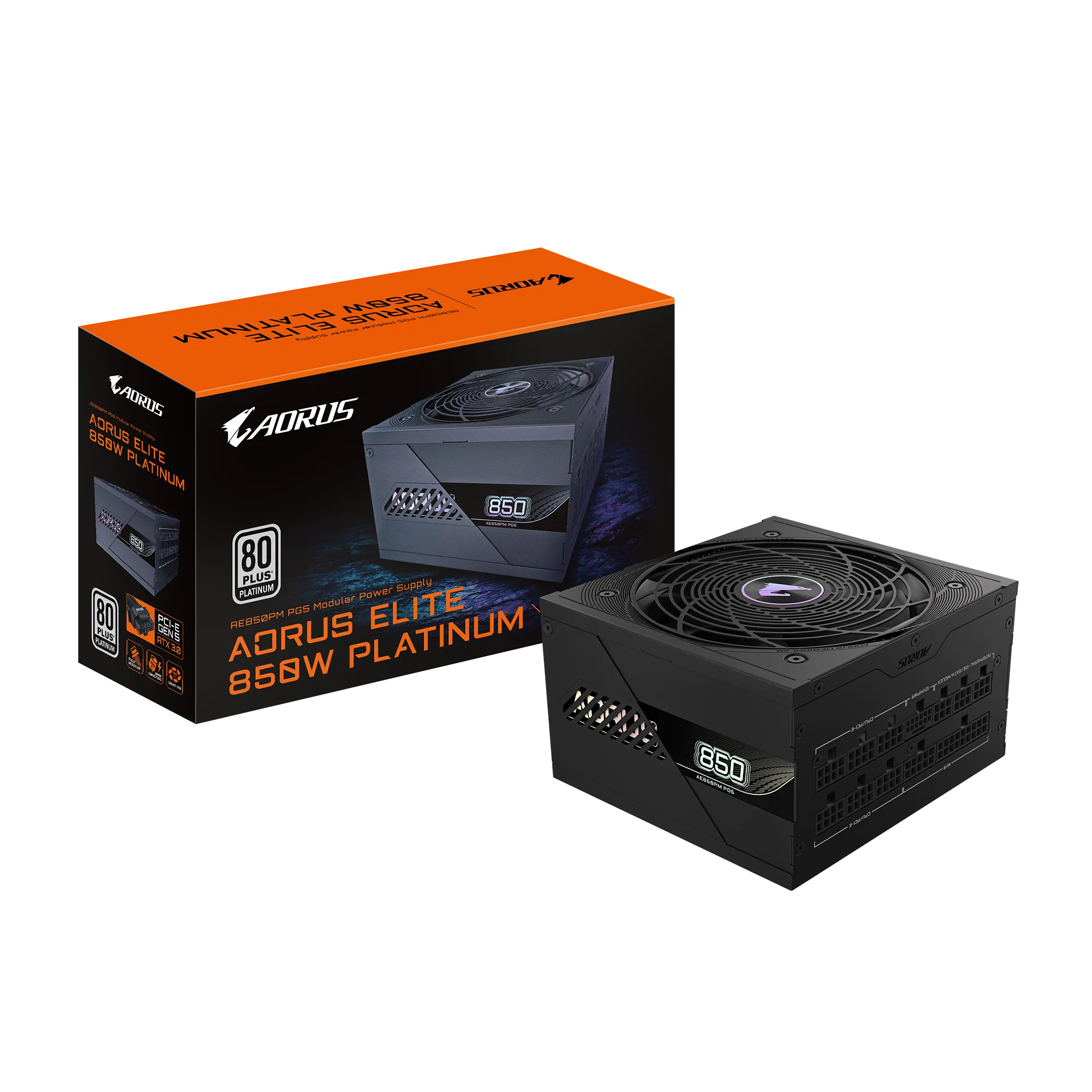

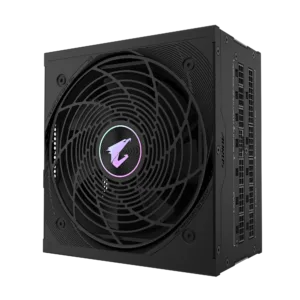

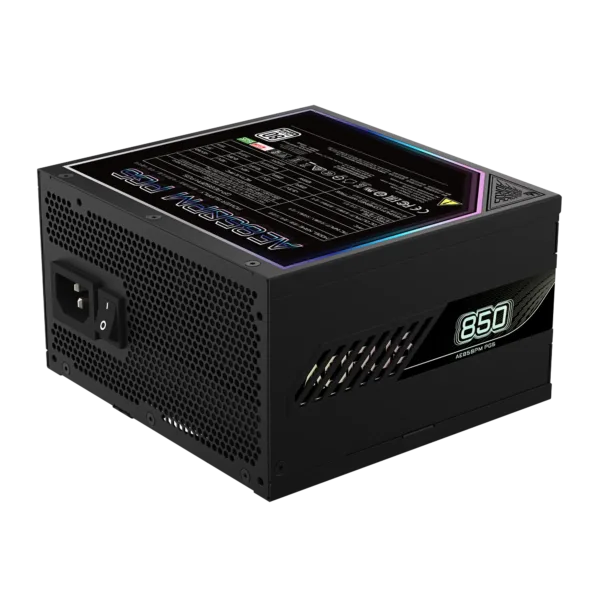

AORUS ELITE P850W/1000W – Compact, Platinum-Certified PSU with PCIe 5.0 & ATX 3.0 • 100% Japanese Capacitors • Smart 120mm FDB Fan • Fully Modular • High-Efficiency +12V Rail • Platinum Certified
45.612,00 EGP – 745.563.563,00 EGP
Shipping calculated at checkout.
Estimated delivery:5 days
Guarantee Safe and Secure Payment Checkout
