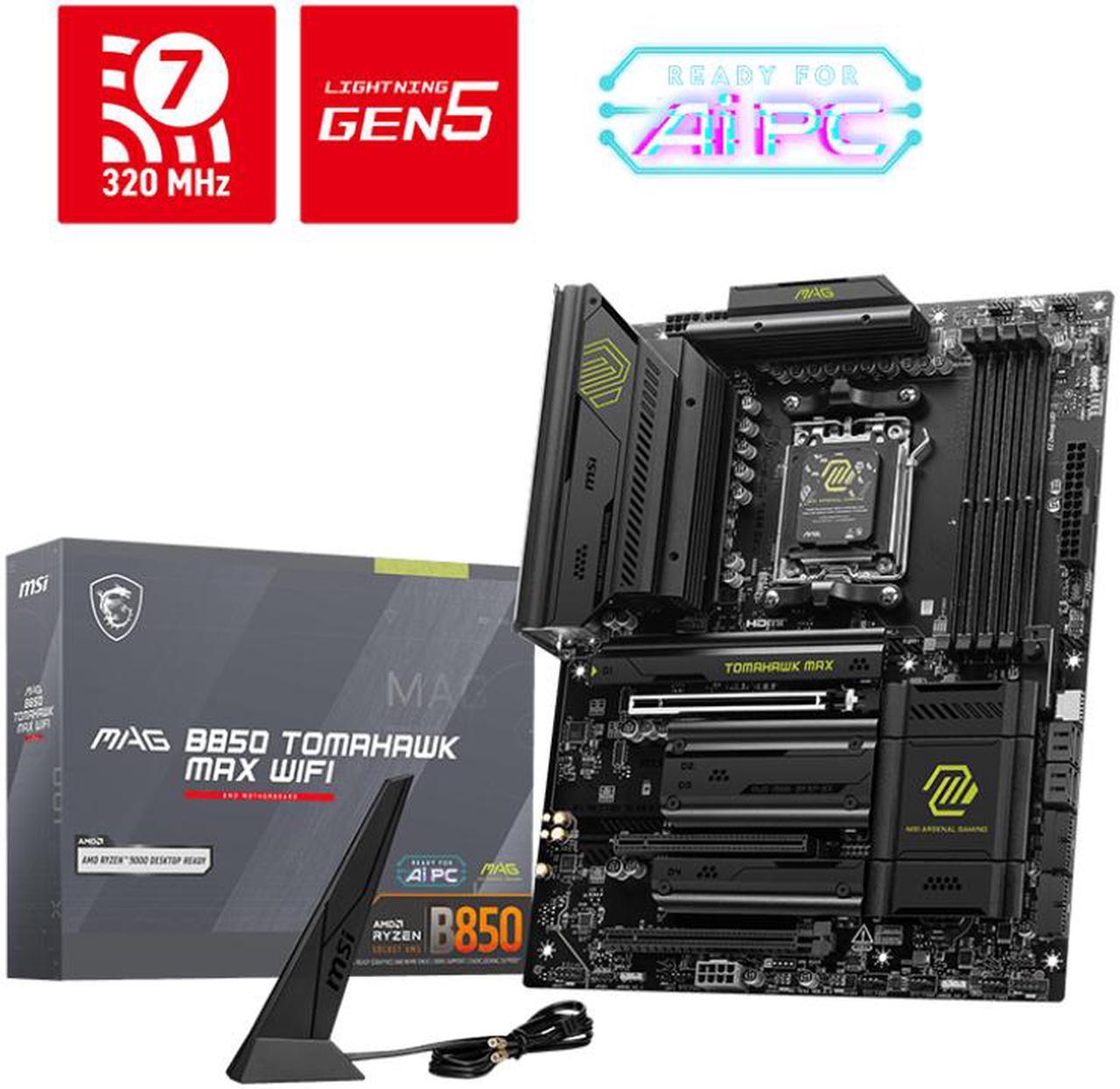

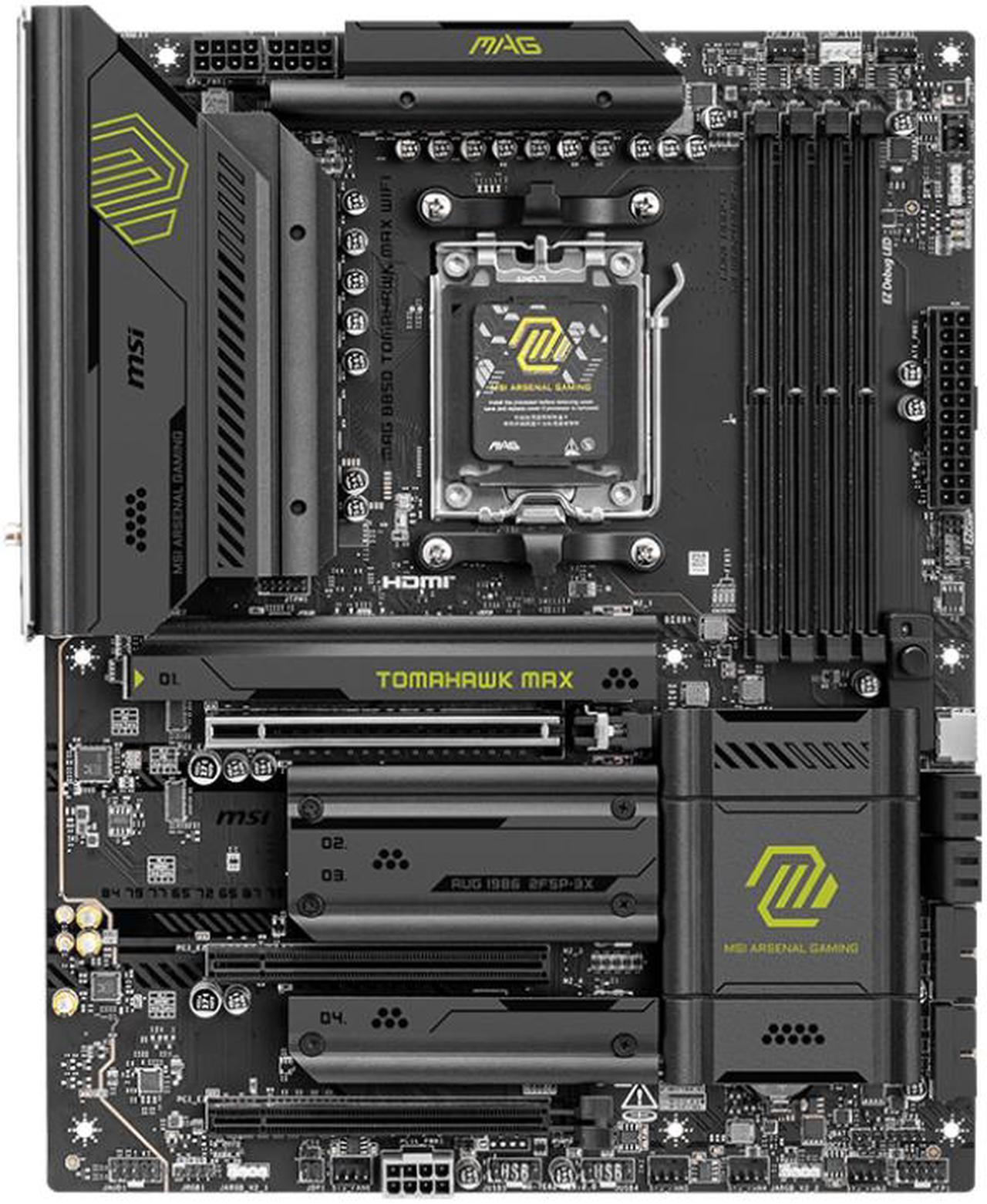

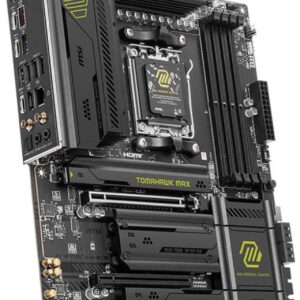

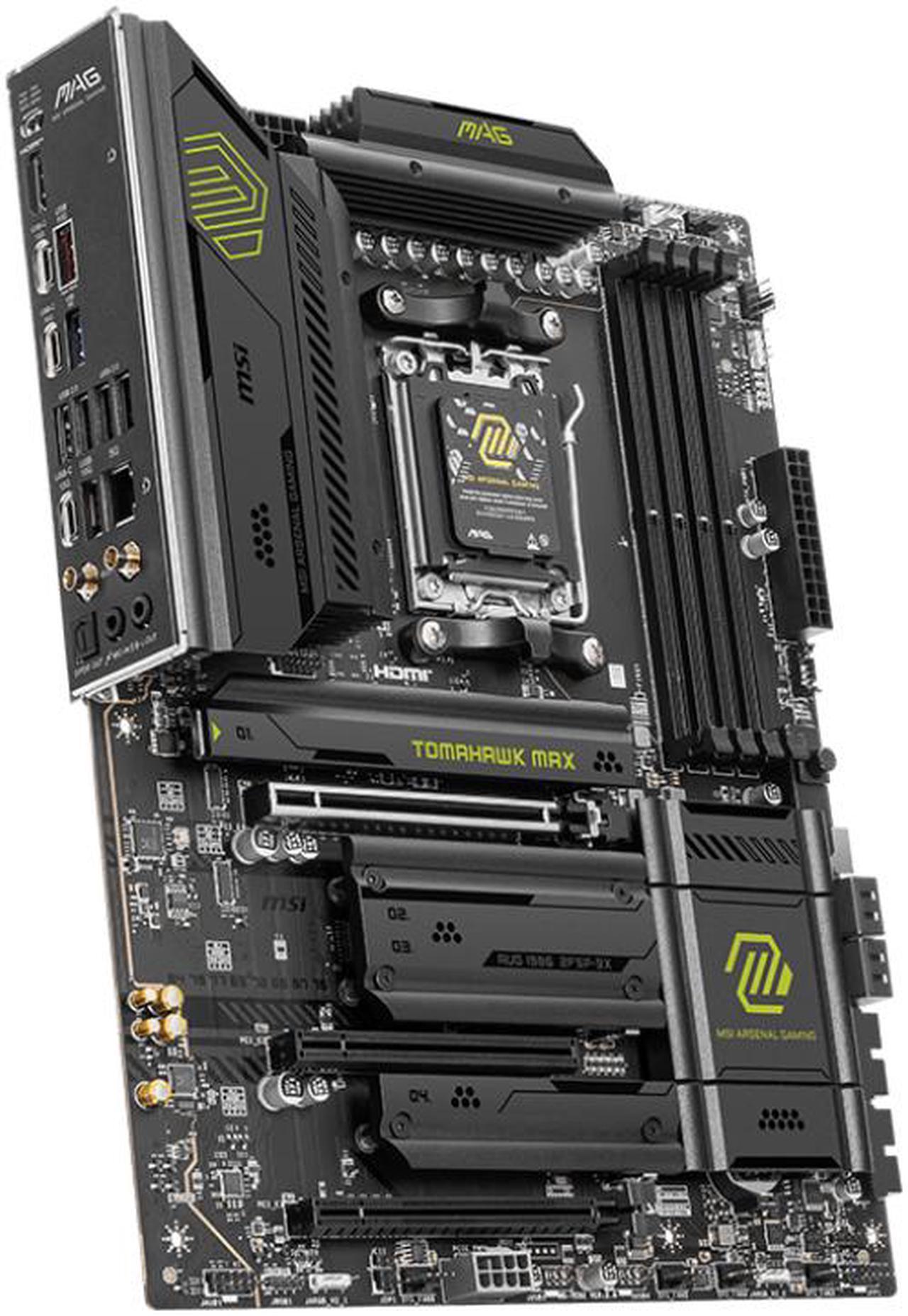

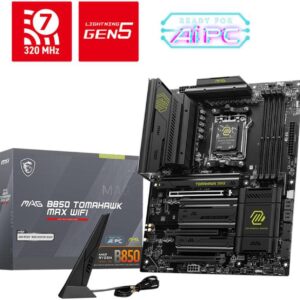

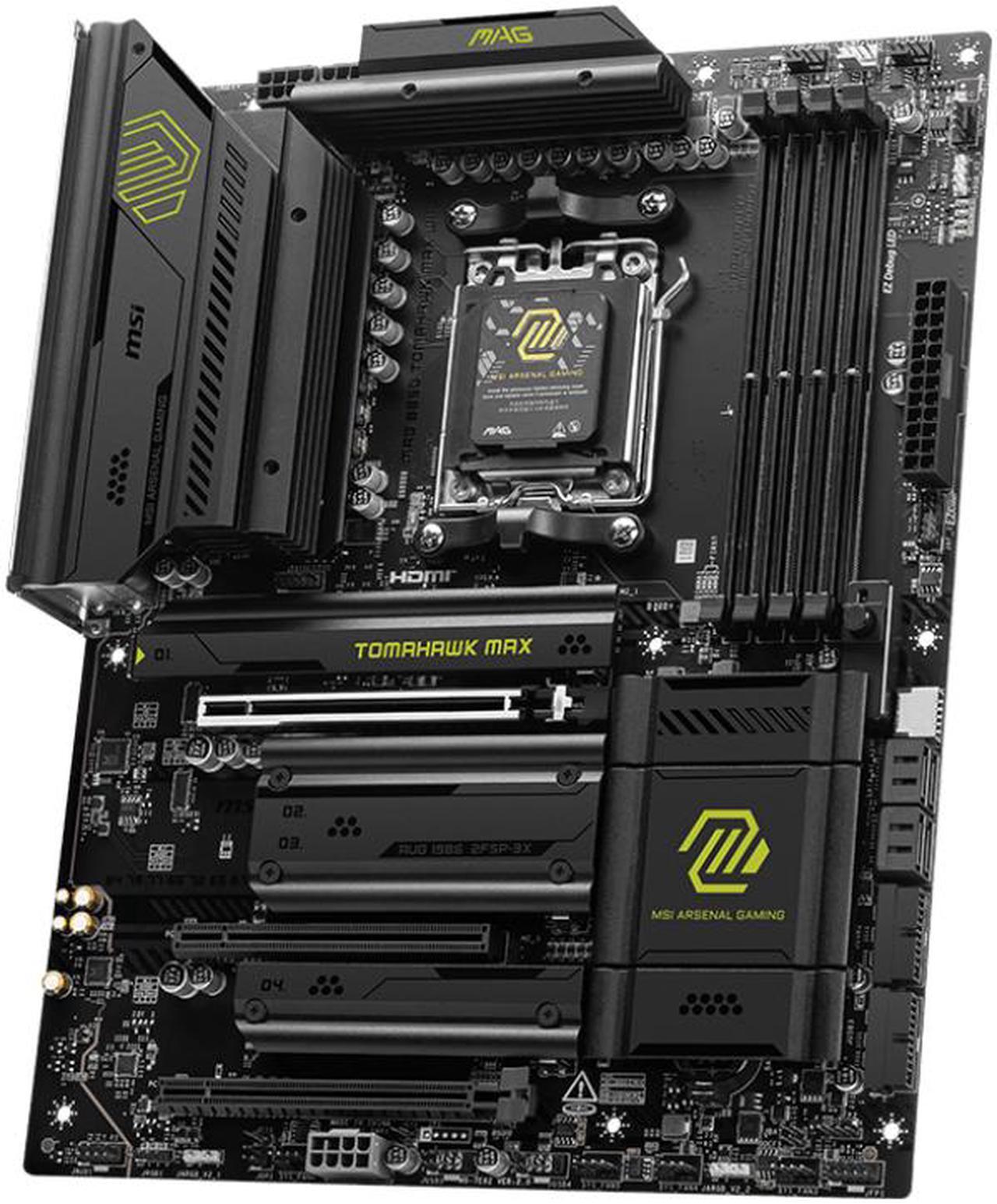

MSI MAG B850 TOMAHAWK MAX WIFI: AM5, AMD B850, DDR5, 5G LAN, Wi-Fi 7 ATX Gaming Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | MSI |
| Category | MAG Series ATX Motherboard (Mainstream Gaming) |
| Model | B850 TOMAHAWK MAX WIFI |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Memory Support | 4 x DDR5 UDIMM slots, Max. 256GB Supports DDR5 8200+(OC) / 5600 JEDEC MT/s Dual-Channel Memory Architecture, Supports AMD EXPO™ |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU, with Steel Armor) 1 x PCIe 4.0 x16 slot (from Chipset, supports x4 mode) 2 x PCIe 3.0 x1 slots (from Chipset) *PCI_E2, PCI_E3, and PCI_E4 share bandwidth; PCI_E3 will run at x2 speed when devices are installed in PCI_E2 or PCI_E4. |
| Storage Support | Total 3 x M.2 slots: 1 x M.2_1 (PCIe 5.0 x4, type 2280/2260) – CPU connected 1 x M.2_2 (PCIe 4.0 x4, type 22110/2280) – CPU connected 1 x M.2_3 (PCIe 4.0 x2, type 2280/2260) – Chipset connected 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices |

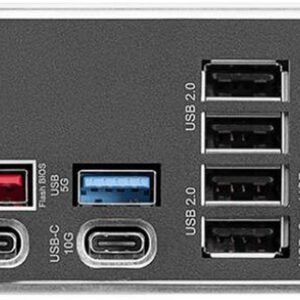

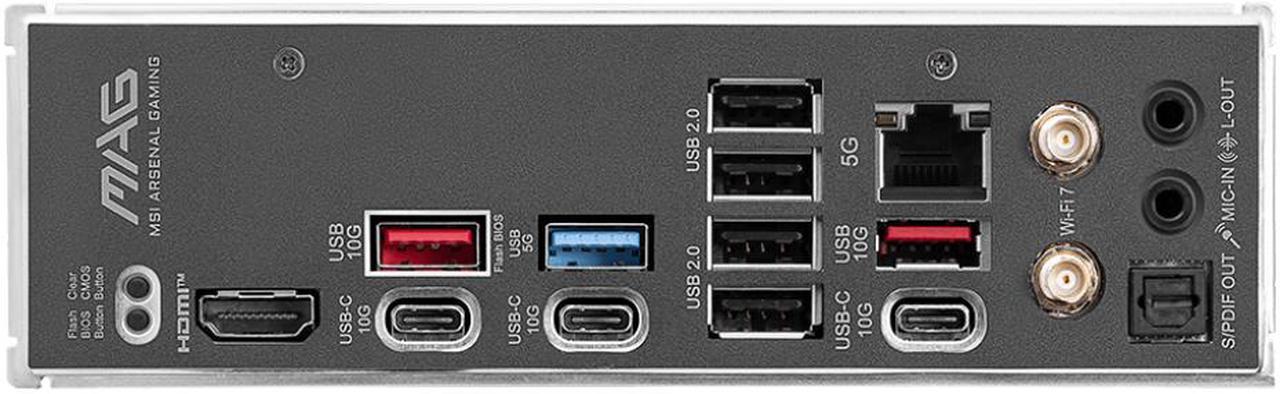

| USB Ports (Rear I/O) | 1 x USB 20Gbps Type-C® port (USB 3.2 Gen 2×2) 3 x USB 10Gbps Type-A ports (USB 3.2 Gen 2) 4 x USB 5Gbps Type-A ports (USB 3.2 Gen 1) 2 x USB 2.0 Type-A ports 1 x Clear CMOS Button 1 x Flash BIOS Button |
| USB Ports (Front Headers) | 1 x USB 10Gbps Type-C® header (USB 3.2 Gen 2) 2 x USB 5Gbps Type-A headers (support 4 additional USB 5Gbps ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | 1 x Realtek® 8126VB 5G LAN controller Wi-Fi 7 Solution (pre-installed in M.2 Key-E slot) Supports MU-MIMO TX/RX, 2.4/5/6GHz (320MHz) tri-band, up to 5.8Gbps Bluetooth® v5.4 *Wi-Fi 7 and Bluetooth 5.4 features require Windows 11 version 24H2. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Audio Boost 5 Supports S/PDIF Out |
| Power Delivery | 12+2+1 Duet Rail Power System (with 80A Smart Power Stage) Dual 8-pin CPU power connectors Core Boost, Memory Boost |
| Cooling Features | Extended Heatsink Design M.2 Shield Frozr (for M.2 SSDs) 7W/mK MOSFET thermal pads & additional choke thermal pads Multiple fan headers with Frozr AI Cooling |
| Special Features | MSI Steel Armor (for PCIe x16 slot) EZ Debug LED, Flash BIOS Button EZ M.2 Clip, EZ PCIe Release Pre-installed I/O Shield |
| Display Output | 1 x DisplayPort™ 1.4 (Supports max. 4K@60Hz) 1 x HDMI™ 2.1 port (Supports max. 4K@60Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Clips, User Manual, Quick Installation Guide. (Contents may vary by region). |
| The **MSI MAG B850 TOMAHAWK MAX WIFI** is an ATX motherboard designed for gamers and power users seeking a robust and feature-rich platform for AMD’s latest processors. Utilizing the **AMD B850 chipset** and the **AM5 socket**, it provides full support for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
This motherboard features a strong **12+2+1 Duet Rail Power System with 80A Smart Power Stage (SPS)**, ensuring stable and efficient power delivery for even the most demanding CPUs. It supports **DDR5 memory up to an impressive overclocked speed of 8200+ MT/s** across four DIMM slots, compatible with AMD EXPO profiles for easy optimization. For graphics, it includes a reinforced **PCIe 5.0 x16 slot** with MSI Steel Armor, ready for the latest high-performance GPUs. Storage options are comprehensive with **three M.2 slots**, including one supporting **PCIe 5.0 x4** for cutting-edge SSD speeds and two additional PCIe 4.0 x4 slots, all covered by M.2 Shield Frozr for thermal management. Four SATA 6Gb/s ports are also available. Connectivity is a major highlight, featuring a **Realtek® 8126VB 5G LAN controller** for ultra-fast wired networking and a state-of-the-art **Wi-Fi 7 solution** for superior wireless performance, along with Bluetooth 5.4. The rear I/O offers a versatile array of USB ports, including a 20Gbps USB 3.2 Gen 2×2 Type-C port. With its advanced cooling, robust power delivery, and high-speed connectivity, the MAG B850 TOMAHAWK MAX WIFI is a premium choice for high-end gaming and enthusiast builds. |
|
