GIGABYTE B850 AI TOP: AM5, AMD B850, DDR5 8600+(OC), Dual PCIe 5.0 x16, Dual 10GbE LAN, Wi-Fi 7 ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | GIGABYTE |
| Category | AI Top Series ATX Motherboard (AI/Compute & Performance) |
| Model | B850 AI TOP |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Memory Support | 4 x DDR5 UDIMM slots, Max. 256GB Supports DDR5 8600+(OC) / 5600 JEDEC MT/s Dual Channel Memory Architecture, Supports AMD EXPO™ Memory Modules |
| Expansion Slots | 2 x PCIe 5.0 x16 slots (run x16 or x8/x8, with PCIe UD Slot X) 1 x PCIe 4.0 x2 slot (from Chipset) |
| Storage Support | Total 3 x M.2 slots: 2 x PCIe 5.0 x4 M.2 Slots (type 22110/2280/2260) – CPU connected 1 x PCIe 4.0 x4 M.2 Slot (type 22110/2280/2260) – Chipset connected 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

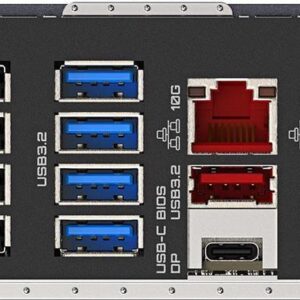

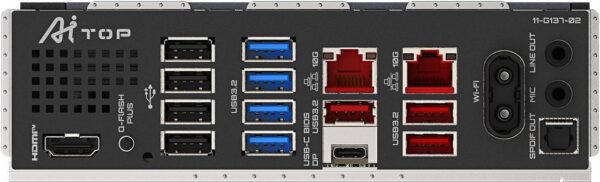

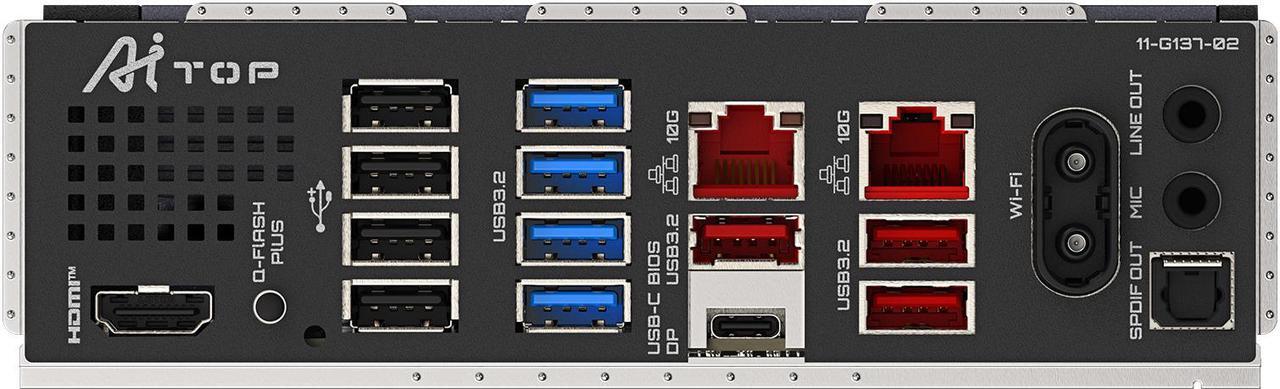

| USB Ports (Rear I/O) | 1 x USB-C® port (with up to 40Gb/s support, likely USB4 capable) 3 x USB 3.2 Gen 2 Type-A ports (10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 1 x Q-Flash Plus Button 1 x Clear CMOS Button |
| USB Ports (Front Headers) | 1 x USB Type-C® header (USB 3.2 Gen 2×2, 20Gbps) 2 x USB 3.2 Gen 1 headers (support 4 additional USB 5Gbps ports) 2 x USB 2.0/1.1 headers (support 4 additional USB 2.0/1.1 ports) |
| Network | Dual 10GbE LAN controllers Wi-Fi 7 (802.11be) Solution with directional Ultra-high gain antenna Bluetooth® v5.4 *Wi-Fi 7 and Bluetooth 5.4 features require Windows 11 version 24H2. |
| Audio | Realtek® ALC1220 Codec 7.1-Channel High Definition Audio High-End Audio Capacitors, Support for S/PDIF Out |
| Power Delivery | 16+2+2 phases VRM solution Dual 8-pin Solid Pin CPU Power Connectors |
| Cooling Features | VRM Thermal Armor Advanced heatsink design M.2 Thermal Guard (premium heatsinks for M.2 slots) Multiple Fan/Water Pump Headers with Smart Fan 6 control |
| Special Features | PCIe UD Slot X (PCIe 5.0 x16 slot with 10X strength) WIFI EZ-Plug, EZ-Latch Plus (PCIe & M.2 Quick Release/Screwless) EZ-Latch Click (M.2 heatsink screwless design) Q-FLASH PLUS Button, RGB FUSION, EZ Debug Zone Multi-key Debug LEDs Power Button 80 port X3D Turbo Mode, D5 Bionic Corsa Technology AI TOP Utility 2.0, AI TOP Hardware New Power Monitor in HWinfo (real-time CPU power phases) |
| Display Output | 1 x HDMI™ port (Supports max. 4K@60Hz) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit (Assumed) |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Clips, User Manual, Quick Installation Guide. |

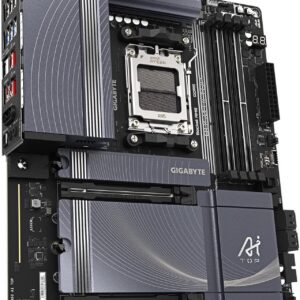

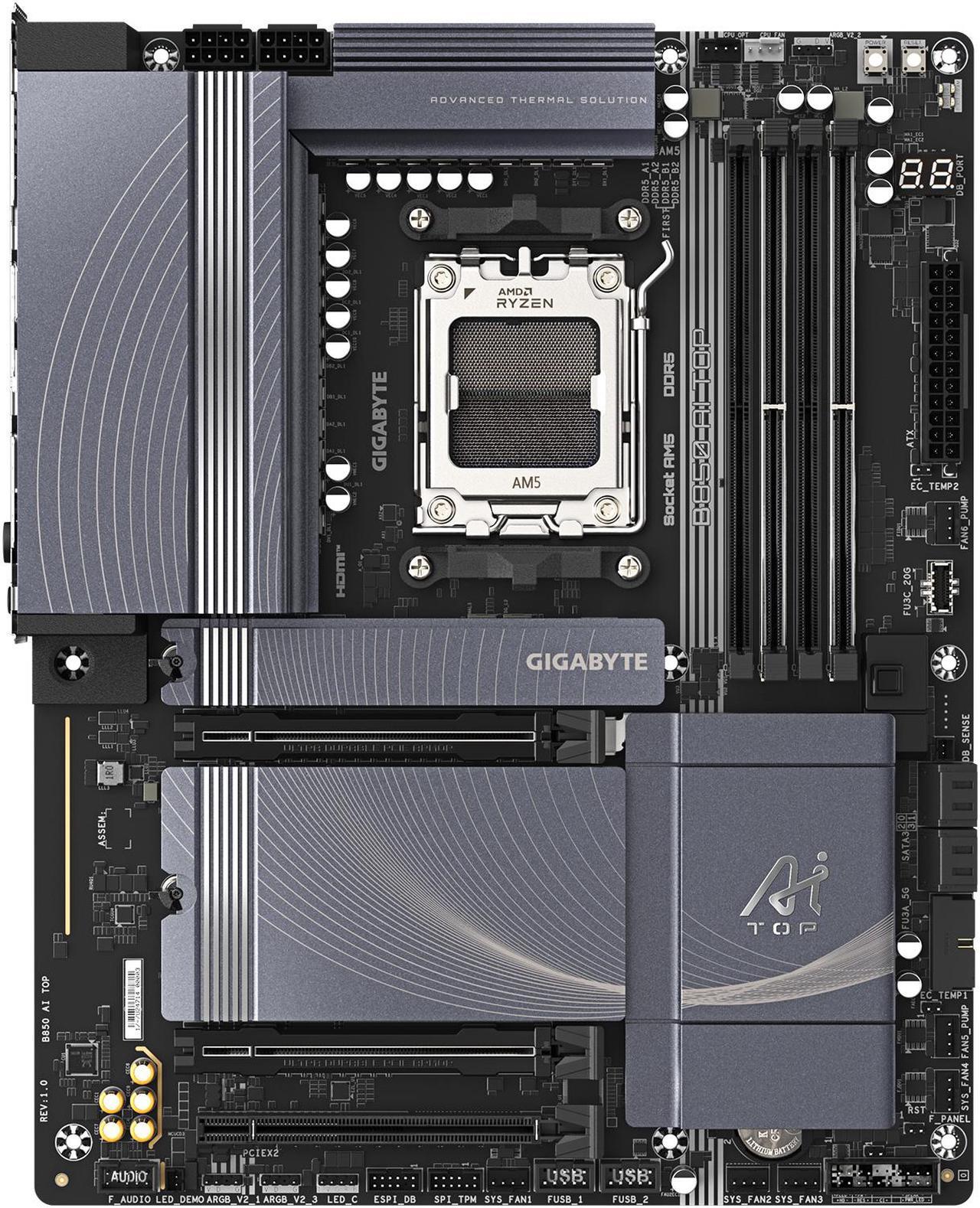

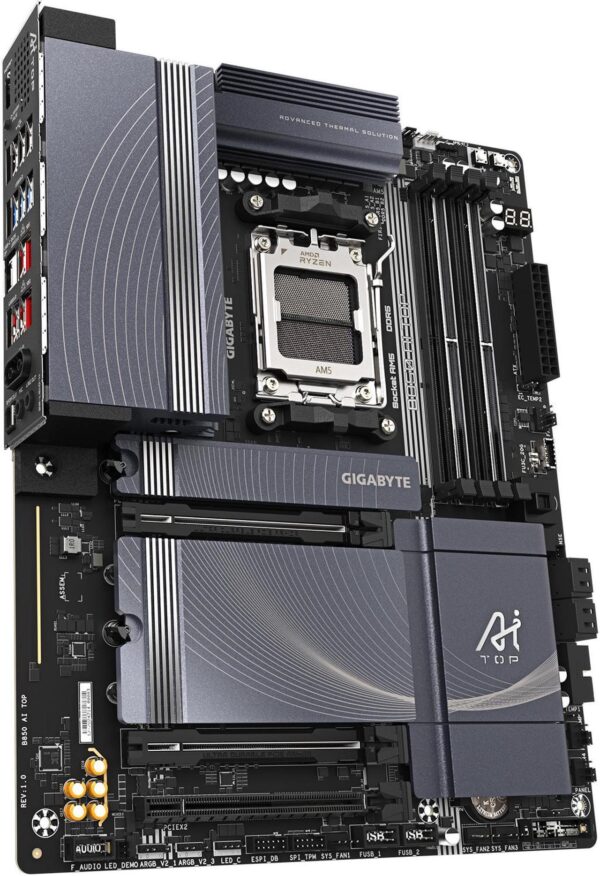

| The **GIGABYTE B850 AI TOP** is a high-performance ATX motherboard designed for demanding users, particularly those involved in local AI training and high-compute tasks. Built on the **AMD B850 chipset** for **AM5 socket** processors (AMD Ryzen™ 9000/8000/7000 Series), it focuses on robust power delivery, advanced cooling, and next-generation connectivity.
The board features a formidable **16+2+2 phases VRM solution** for exceptional power stability, supporting **DDR5 memory with overclocked speeds up to 8600 MT/s**. For graphics and expansion cards, it boasts **two PCIe 5.0 x16 slots** with enhanced durability (PCIe UD Slot X). Storage is cutting-edge with **two PCIe 5.0 M.2 slots** and one PCIe 4.0 M.2 slot, complemented by four SATA 6Gb/s ports. Connectivity is a standout feature with **dual 10GbE LAN ports** for ultra-fast wired networking and integrated **Wi-Fi 7** with a directional high-gain antenna for superior wireless performance. The rear I/O includes a versatile **USB-C® port supporting up to 40Gb/s**, along with multiple USB 3.2 Gen 2 and Gen 1 ports. User-friendly design elements like EZ-Latch Plus and EZ-Latch Click simplify component installation, making the GIGABYTE B850 AI TOP a premier choice for high-end workstations and gaming rigs focused on AI/ML workloads. |
|
