| Product Overview | |
|---|---|
| Manufacturer | ASUS ROG |
| Category | ROG STRIX F-GAMING Series ATX Motherboard (Premium Gaming) |
| Model | ROG STRIX B850-F GAMING WIFI |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DIMM slots, Max. 192GB, DDR5 Dual Channel Memory Architecture, Supports AMD EXPO™ Supports Memory Overclocking up to 8000+ MT/s |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot (from CPU) 1 x PCIe 4.0 x16 slot (supports x4 mode, from Chipset) |
| Storage Support | Total 4 x M.2 slots: 1 x M.2 22110 (PCIe 5.0 x4, from CPU) 1 x M.2 2280 (PCIe 5.0 x4, from Chipset) 2 x M.2 2280 (PCIe 4.0 x4, from Chipset) 2 x SATA 6Gb/s ports Supports RAID 0, RAID 1 for NVMe storage devices; RAID 0, 1, 5, 10 for SATA storage |

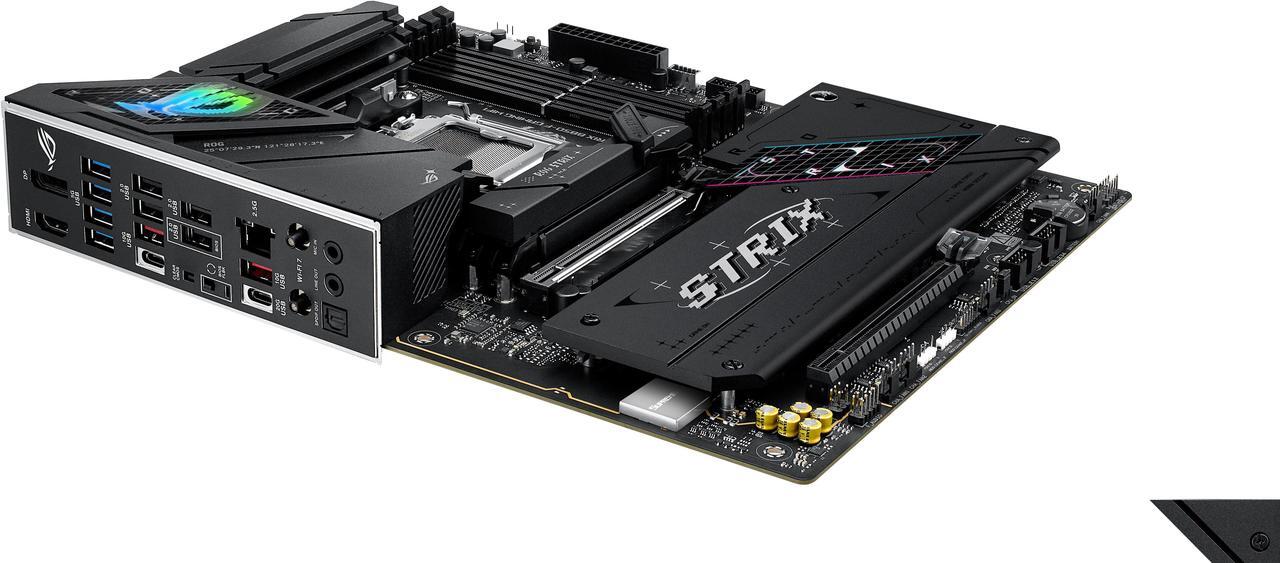

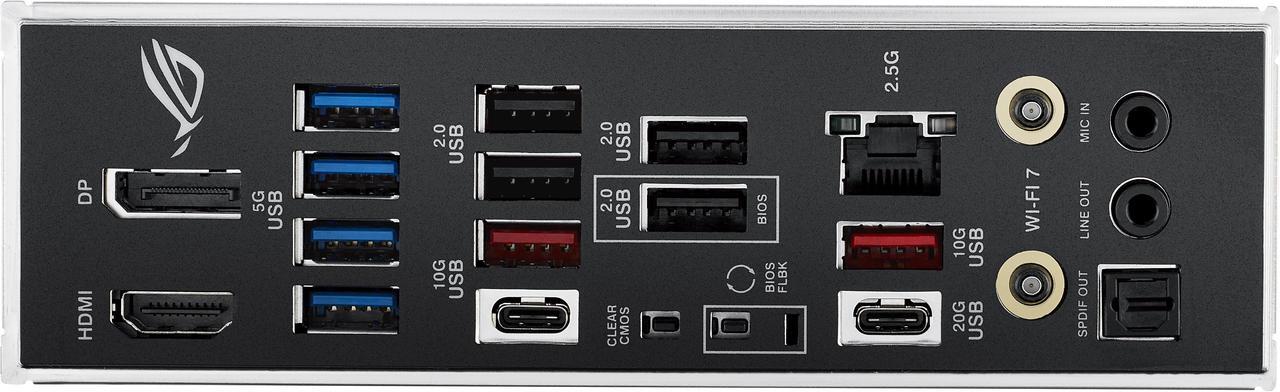

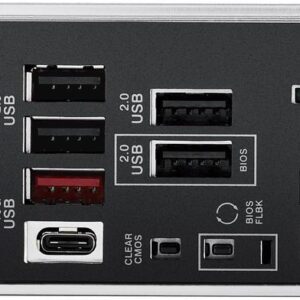

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2×2 Type-C® port (20Gbps) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x Type-C®, 10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 4 x USB 2.0 Type-A ports |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen 2 Type-C® connector (10Gbps) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 5Gbps ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Network | 1 x Intel® 2.5Gb Ethernet port Wi-Fi 7 (802.11be) Bluetooth® v5.4 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Savitech SV3H712 AMP, Impedance Sense, 120 dB SNR stereo playback output, 110 dB SNR recording input SupremeFX Shielding Technology, Supports up to 24-Bit/192 kHz playback Dolby Atmos Support |
| Power Delivery | 16(80A)+2(80A)+2(80A) Power Stages ProCool II Power Connector |
| Cooling Features | Integrated I/O Shield & VRM Heatsinks, High-conductivity Thermal Pads 4 x M.2 Heatsinks with Thermal Pads, Chipset Heatsink Dedicated AIO Pump Header, 4 x 4-pin PWM Chassis Fan Headers Fan Xpert 4 |
| Special Features | ASUS AI Intelligence (AI Advisor, AI Networking II, Two-Way AI Noise Cancelation) Aura Sync RGB Lighting (Multiple headers, Polymo Lighting) ROG Exclusive Features (ROG SupremeFX Audio, GameFirst VI, ROG Strix Utilities) DIY Friendly Features (BIOS FlashBack™, Q-LED, M.2 Q-Release, M.2 Q-Latch, ASUS WiFi Q-Antenna, Pre-mounted I/O Shield) |
| Display Output | 1 x DisplayPort™ 1 x HDMI™ port *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Windows® 11 64-bit (Assumed) |
| Bundled Accessories | Wi-Fi Antenna, SATA Cables, M.2 Screws/Q-Latch, User Manual, ROG Strix Stickers, Cable Ties. |

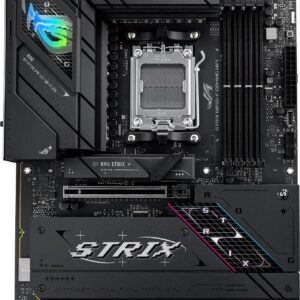

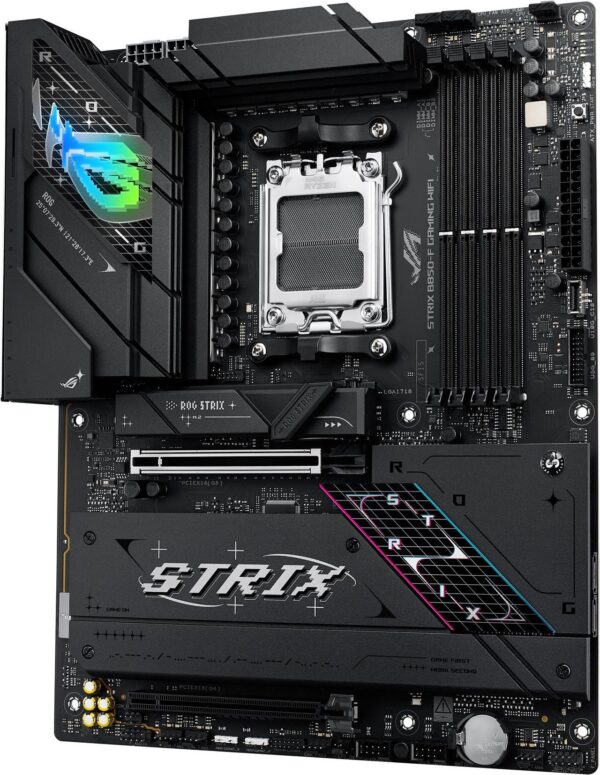

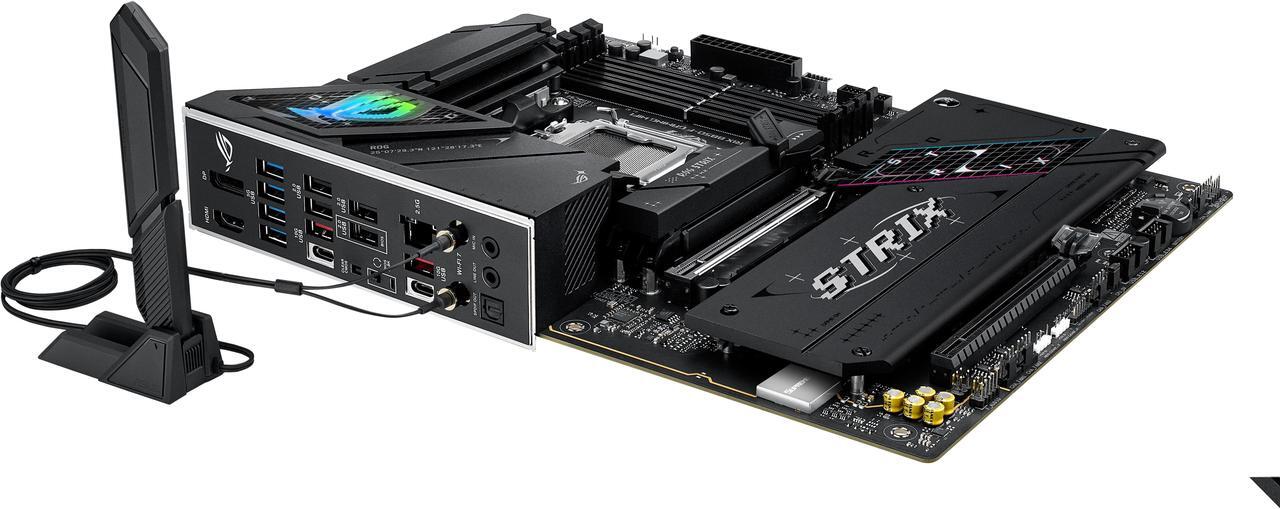

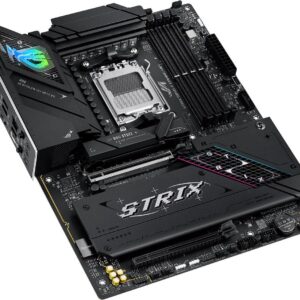

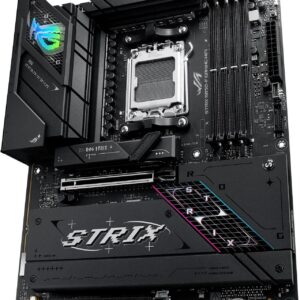

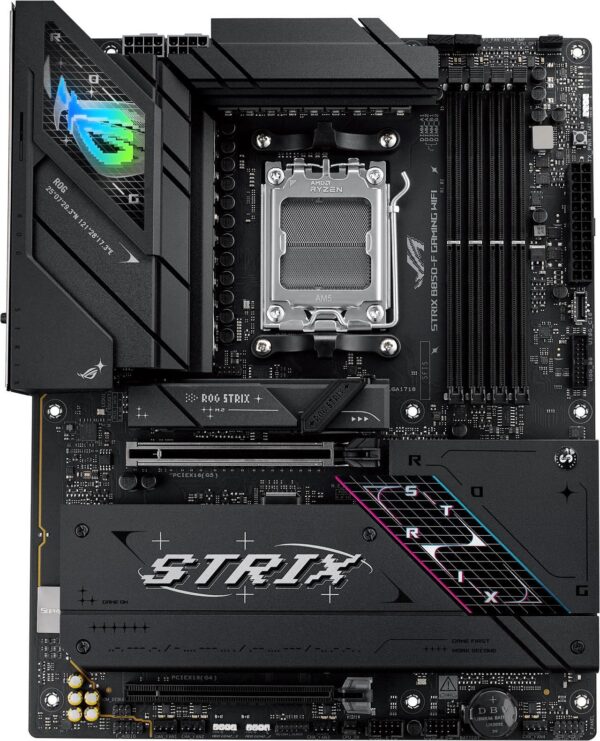

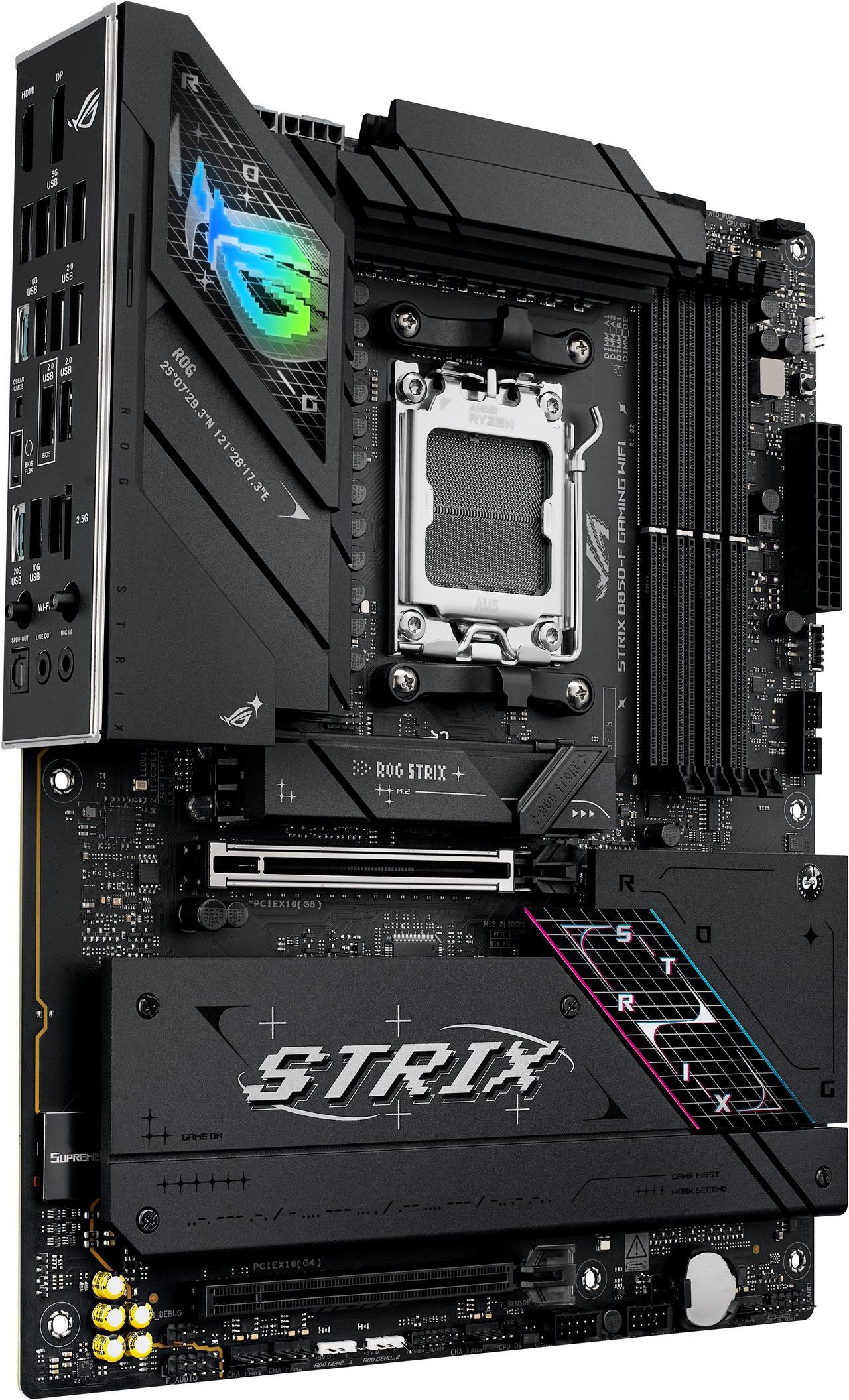

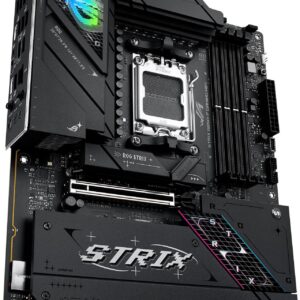

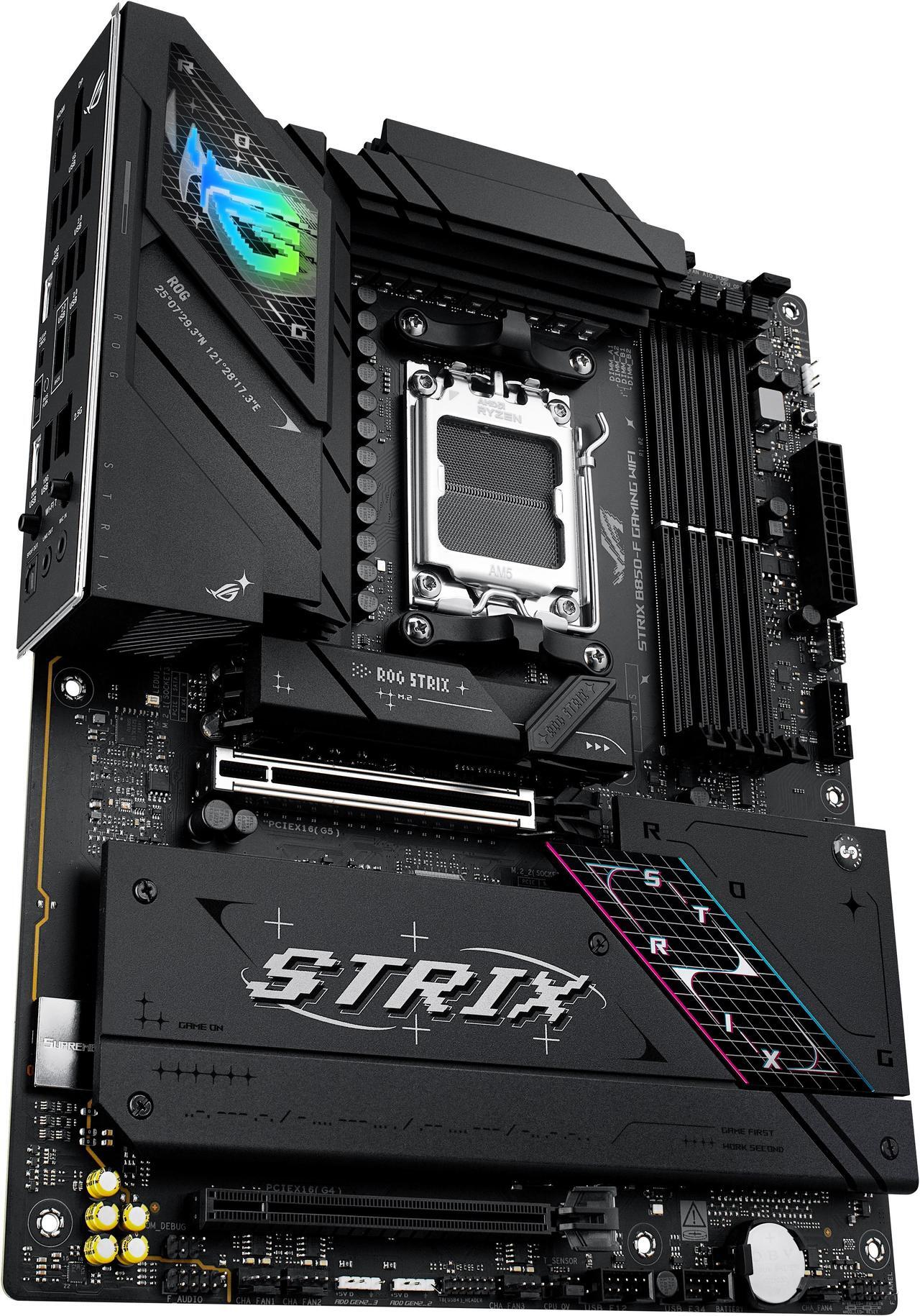

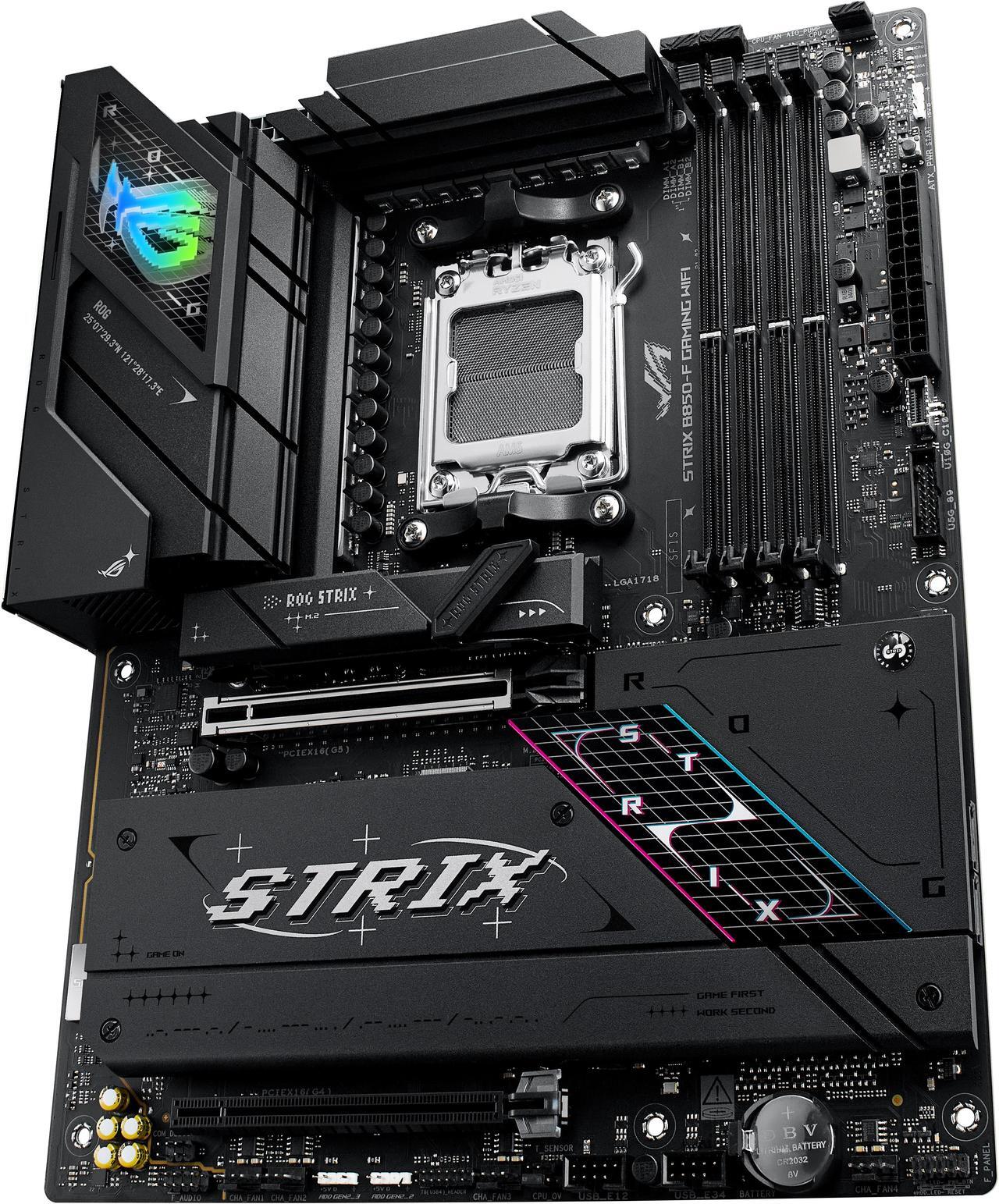

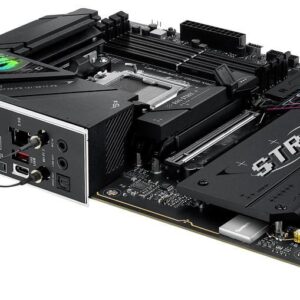

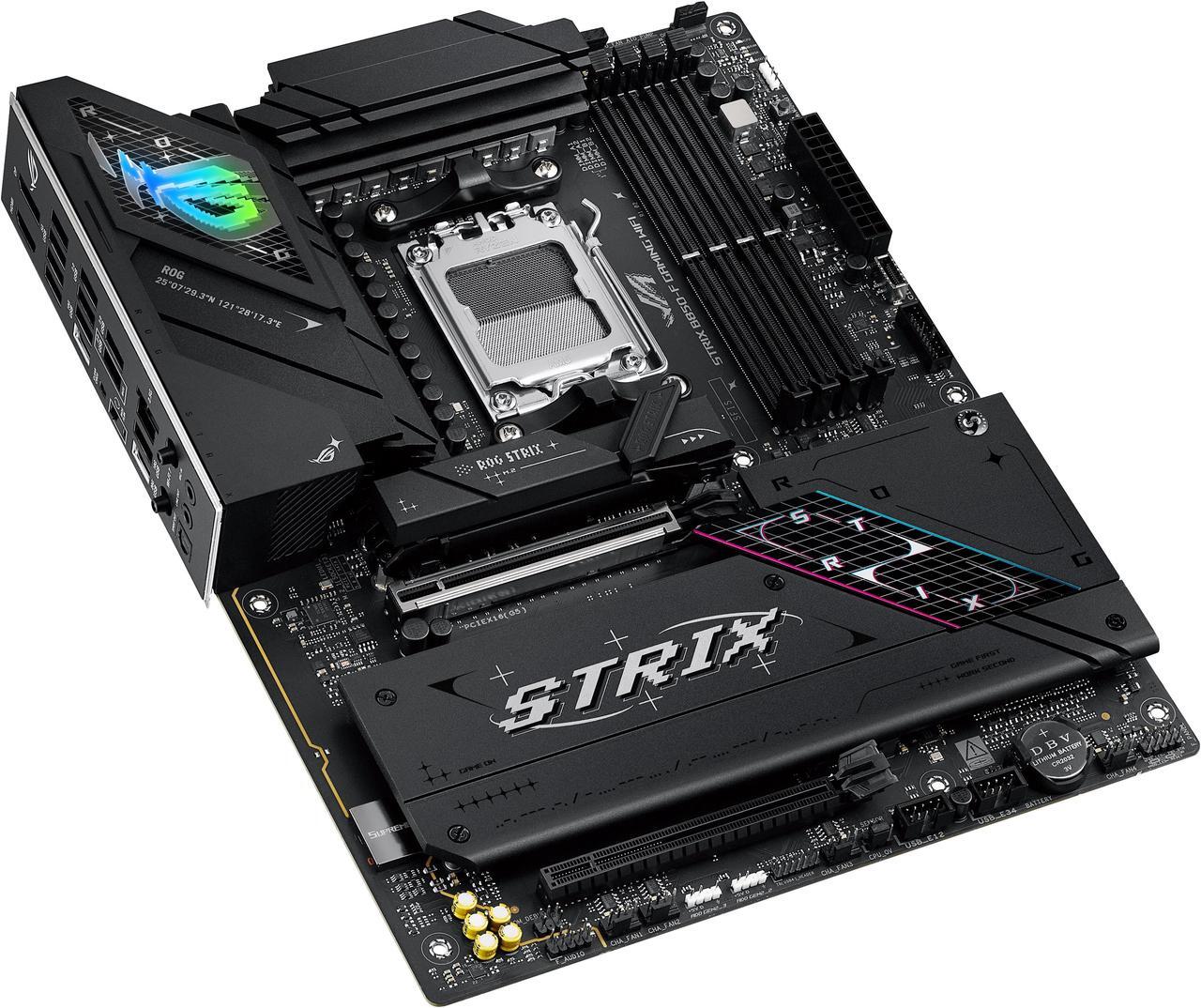

| The **ASUS ROG STRIX B850-F GAMING WIFI** is a premium ATX gaming motherboard designed for maximum performance with AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors on the AM5 platform. Built with the **AMD B850 chipset**, it leverages advanced power delivery and intelligent features.
This board features a robust **16(80A)+2(80A)+2(80A) power stage design** with ProCool II connectors, ensuring stable and efficient power for demanding CPUs and extreme overclocking. It supports **DDR5 memory across four DIMM slots**, with overclocking speeds up to 8000+ MT/s. For graphics, it includes a **PCIe 5.0 x16 SafeSlot** and an additional PCIe 4.0 x16 slot. Storage capabilities are extensive with **four M.2 slots** – two supporting PCIe 5.0 x4 and two supporting PCIe 4.0 x4 – all benefiting from dedicated heatsinks. Two SATA 6Gb/s ports provide additional storage options. Connectivity is cutting-edge with an **Intel® 2.5Gb Ethernet port**, integrated **Wi-Fi 7**, and Bluetooth 5.4 for unparalleled wireless performance. The comprehensive USB suite includes a 20Gbps USB 3.2 Gen 2×2 Type-C® port on the rear and a 10Gbps USB 3.2 Gen 2 Type-C® front header. With its advanced cooling solutions, ASUS AI Intelligence features, Aura Sync RGB lighting, and DIY-friendly designs like M.2 Q-Release, the ROG STRIX B850-F GAMING WIFI is engineered to deliver an elite gaming experience and handle advanced AI PC applications. |
|
ASUS ROG STRIX B850-F GAMING WIFI: AM5, AMD B850, DDR5 8000+(OC), PCIe 5.0, Wi-Fi 7, 2.5GbE LAN ATX Motherboard
