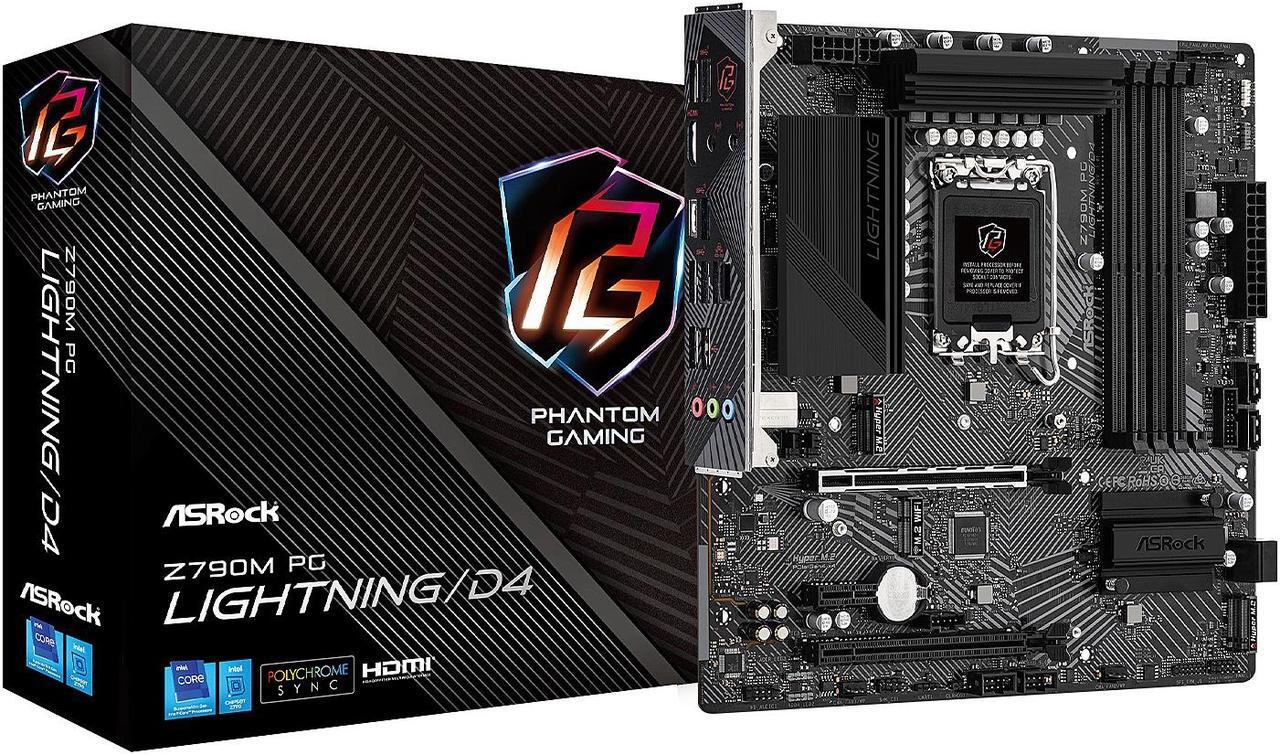

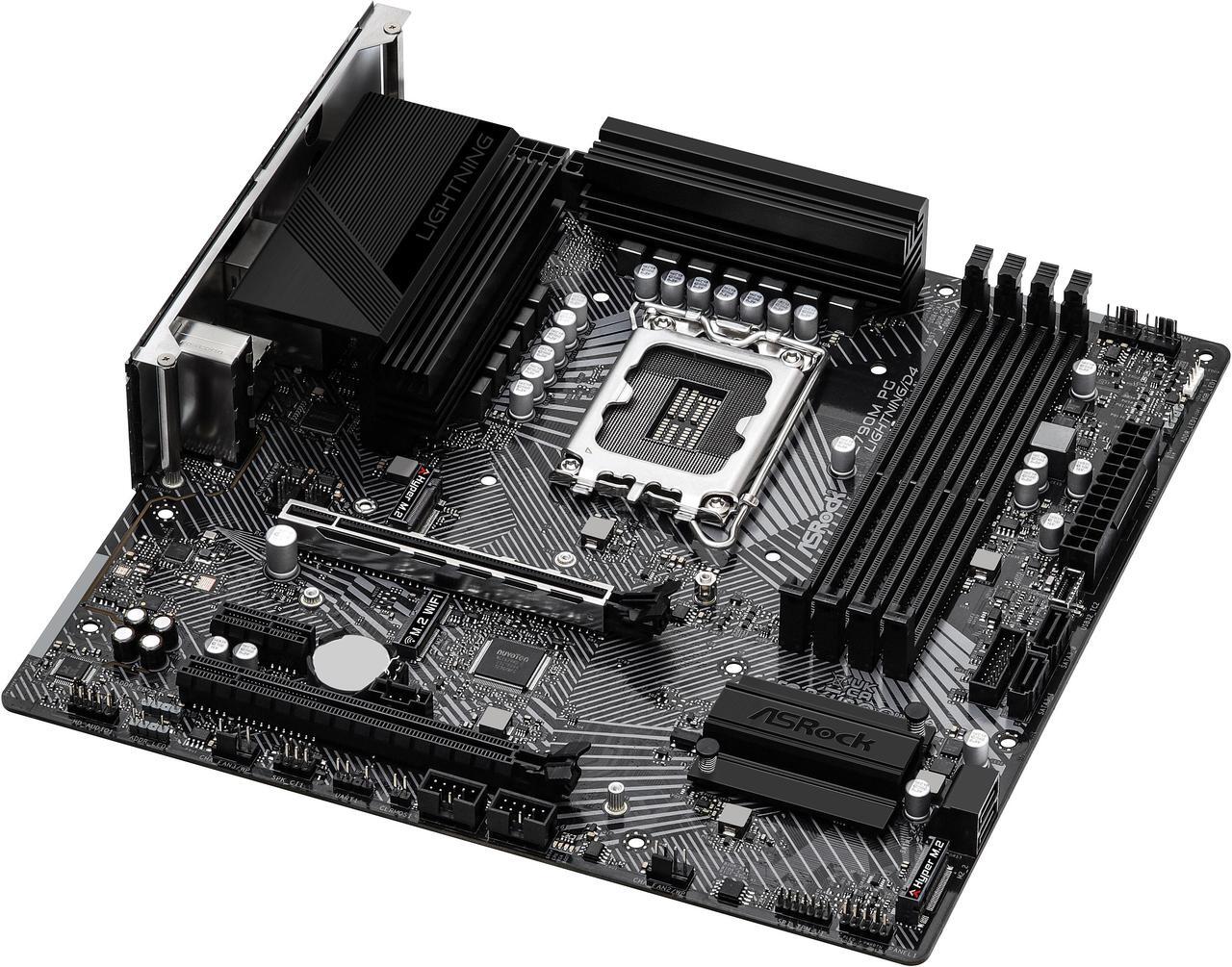

ASRock Z790M‑PG Lightning/D4 – micro‑ATX DDR4 Motherboard with PCIe 4.0, Dual M.2, Intel Gigabit LAN & USB‑C (LGA1700, Intel 12th/13th Gen)
1,00 EGP
Shipping calculated at checkout.
Estimated delivery:20 days
Guarantee Safe and Secure Payment Checkout
| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | Phantom Gaming Micro-ATX Motherboard |
| Model | Z790M PG LIGHTNING/D4 |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Chipset | Intel® Z790 Express Chipset |
| Technical Specifications | |
| CPU Socket | LGA 1700 for Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold, and Celeron® Processors |
| Memory Support | 4 x DDR4 DIMM slots, Max. 128GB Supports DDR4 5000+(OC) MHz Dual Channel, Intel® XMP 2.0 support |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot |
| Storage Support | 2 x M.2 Slots (1 x PCIe 4.0 x4, 1 x PCIe 4.0 x4/SATA) 4 x SATA 6Gb/s ports RAID 0, 1, 5, 10 support |

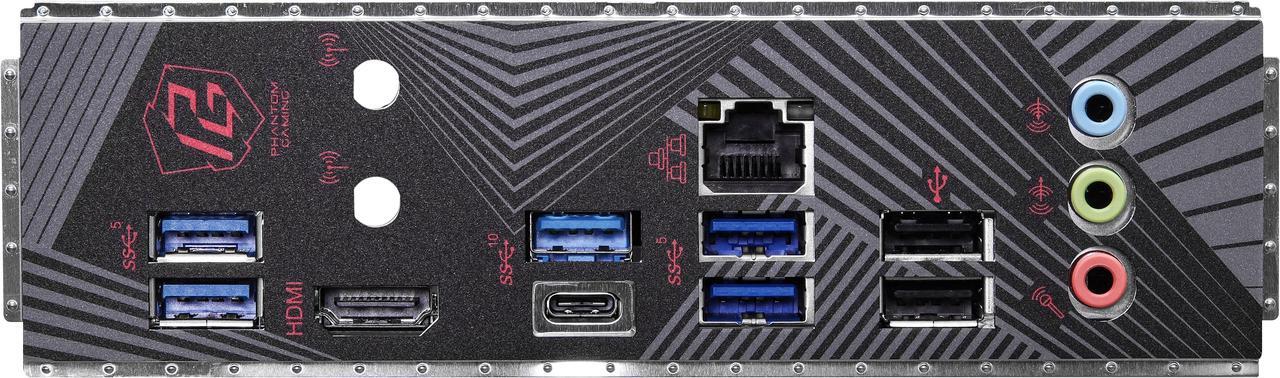

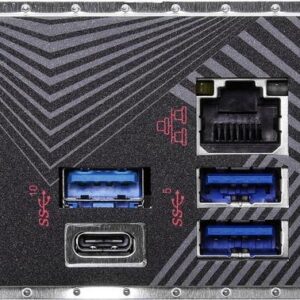

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen1 header (supports 2 ports) 2 x USB 2.0 headers (support 4 ports) |
| Network | 1 x Dragon RTL8125BG 2.5GbE LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) ELNA Audio Caps |
| Power Delivery | 10 Phase Power Design 8+4 Pin CPU Power Connectors Premium 50A Power Choke |
| Cooling Features | Large VRM Heatsinks Full Coverage M.2 Heatsink 5 x Fan Headers (PWM/DC) Water Pump Header Support |
| Overclocking Features | Supports BCLK Overclocking Memory Timing Control in BIOS Load-Line Calibration, Voltage Tweaks |
| Special Features | Polychrome RGB Sync (Addressable RGB & RGB LED headers) Reinforced Steel PCIe Slot ASRock Full Spike Protection |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Bundled Accessories | 2 x SATA Cables, 1 x M.2 Screw Kit, Quick Installation Guide |
|

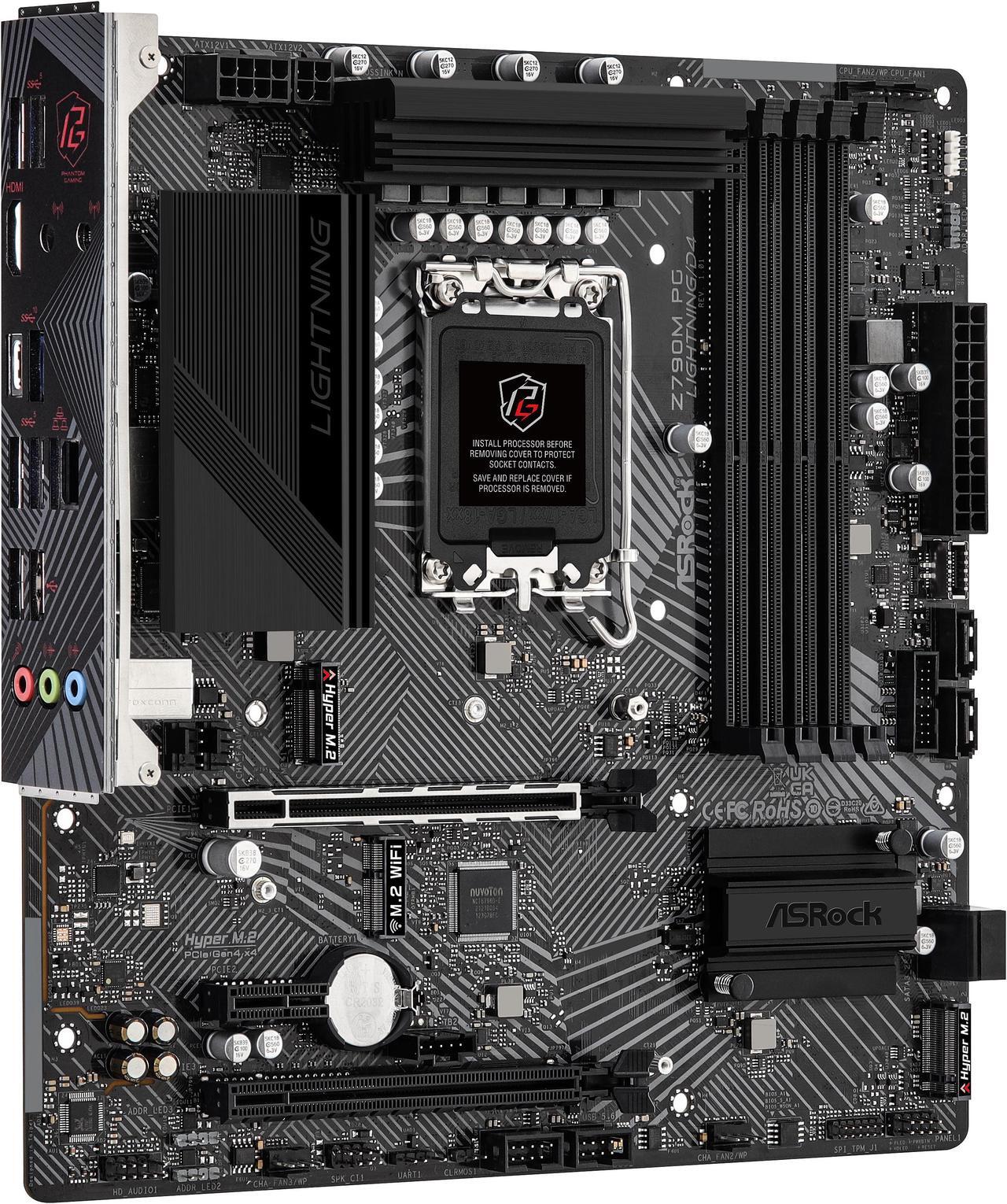

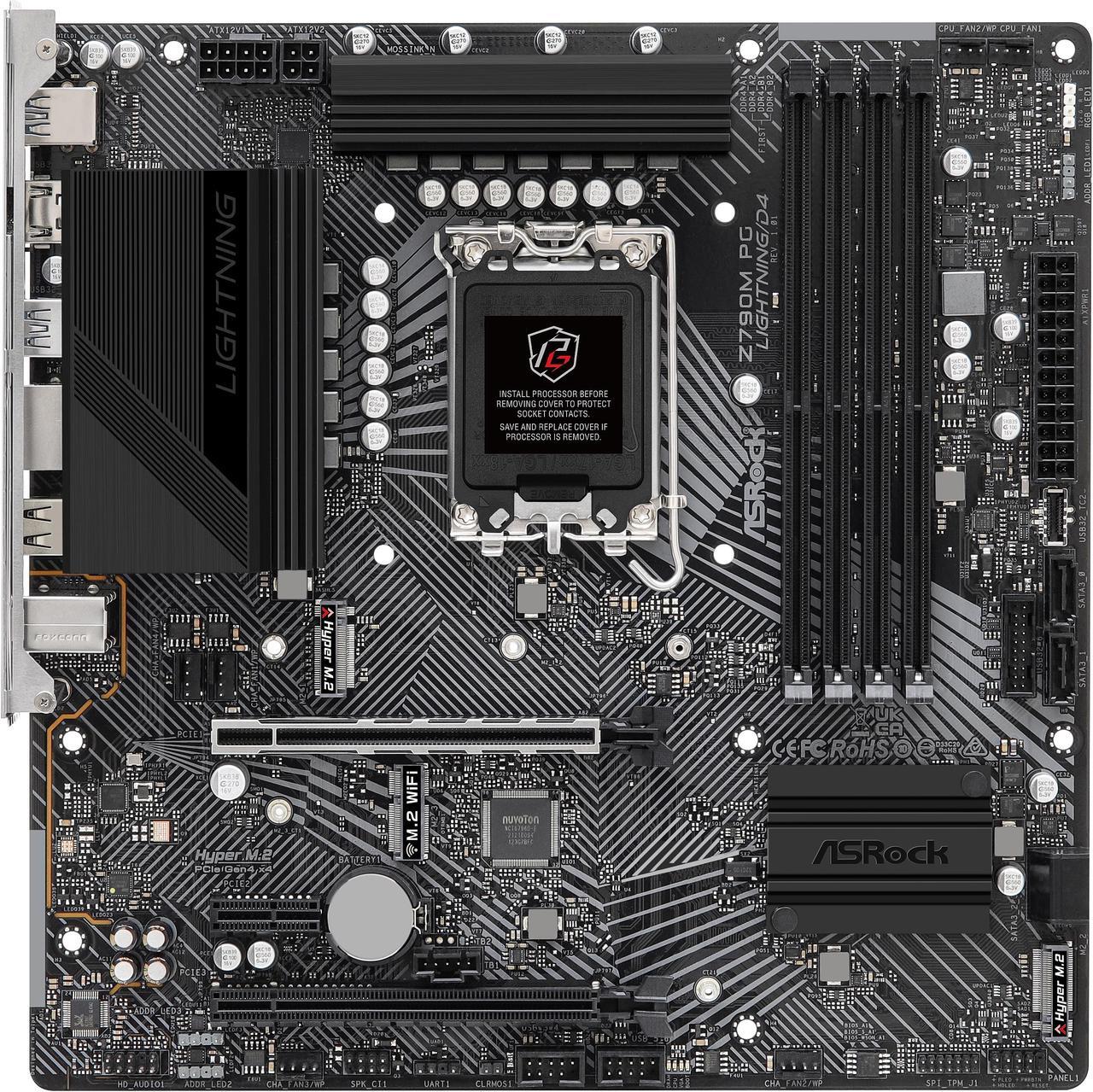

The ASRock Z790M PG LIGHTNING/D4 is a compact yet powerful Micro-ATX motherboard built for mainstream gamers and performance users. Powered by the Intel Z790 chipset and supporting the latest Intel® LGA 1700 processors, it delivers next-gen performance in a small form factor. With support for up to 128GB of high-speed DDR4 memory, it strikes a balance between modern features and DDR4 affordability.
Equipped with a PCIe 5.0 x16 slot, dual M.2 slots, and a 2.5GbE LAN controller, the board ensures fast graphics, storage, and network throughput. Its 10-phase power design and full-size VRM heatsinks offer solid stability, especially when overclocking. It also supports Polychrome RGB lighting, allowing for synchronized lighting effects with compatible components. Designed with gamers and compact PC builders in mind, the Z790M PG LIGHTNING/D4 is a reliable choice for high-performance micro-ATX systems without sacrificing connectivity or expansion capabilities. |
|
