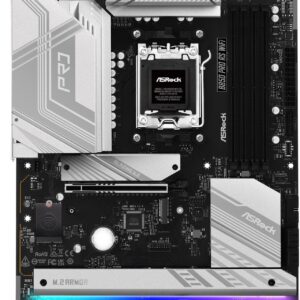

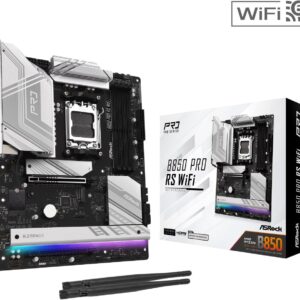

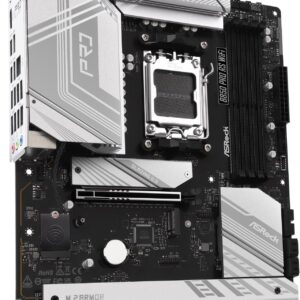

ASRock B850 PRO RS WIFI: AM5, AMD B850, DDR5 8000+(OC), PCIe 5.0, 2.5GbE LAN ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | Pro RS Series ATX Motherboard (Mainstream Performance) |
| Model | B850 Pro RS WIFI |
| Form Factor | ATX (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DDR5 DIMM slots, Max. 256GB Dual Channel DDR5 Memory Technology Supports DDR5 ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) Memory Overclocking up to 8000+ MT/s (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (PCIE1, from CPU) with Reinforced Steel Slot 1 x PCIe 4.0 x16 Slot (PCIE2, from Chipset, supports x4 mode) 1 x M.2 Socket (Key E) for WiFi/BT PCIe WiFi module (Module sold separately) |
| Storage Support | Total 4 x M.2 slots: 1 x Blazing M.2 (M2_1, from CPU, PCIe Gen5x4 128 Gb/s) 2 x Hyper M.2 (M2_2, M2_3, from CPU/Chipset, PCIe Gen4x4 64 Gb/s) 1 x Ultra M.2 (M2_4, from Chipset, PCIe Gen3x4 32 Gb/s) 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0, RAID 1, RAID 10 for SATA and PCIe storage devices |

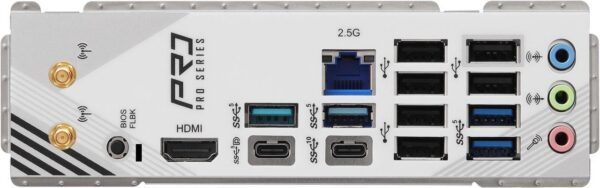

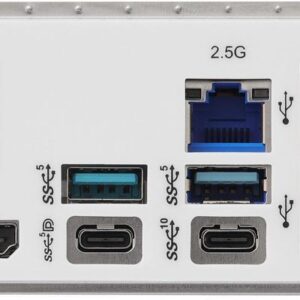

| USB Ports (Rear I/O) | 1 x USB 3.2 Gen2 Type-C (10Gbps) 1 x USB 3.2 Gen1 Type-C (5Gbps) 4 x USB 3.2 Gen1 Type-A (5Gbps) 6 x USB 2.0 Type-A |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen2x2 Type-C header (20Gbps) 2 x USB 3.2 Gen1 headers (supports 4 additional USB 5Gbps ports) 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports) |
| Network | 1 x Dragon RTL8125BG 2.5 Gigabit LAN port Wi-Fi/Bluetooth: Supports 802.11ax/ac/a/b/g/n, Bluetooth (Module sold separately) |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec Nahimic Audio |
| Power Delivery | 14+2+1 Phase Power Design 80A Dr.MOS Power Stages for VCore+SOC+MISC |
| Cooling Features | Aluminum Heatsink Design for VRM XXL M.2 Heatsink, M.2 Bottom Heatsink PWM/DC Fan Support, Fan-Tastic Tuning |
| Special Features | ASRock Pro RS Design Reinforced Steel Slot [PCIe 5.0 Version] Auto Driver Installer, BIOS Flashback, Flexible Integrated I/O Shield POLYCHROME RGB / SignalRGB Sync, Ultra USB Power, Full Spike Protection |
| Display Output | 1 x HDMI 1 x USB Type-C (DisplayPort Alt Mode) *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Microsoft Windows® 10 64-bit / 11 64-bit |

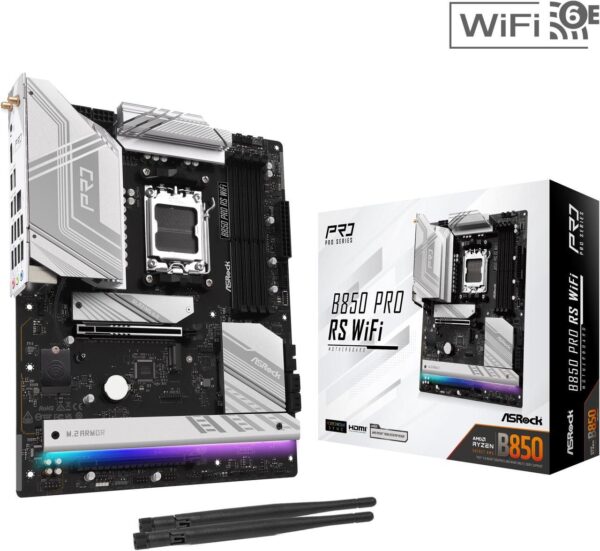

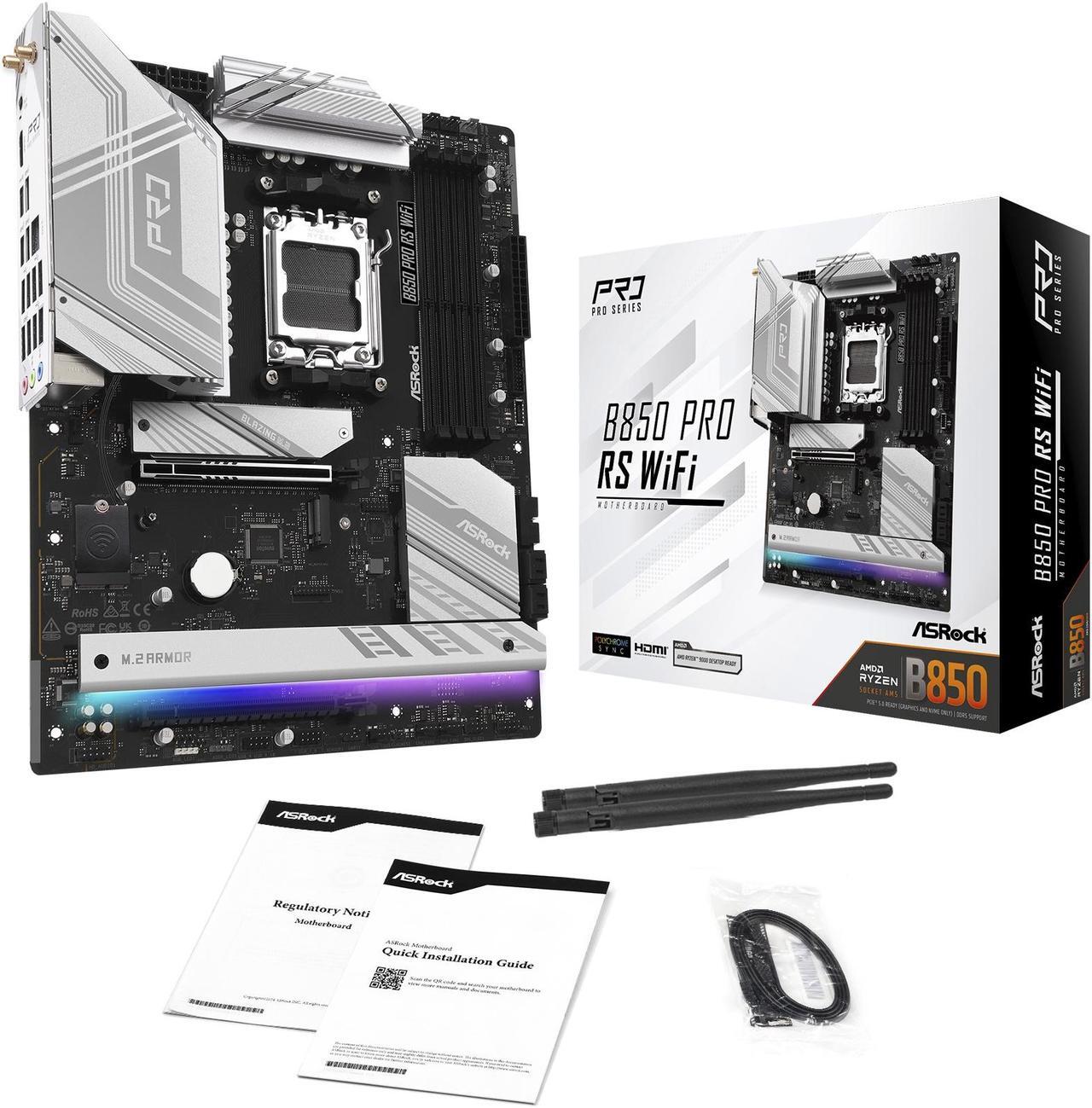

| Bundled Accessories | SATA Data Cables, M.2 Screws, User Manual, Software CD. (Contents may vary by region). |

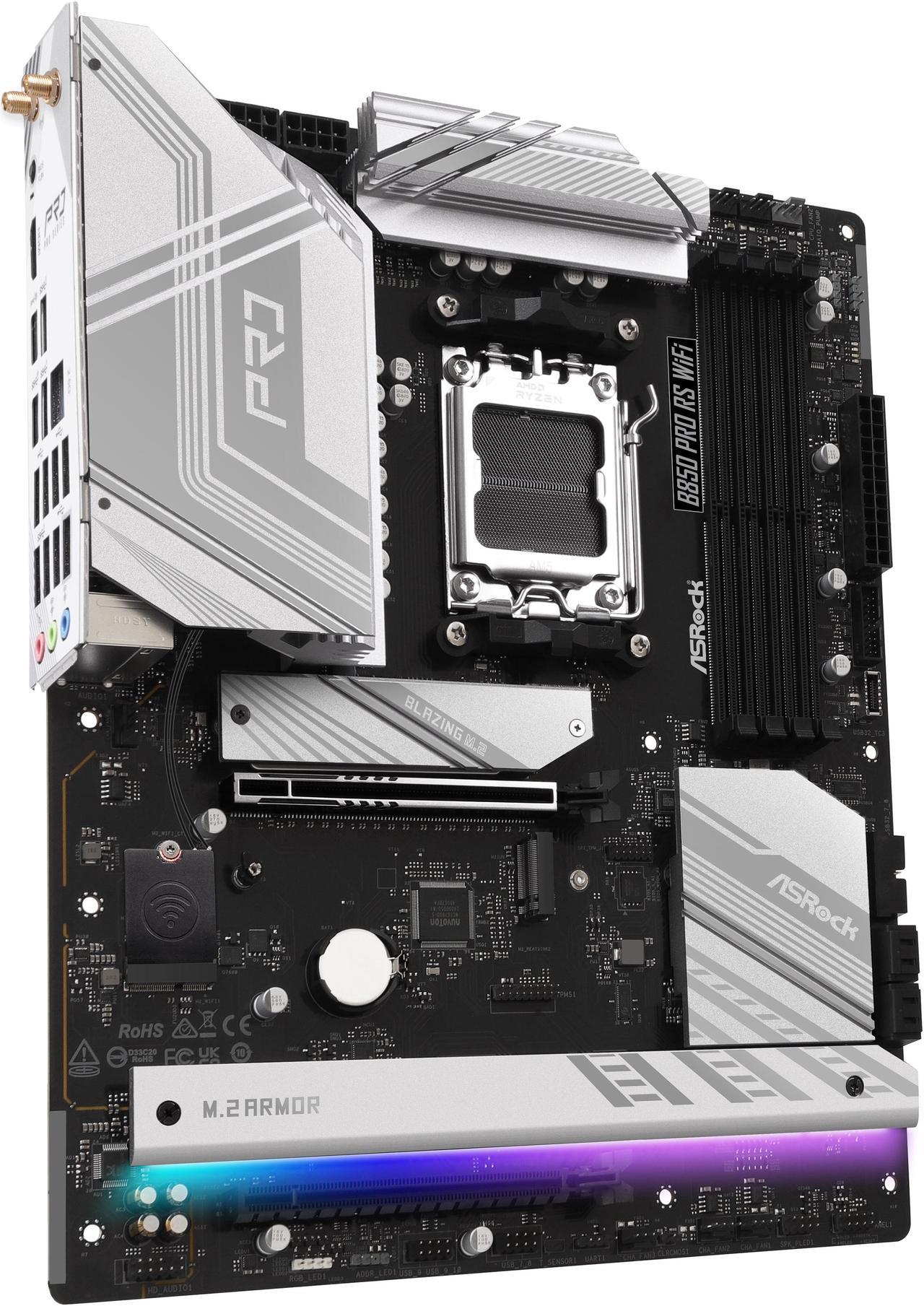

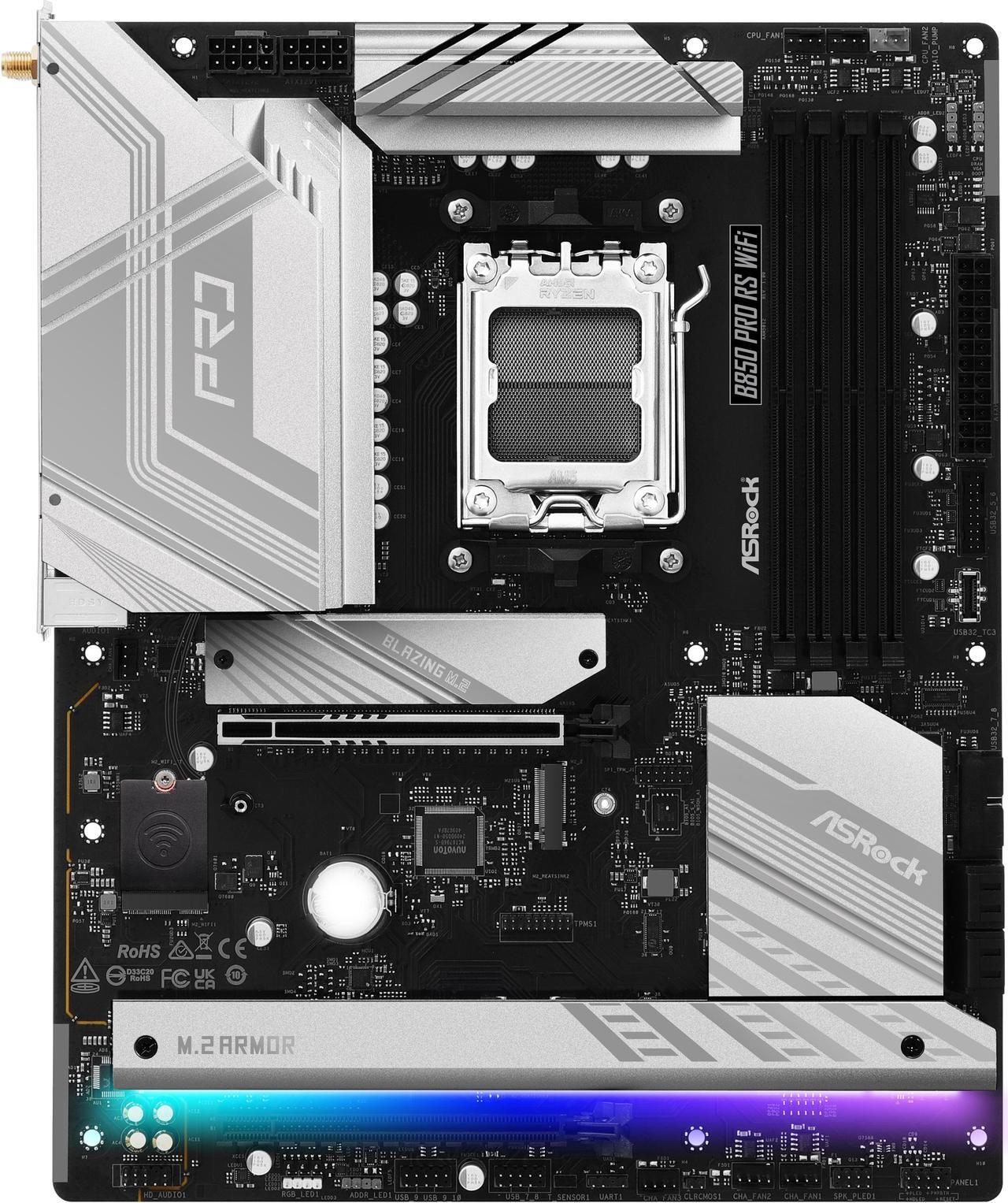

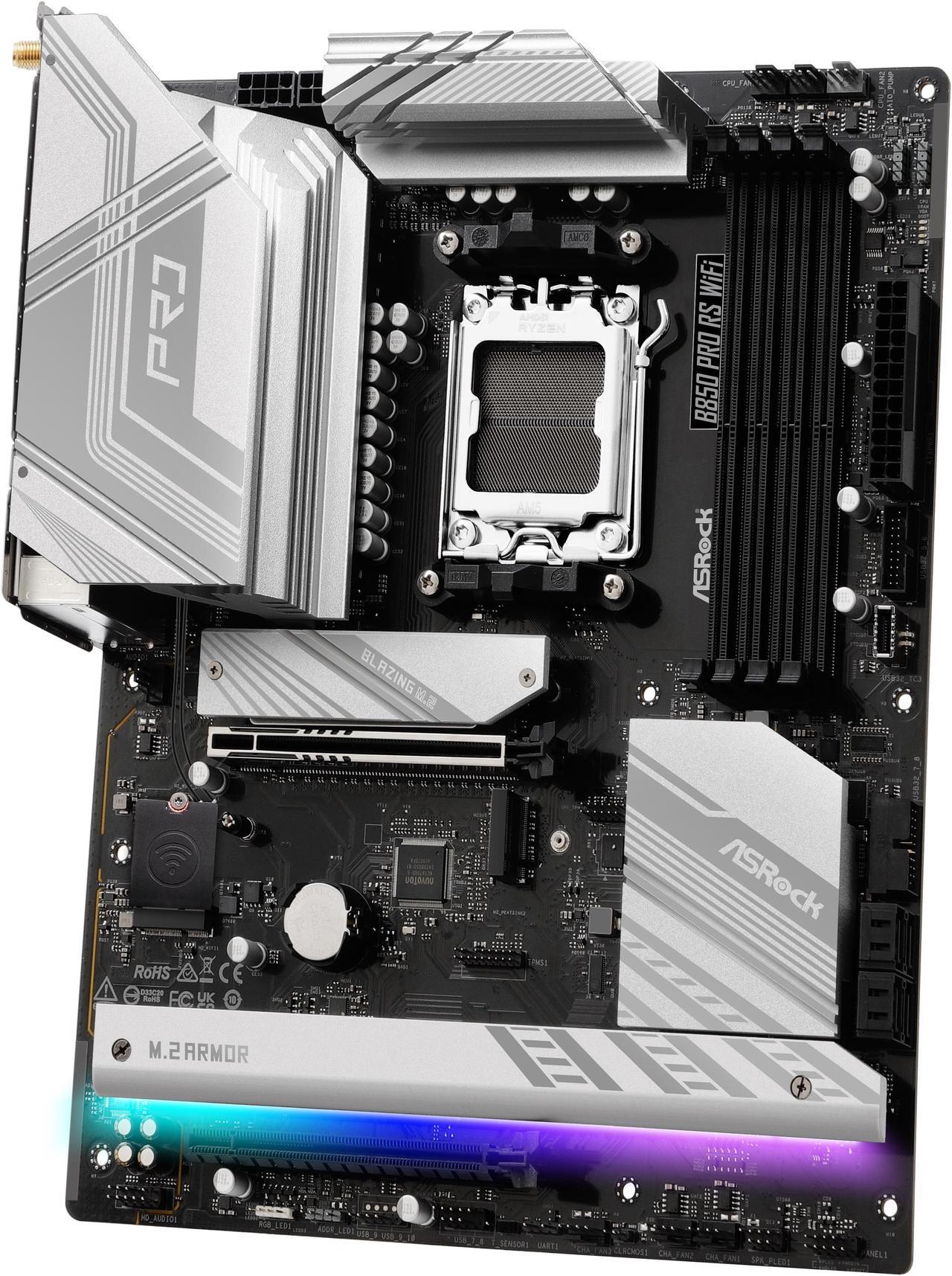

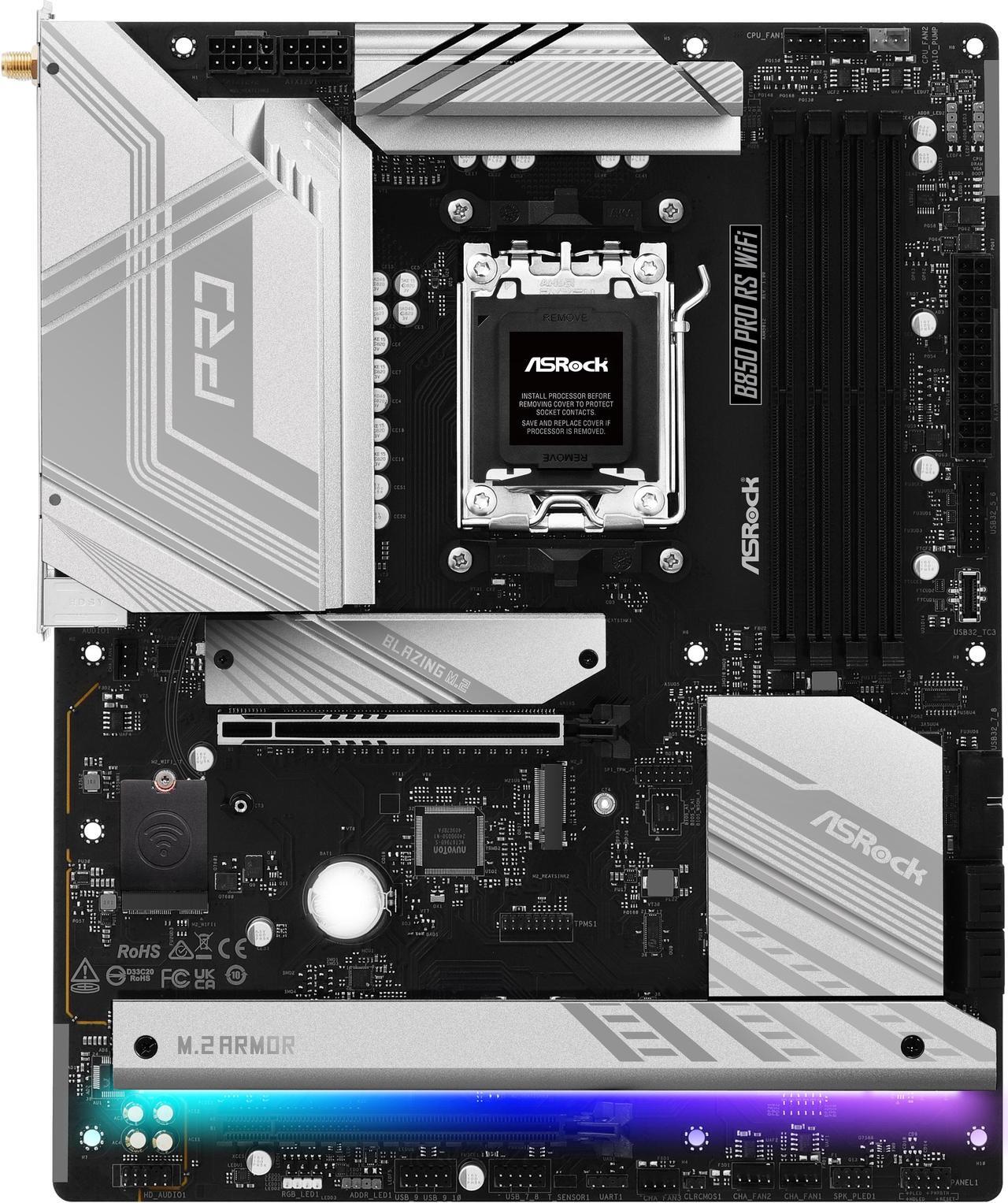

| The **ASRock B850 Pro RS WIFI** is an ATX motherboard designed for the latest **AMD Ryzen™ 9000, 8000, and 7000 Series Processors** on the AM5 socket, utilizing the **AMD B850 chipset**. It offers a blend of modern features and reliable performance for a mainstream PC build.
The board features a robust **14+2+1 power phase design with 80A Dr.MOS**, ensuring stable power delivery for demanding CPUs and supports **DDR5 memory up to 8000+ MT/s (OC)** across four DIMM slots. For graphics, it includes a **PCIe 5.0 x16 slot** with a Reinforced Steel Slot for added durability. Storage options are comprehensive with **four M.2 slots** (one PCIe Gen5x4, two PCIe Gen4x4, and one PCIe Gen3x4), alongside four SATA 6Gb/s connectors. Connectivity includes a **Dragon RTL8125BG 2.5 Gigabit LAN** port. Please note that a **Wi-Fi/Bluetooth module is NOT included** but can be added via the dedicated M.2 Key E slot. The motherboard offers a wide array of USB ports, including a 20Gbps USB 3.2 Gen2x2 Type-C header for the front panel, and multiple USB 3.2 Gen2/Gen1 and USB 2.0 ports. Enhanced by Nahimic Audio, efficient cooling solutions, and user-friendly features like BIOS Flashback and Auto Driver Installer, the ASRock B850 Pro RS provides a solid and future-ready foundation for various computing needs. |
|
