| Product Overview | |
|---|---|
| Manufacturer | ASRock |
| Category | LiveMixer Series ATX Motherboard (Content Creation & Streaming) |
| Model | B850 LiveMixer WiFi |
| Form Factor | ATX (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) |
| Chipset | AMD B850 |
| Technical Specifications | |
| CPU Socket | Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Support | 4 x DDR5 DIMM slots, Max. 256GB Dual Channel DDR5 Memory Technology Supports DDR5 ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) Memory Overclocking up to 8000+ MT/s (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (from CPU) 2 x PCIe 4.0 x16 Slots (from Chipset, support x4 mode) |
| Storage Support | Total 3 x M.2 slots: 1 x Blazing M.2 (from CPU, PCIe Gen5x4) 2 x Hyper M.2 (from CPU/Chipset, PCIe Gen4x4) 2 x SATA3 6.0 Gb/s Connectors Supports RAID 0, RAID 1, RAID 10 for NVMe & SATA storage devices |
| USB Ports (Rear I/O) | 1 x USB 3.2 Gen2x2 Type-C (20Gbps) 1 x USB 3.2 Gen2 Type-C (10Gbps) 1 x USB 3.2 Gen2 Type-A (10Gbps) 4 x USB 3.2 Gen1 Type-A (5Gbps) 8 x USB 2.0 Type-A |
| USB Ports (Front Headers) | 1 x USB 3.2 Gen2x2 Type-C header (20Gbps) 2 x USB 3.2 Gen1 headers (supports 4 additional USB 5Gbps ports) 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports) |
| Network | 1 x Realtek 2.5G LAN 802.11be Wi-Fi 7 Module Bluetooth 5.4 |
| Audio | Realtek ALC1220 7.1 CH HD Audio Codec Nahimic Audio |
| Power Delivery | 14+2+1 Phase Power Design 80A Dr.MOS for VCore+SOC+MISC |
| Cooling Features | Aluminum Heatsink for VRM Enlarged M.2 Heatsink, M.2 Bottom Heatsink PWM/DC Fan Support, Thermistor Header, Fan-Tastic Tuning |

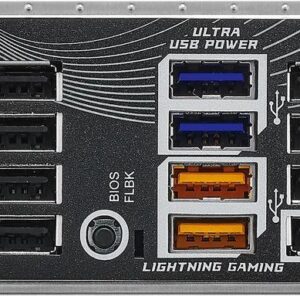

| Special Features | ASRock LiveMixer Series Design (Optimized for Content Creation/Streaming) ASRock Hi-Density Power Connector, 20K Capacitor, 8 Layer PCB Lightning Gaming Ports, Ultra USB Power, BIOS Flashback, Auto Driver Installer Flexible Integrated I/O Shield, POLYCHROME RGB / SignalRGB Support |
| Display Output | 1 x HDMI 1 x DisplayPort *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Operating System Support | Microsoft Windows® 10 64-bit / 11 64-bit |

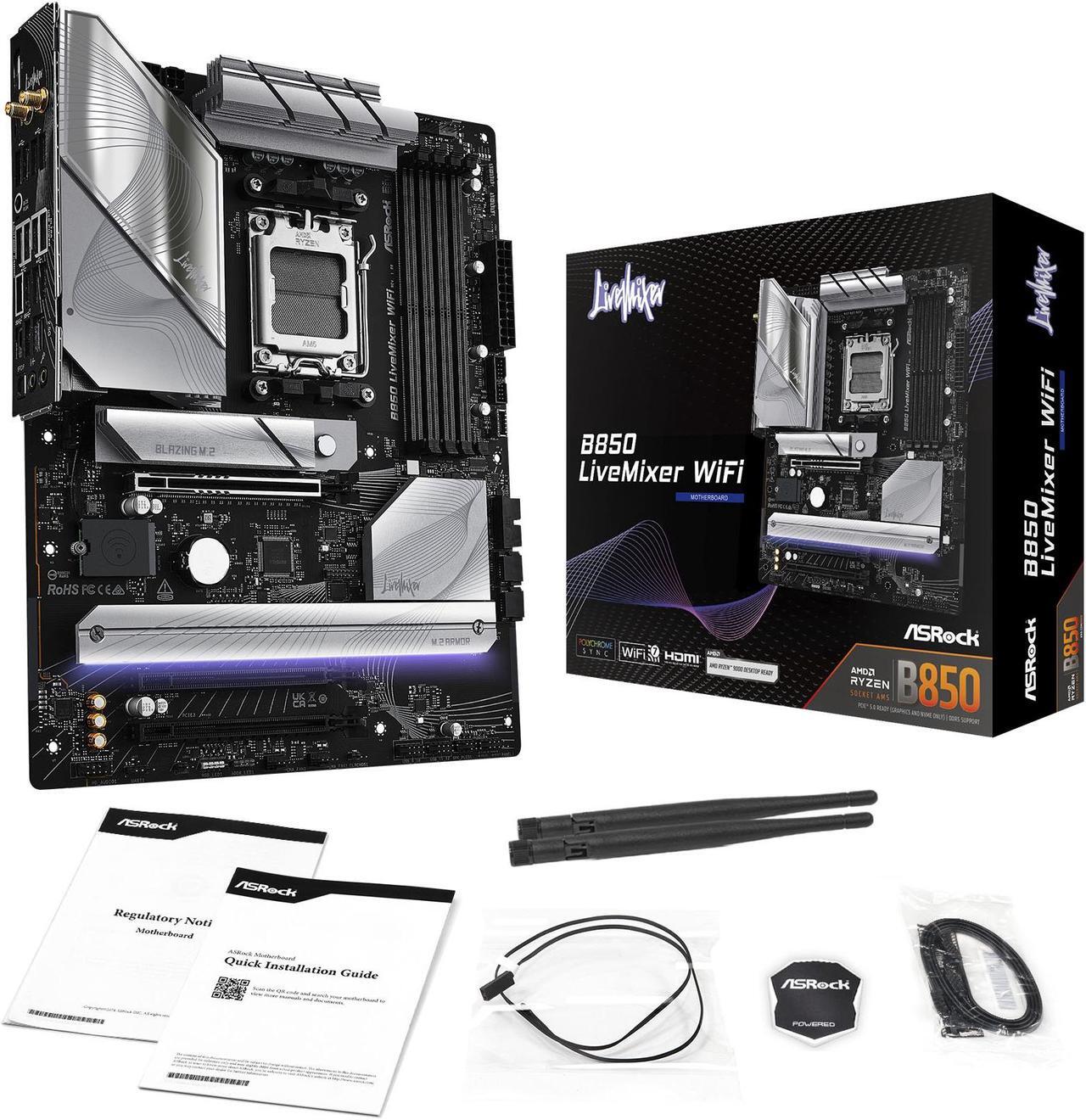

| Bundled Accessories | Wi-Fi Antenna, SATA Data Cables, M.2 Screws, User Manual, Software CD. (Contents may vary by region). |

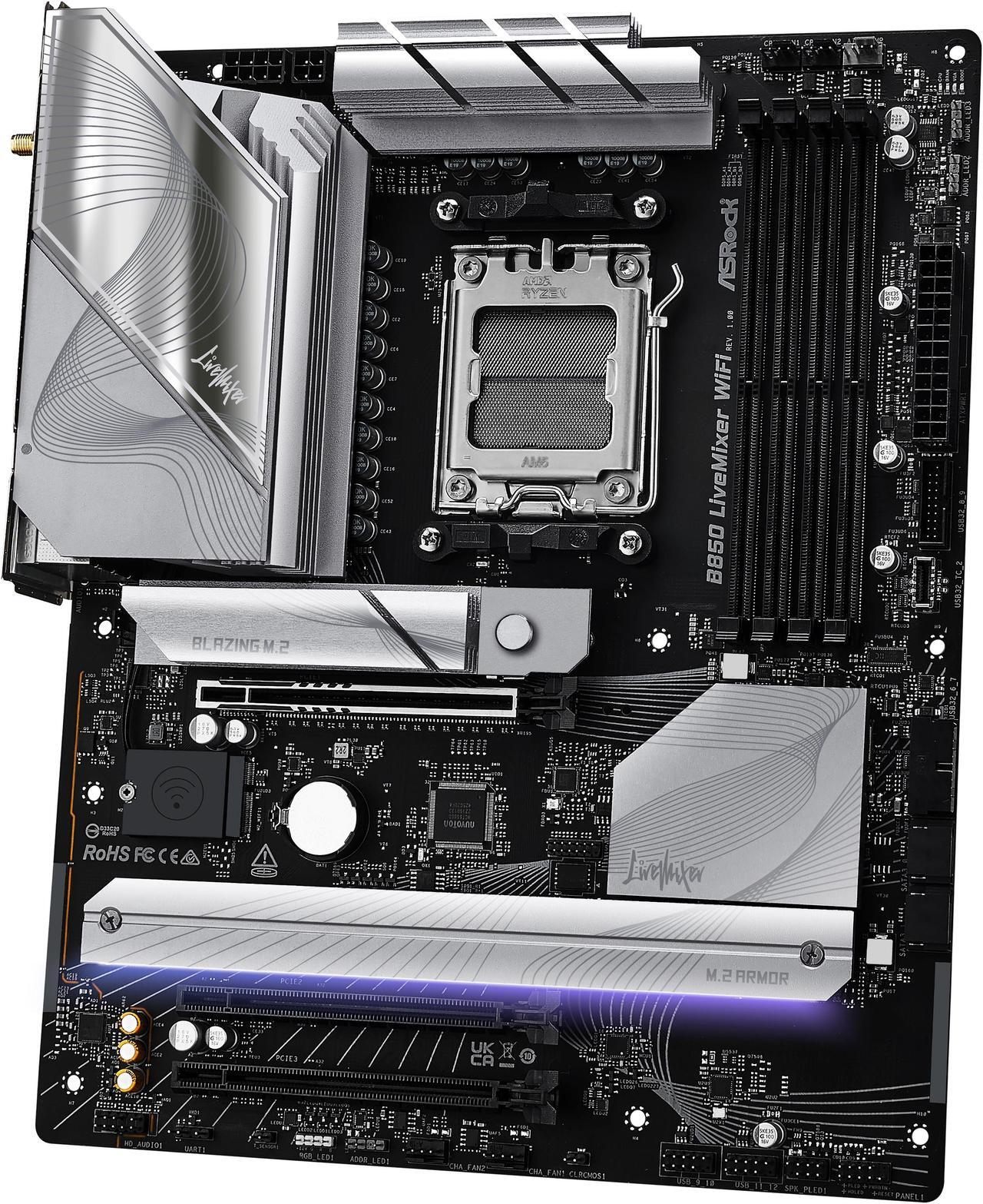

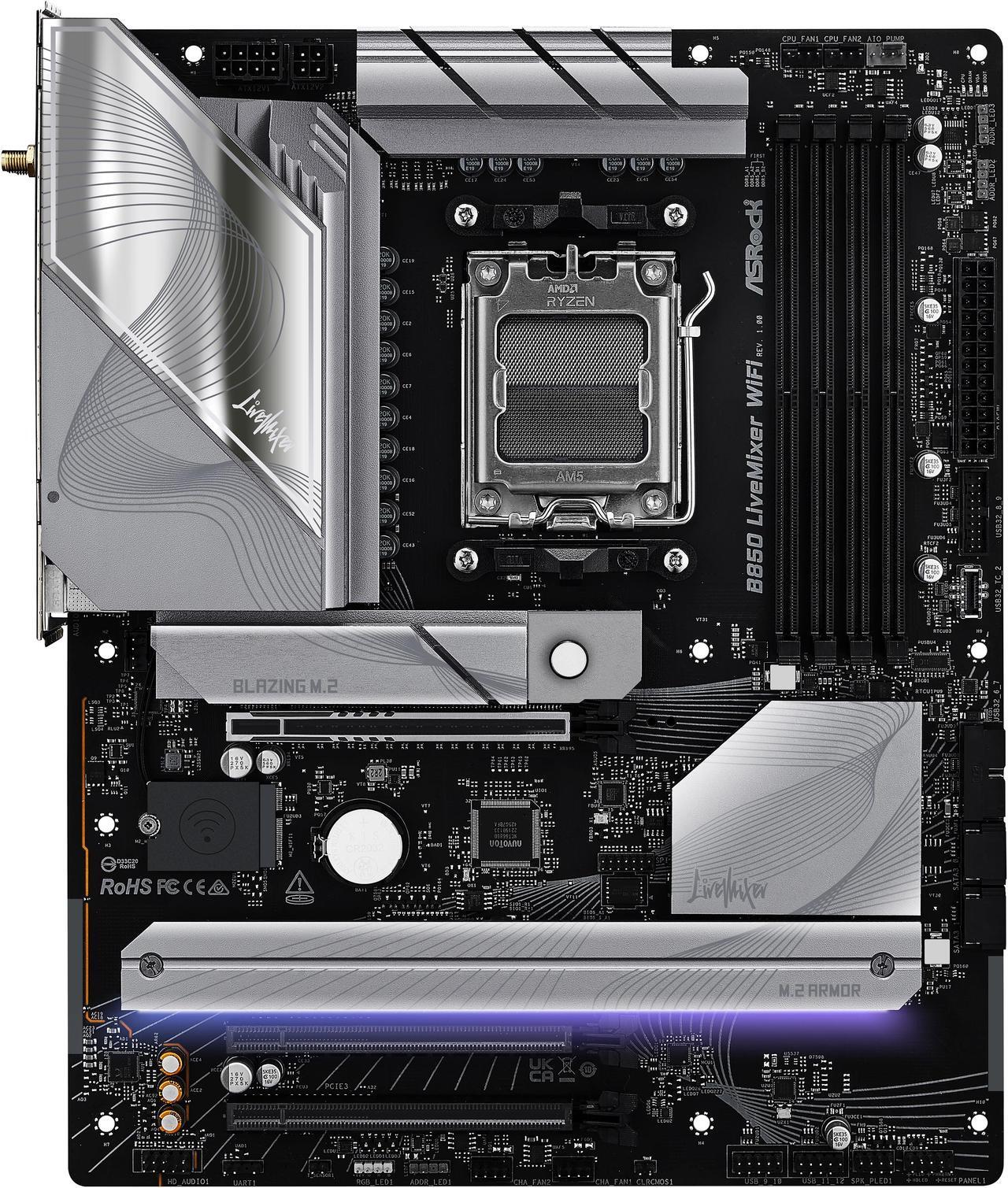

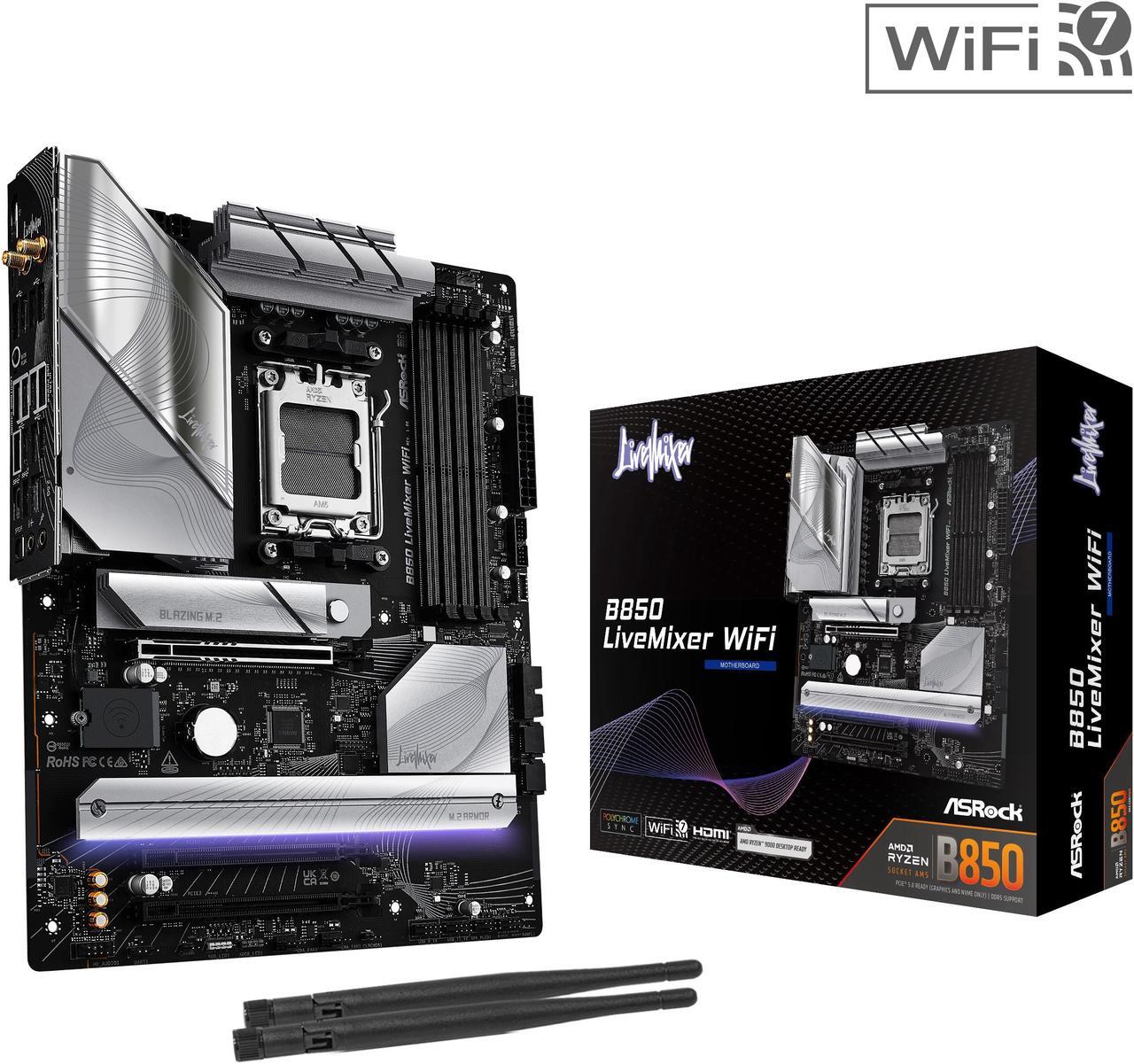

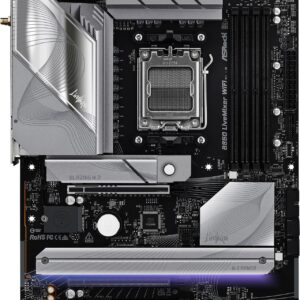

| The **ASRock B850 LiveMixer WiFi** is an ATX motherboard specifically designed for **content creators and streamers**, offering extensive connectivity and robust performance for the latest **AMD Ryzen™ 9000, 8000, and 7000 Series Processors** on the AM5 socket, utilizing the **AMD B850 chipset**.
It features a powerful **14+2+1 power phase design with 80A Dr.MOS**, ensuring stable power delivery for demanding workloads and supports **DDR5 memory up to 8000+ MT/s (OC)** across four DIMM slots. For graphics, it includes a **PCIe 5.0 x16 slot** and two additional PCIe 4.0 x16 slots (operating at x4 mode). Storage options include one **Blazing M.2 (PCIe Gen5x4)** and two **Hyper M.2 (PCIe Gen4x4)** slots, alongside two SATA 6Gb/s connectors. The board excels in connectivity with a **Realtek 2.5G LAN** and an integrated **802.11be Wi-Fi 7 module with Bluetooth 5.4**. The most notable feature is its abundant USB connectivity, including multiple USB 3.2 Gen2x2 (20Gbps) Type-C ports (one rear, one front header), numerous USB 3.2 Gen2/Gen1 ports, and eight rear USB 2.0 ports for auxiliary devices. Enhanced by Nahimic Audio, comprehensive cooling, and creator-friendly features like Auto Driver Installer and BIOS Flashback, the ASRock B850 LiveMixer WiFi provides a powerful and highly versatile platform for content creation and streaming setups. |
|
ASRock B850 LiveMixer WiFi: AM5, AMD B850, DDR5 8000+(OC), PCIe 5.0, Wi-Fi 7, 2.5GbE LAN ATX Motherboard
1,00 EGP
Shipping calculated at checkout.
Estimated delivery:21 days
